- Place of Origin:CN;GUA
- Brand Name:XIMI
- Model Number:801MA11
- Power:15V
- Camera:Other
- Kit Configuration::One to One video doorphone
- Size:28.2*17.8*10.3CM
- Answering Mode:Hands-free
- Display Screen Size(inch)::7
- Installation::Wall Mounting
- Waterproof: Yes
- Camera Sensor type:CMOS
- Communication Interface: Wired
- Connection Method:Wired
- IP Camera Interface:No

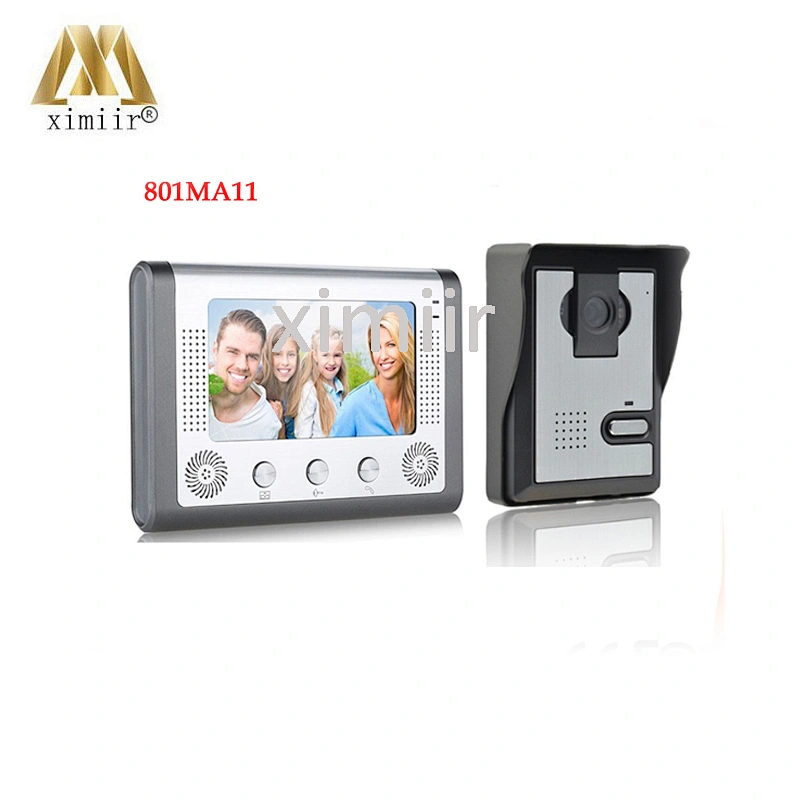

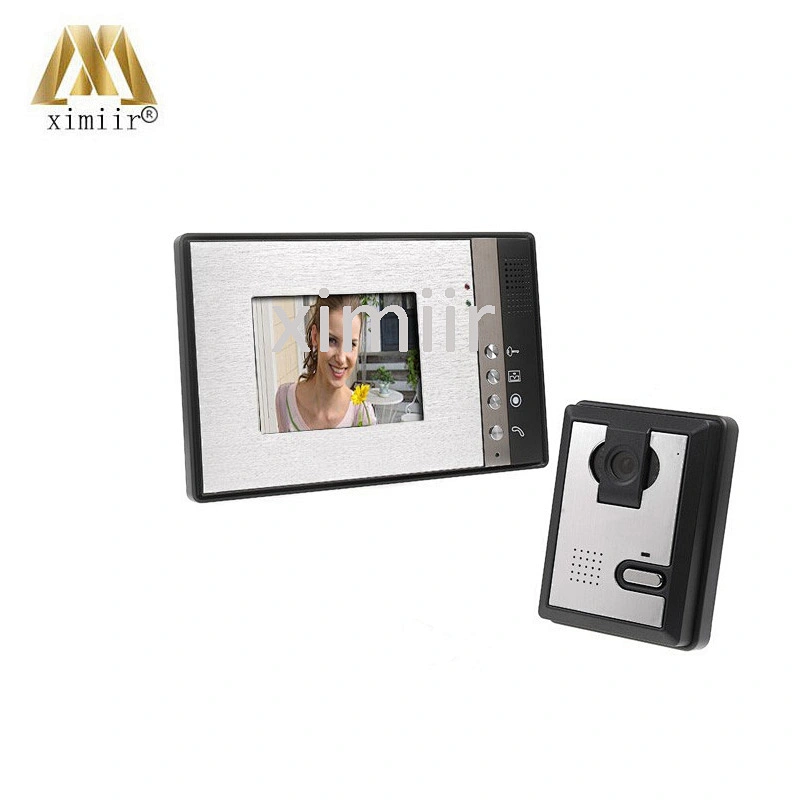

New video 801MA11 7 inch color wired apartment video door ip video door phone

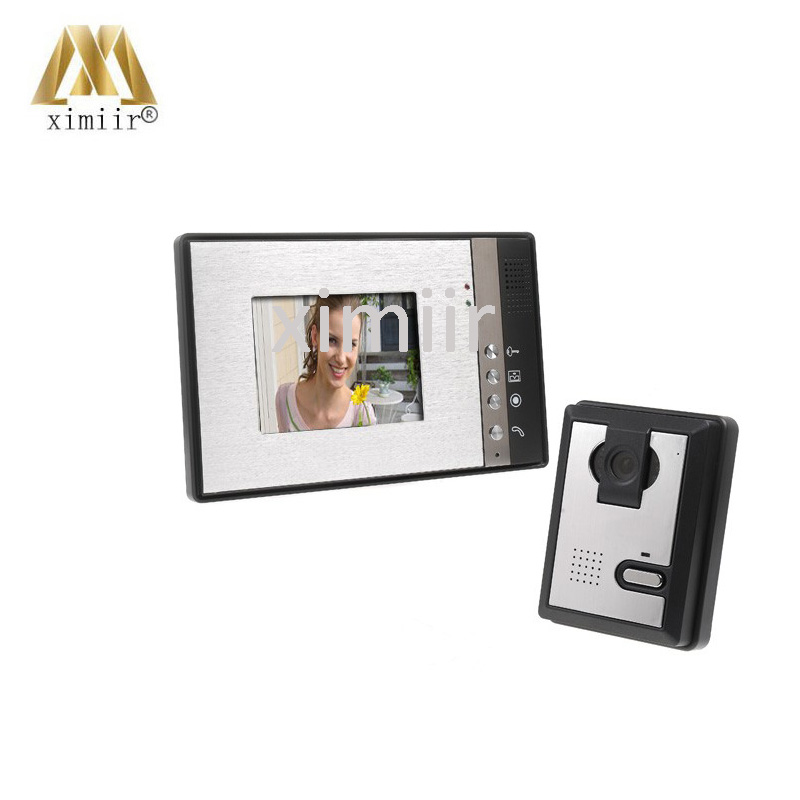

This stylish and modern video doorphone set is consisted of an outdoor doorbell and an indoor LCD panel. The outdoor unit serves as a doorbell with built-in camera to capture the scenes outside the door. Both the outdoor and indoor units have microphone and speaker to form a hands-free intercom systembetween the two sides of the door. The indoor unit equips an extra-large 7’’ color TFT LCD so that indoor people can see the outside with high image quality and visibility. The indoor people can talk to visitors andopen electric door lock remotely by simply pressing the several keys.

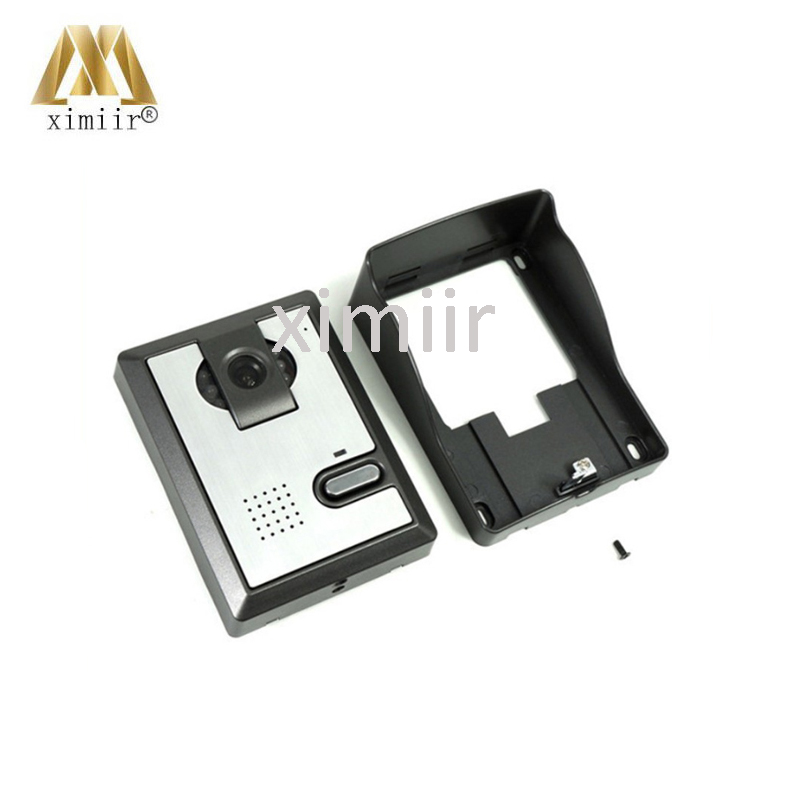

The IR LEDs of the outdoor unit will turn on automatically in darkness so that indoor people can see the visitors clearly all the times. The outdoor unit is made of durable aluminum alloy and come with a protective shell so that it is rain and corrosion proof. The indoor unit is slim and back-mounted on wall to save your home space. And you can watch the outside through the LCD whenever you want, even without doorbell alerts.
With this doorphone set, you can find out who is visiting and unlock your door without walking to the door. You may communicate with visitors first before letting them in. It can make your life easier and at the same time keep your home entrance under control. You will find it very useful and convenient especially with big houses, villas, apartments or offices.
Aluminum alloy panel of indoor unit, fashionable and luxury.Little rain and oxidation-proof for the durable aluminum alloy outdoor unit.7"color TFT LCD without radiation, low power consumption and high definition.IR Camera with Night Vision. One outdoor unit can also call up to six indoor unitsElectric lock-control function.Handsfree intercom.Mute indoor intercom function.Monitoring the outside of the door.12 kinds of door bell rings.Volume, brightness and contrast adjustable.

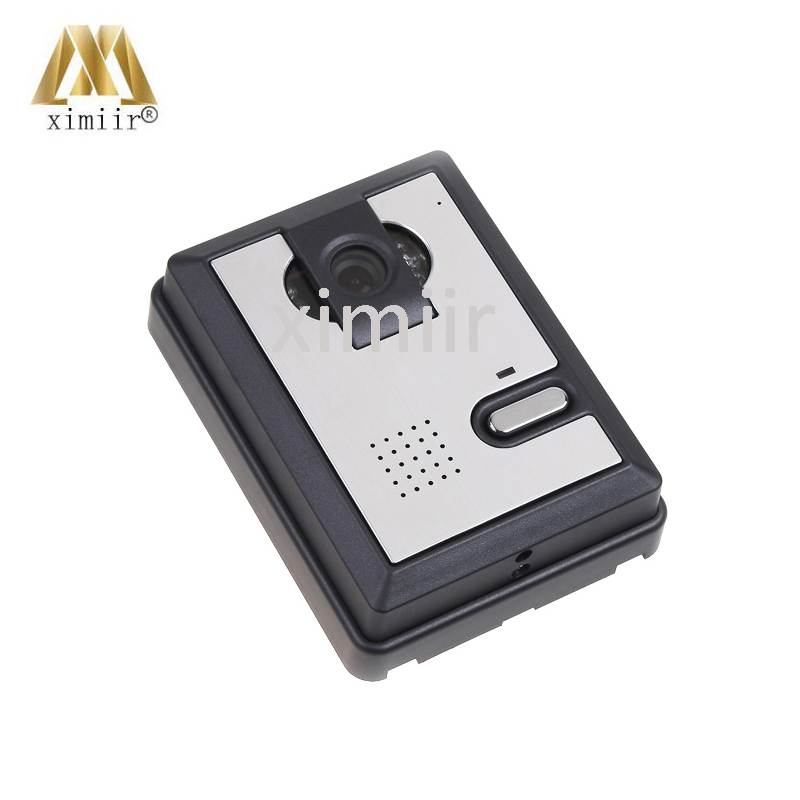

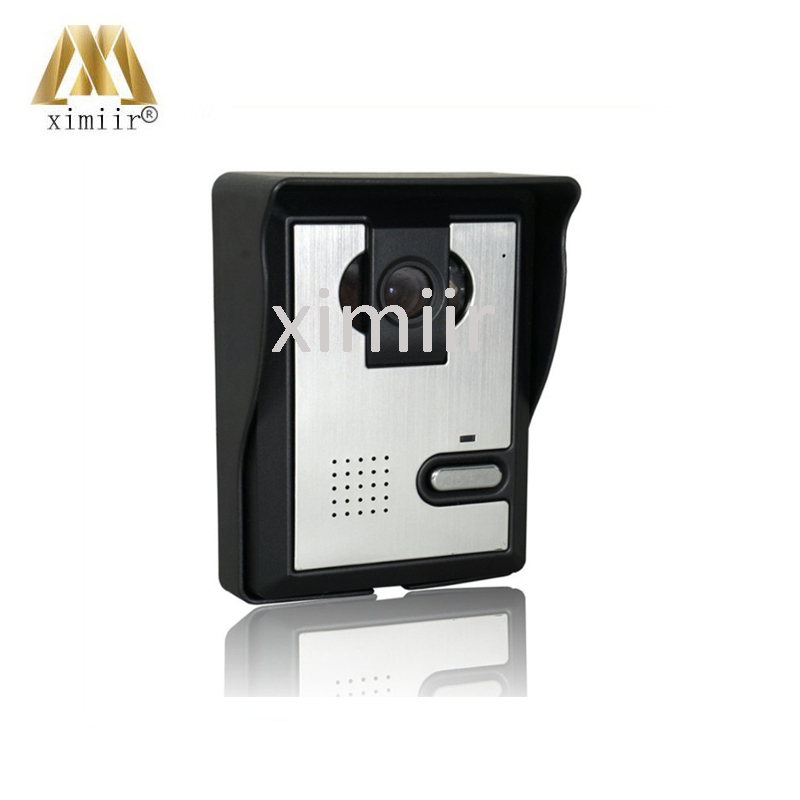

Outdoor Camera
1.Camera: 1/4"CMOS, 420TVL, 6pcs IR cameras
2.Min. Illumination: 0.5Lux
3.Video output: 1Vp-p/75Ω
4.Adapter input: AC100~240V, 50/60Hz
5.Adapter output: DC15V/1.2A
6.Installation: Wall mounted
7.Material: ABS plastic & aluminum alloy

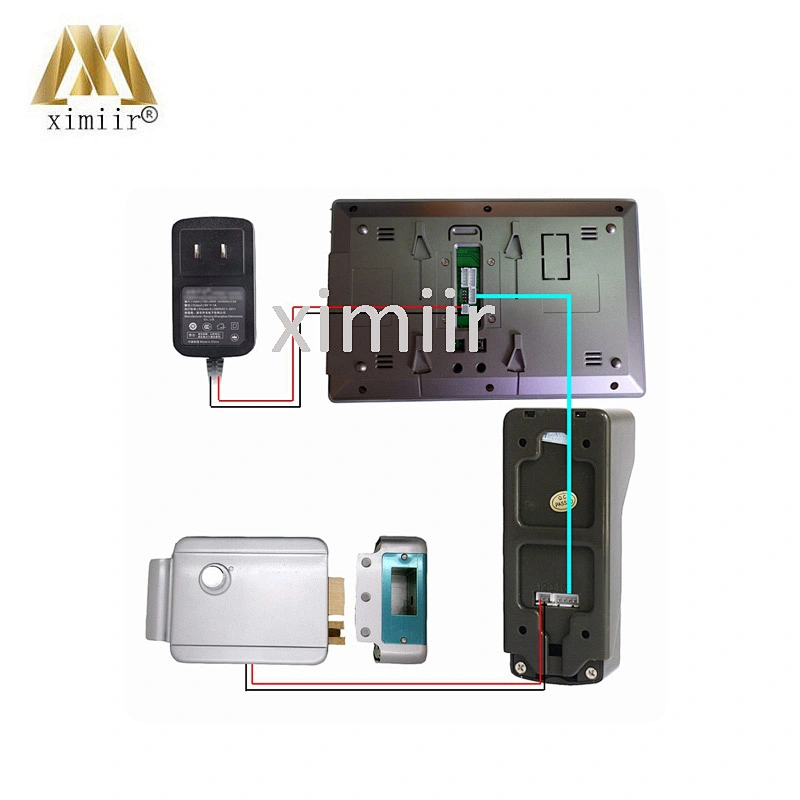

8.Wires for Lock-camera connection.
9. Working Temperature: -20 degree to 50 degree

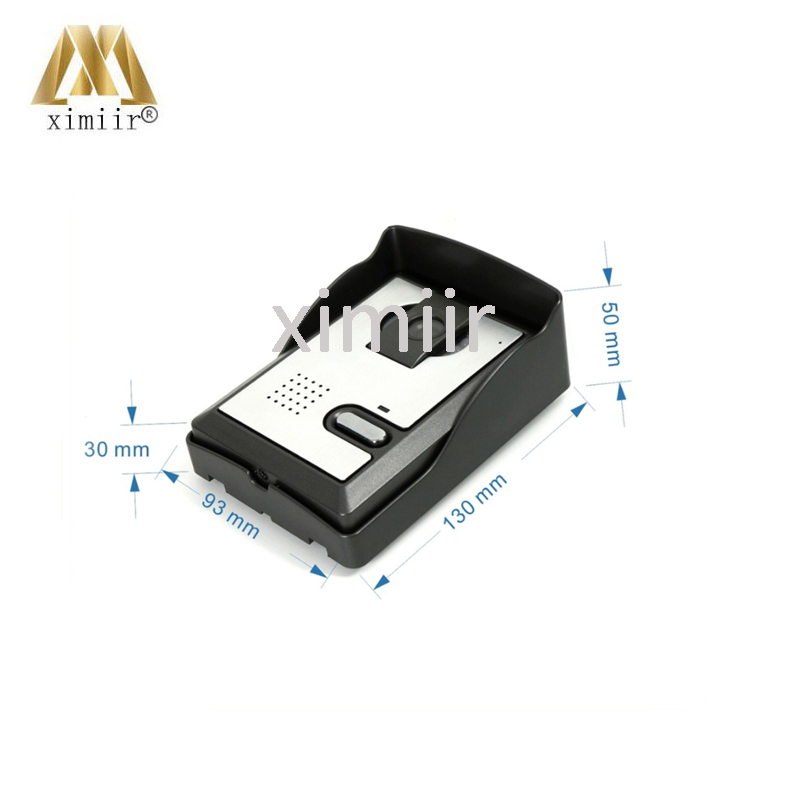

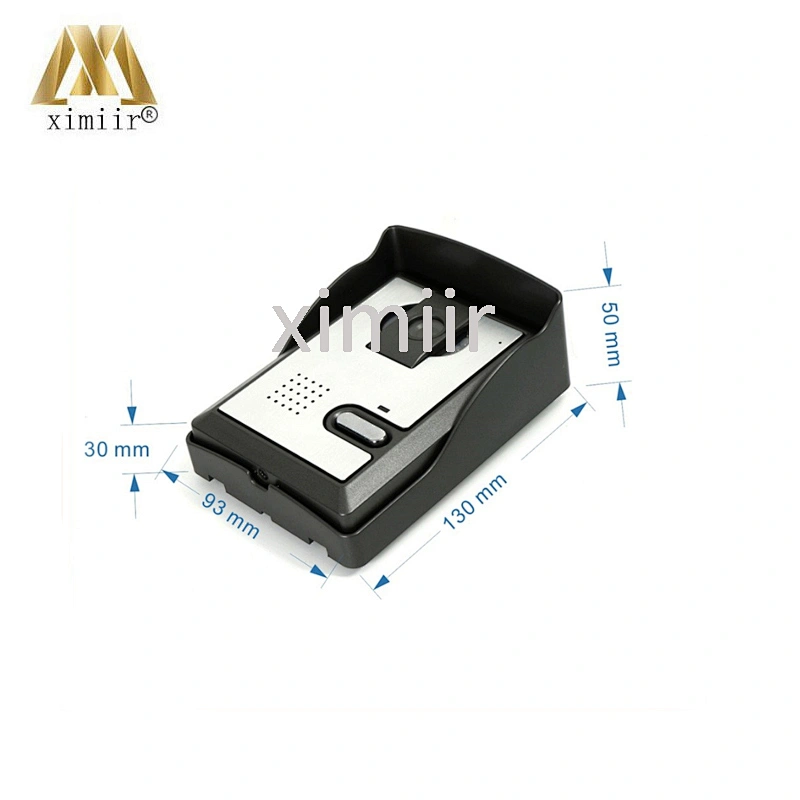

10.Dimensions: 13 * 9.3 * 5cm
11. Weight: 430g

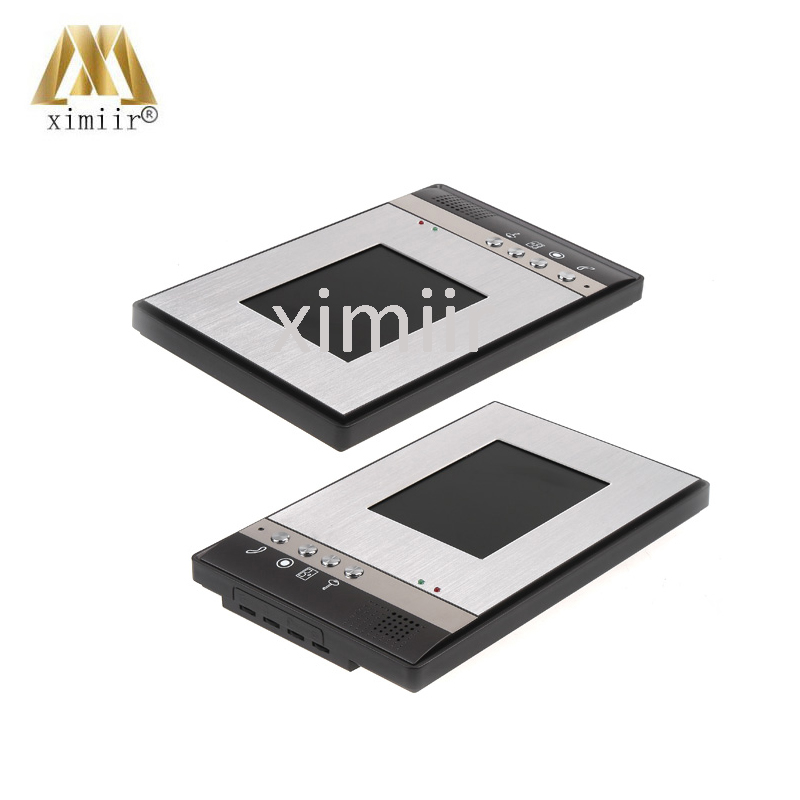

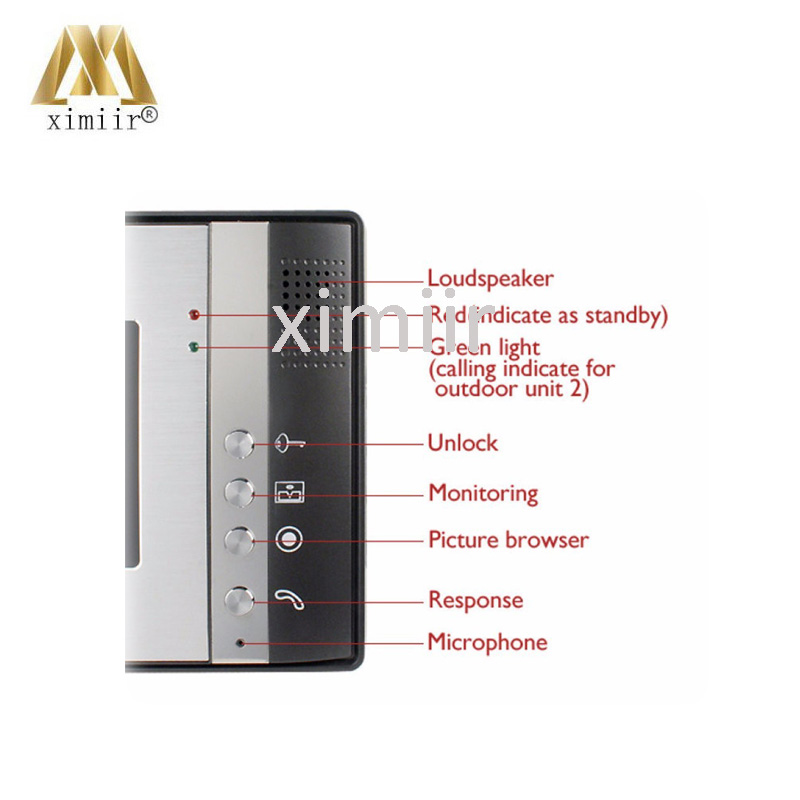

Monitor
1.Screen: 7"TFT/LCD
2.Power source: AC100V-240V / 50-60Hz
3.Effective pixels: 480 * 234 * 30
4.Power: ≤14W (operation), ≤2W (standby)
5.Wiring: 4 wires

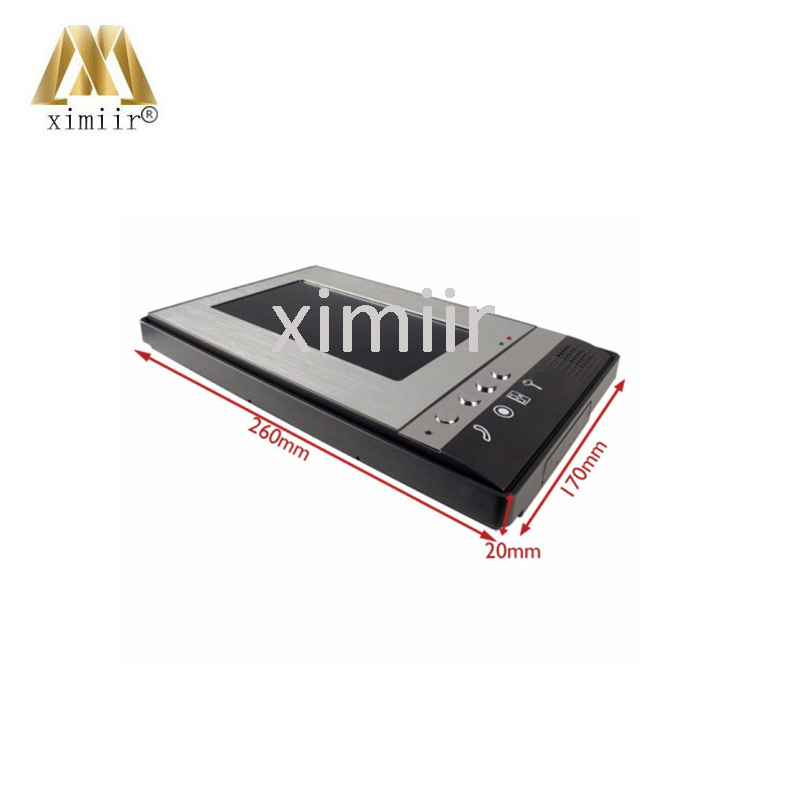

6.Dimensions: 26 * 16.5 * 3cm
7. Package size: 28 * 17 * 10cm

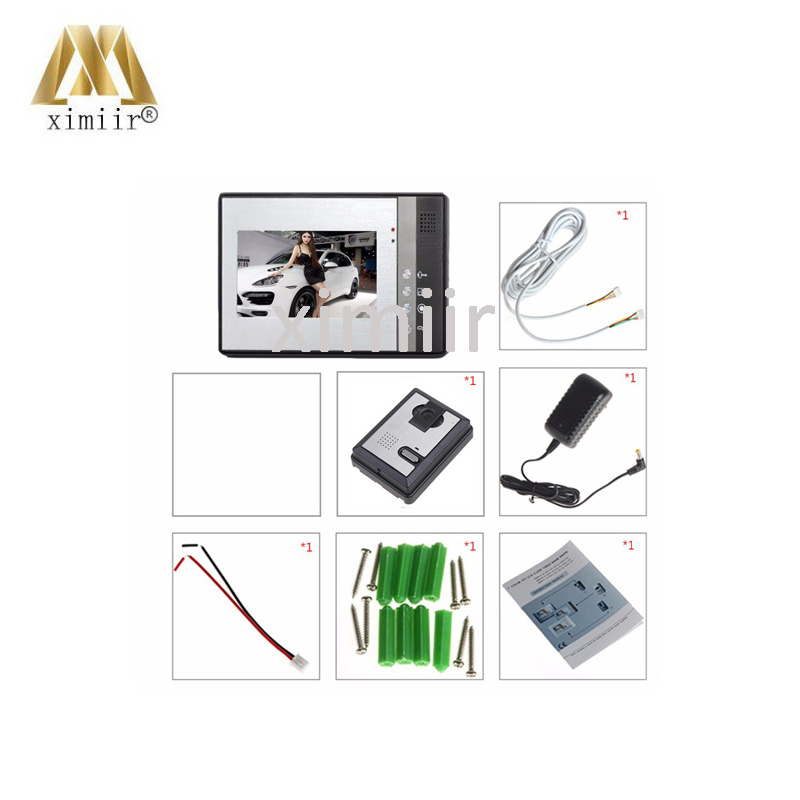

Package includes:
1 x Outdoor Unit (Camera)
1 x Indoor Unit (Monitor)
1 x DC15V Adapter
1 x 5m cable
1 x Screws and connector terminals for installation
