Place of Origin:CN;GUA
Brand Name:XIMI
Model Number:801FGIDS11
Power:DC15V
Display Screen Size(inch):7
Type:Intercom system
Kit Configuration:One to One video doorphone
Display Screen Type:Color
Camera:Color
Resolution:420TVLine
Camera Sensor type:CMOS
Doorbell:Yes
Installation:Wall Mounting

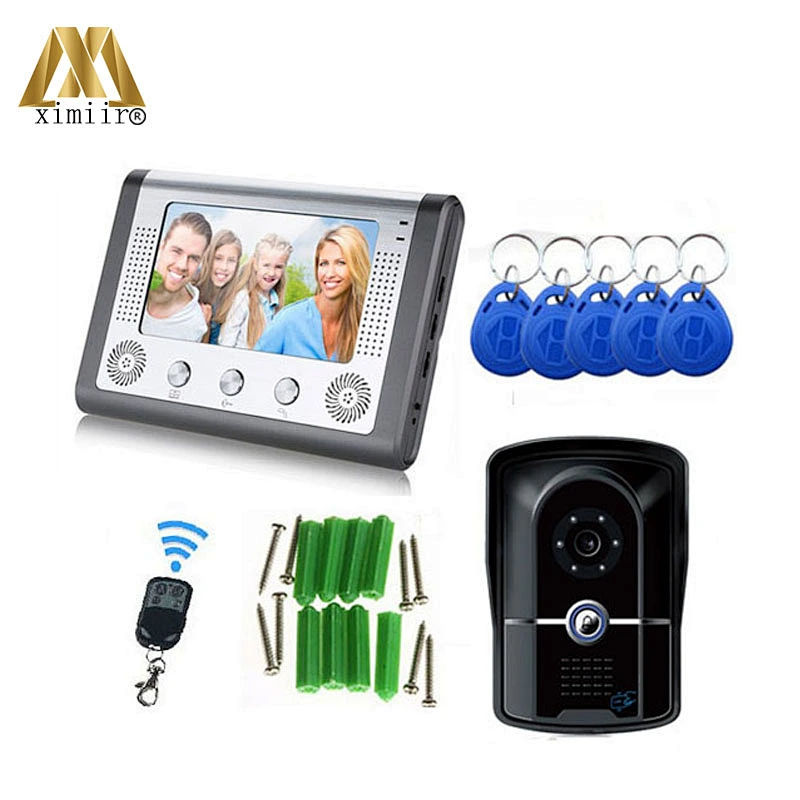

For Access Control System 801FGIDS 11 Wired 7"Tft Lcd Screen Doorbell With Rfid Keyfobs Remote Comtrol Video Door Phone Intercom

Product Description

Color CMOS 700TVL Camera with high resolution;
Camera with 6 IR LED. Auto light-on led for night view;
Keypad password access control;
RFID keyfob access control;
Touch sensor button on the panel;
Rainy cover or full flush mounting;
Supports 200 ID cards;
Supports maximum 3 remote controllers .
IP55 protection rate;

7"TFT digital color LCD;
Touch sensor button on the panel;

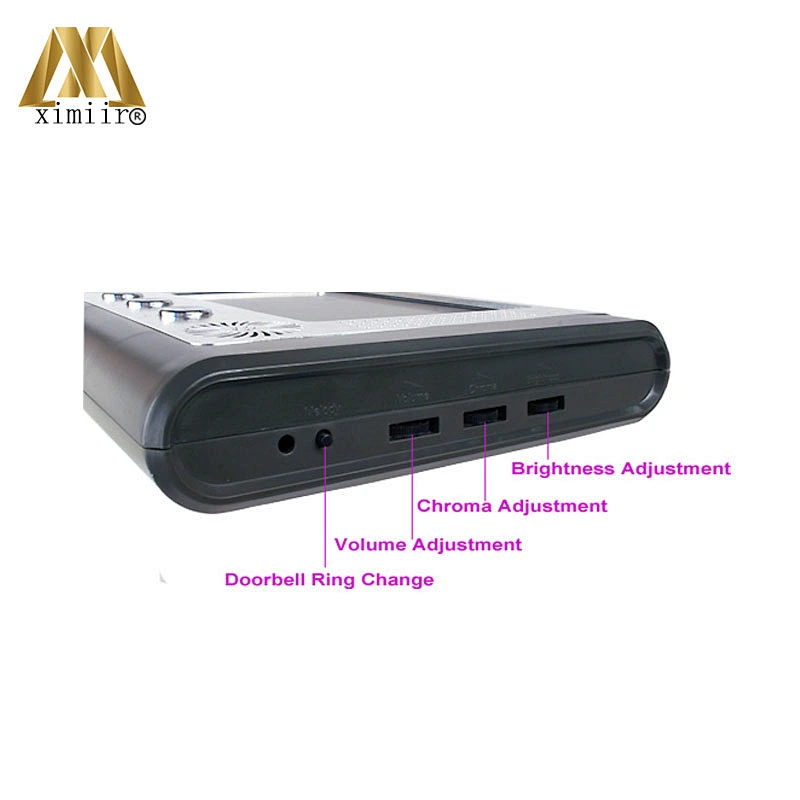

Ringing volume can be adjusted;
16 melodies for ringing selection;
Show outdoor image manually.
Dual-way intercom;
Monitor unlock control;

For Access Control System 801Fgids11 Wired 7

Outdoor Camera

1.Camera: 1/4"CMOS
2.Min. Illumination: 0.5Lux
3.Video output: 1Vp-p/75Ω
4.Adapter input: AC100~240V, 50/60Hz
5.Adapter output: DC15V/1.2A
6.Installation: Wall mounted
7.Material: ABS plastic & aluminum alloy
8.Wires for Lock-camera connection.
9. Working Temperature: -20 degree to 50 degree

10.Come with RFID card reader, support 200 users.

11.Dimensions: 16.8 * 11.2 * 6.6cm

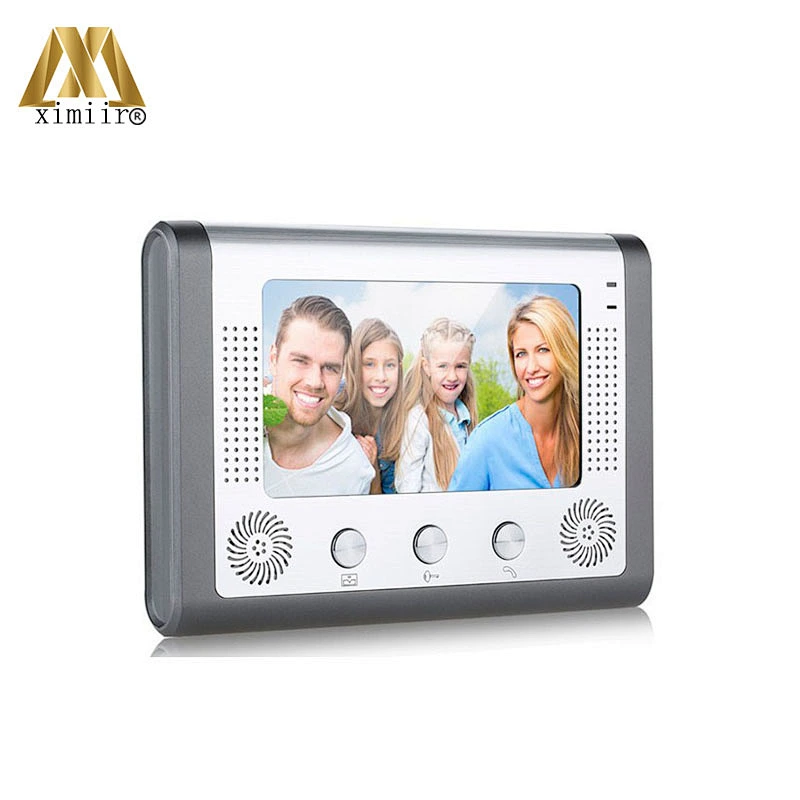

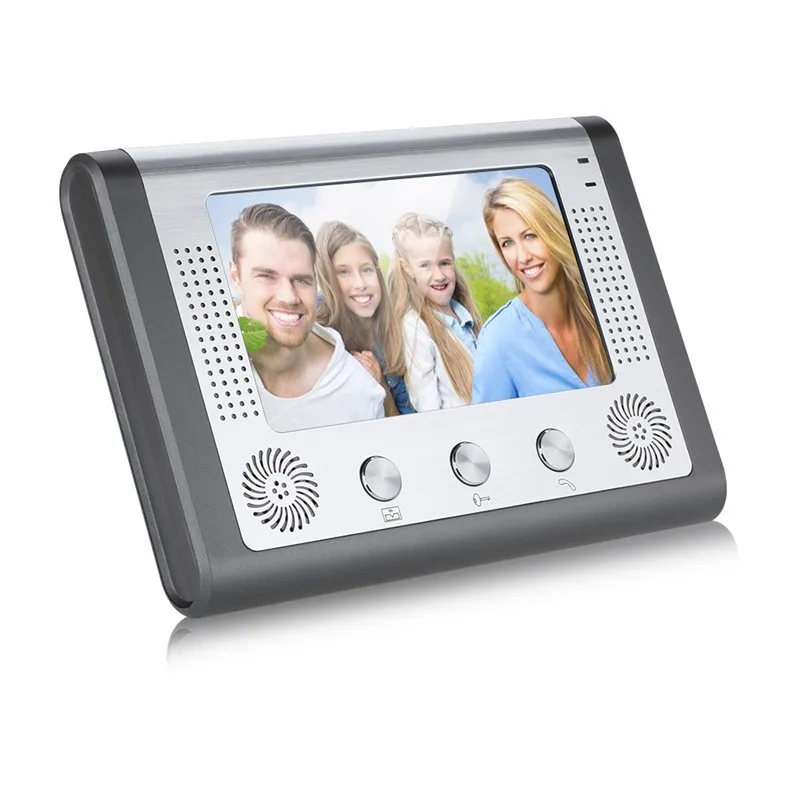

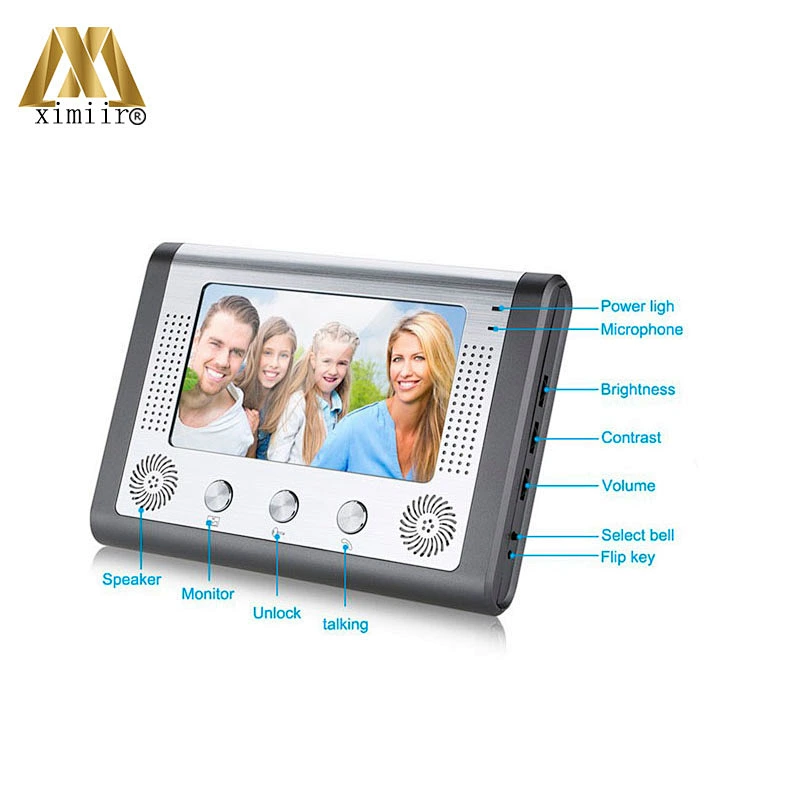

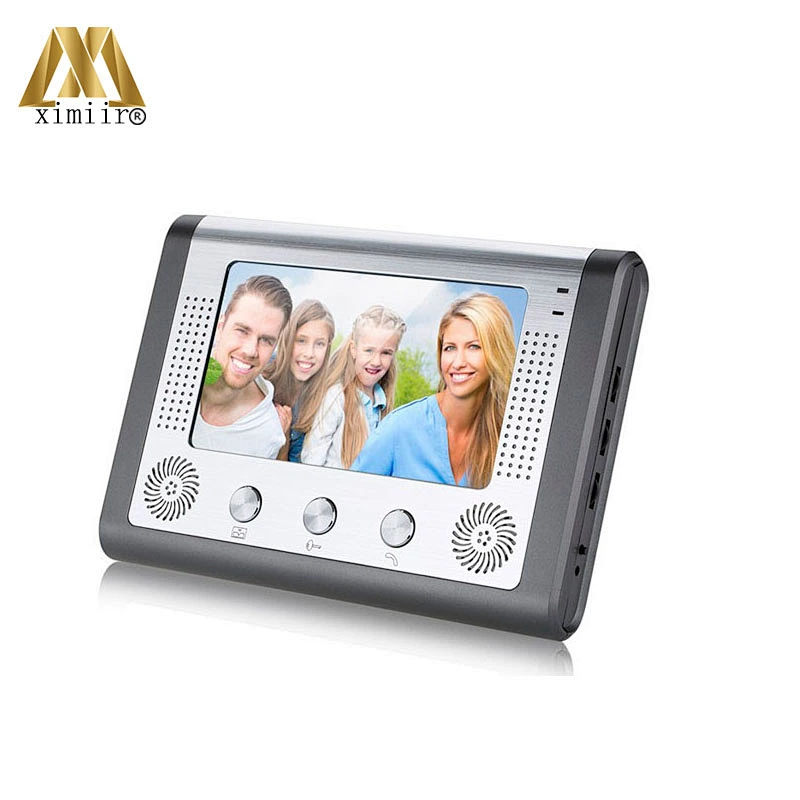

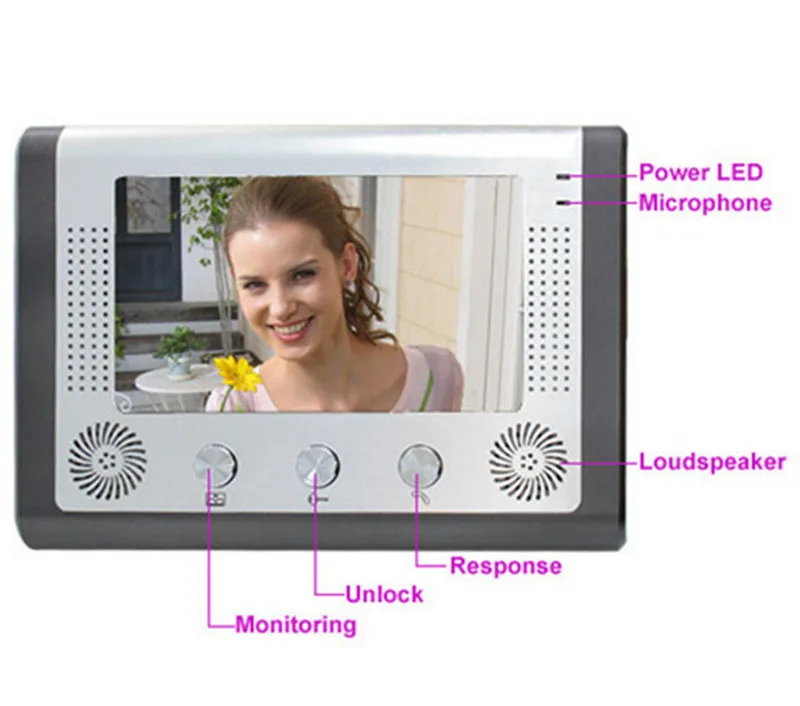

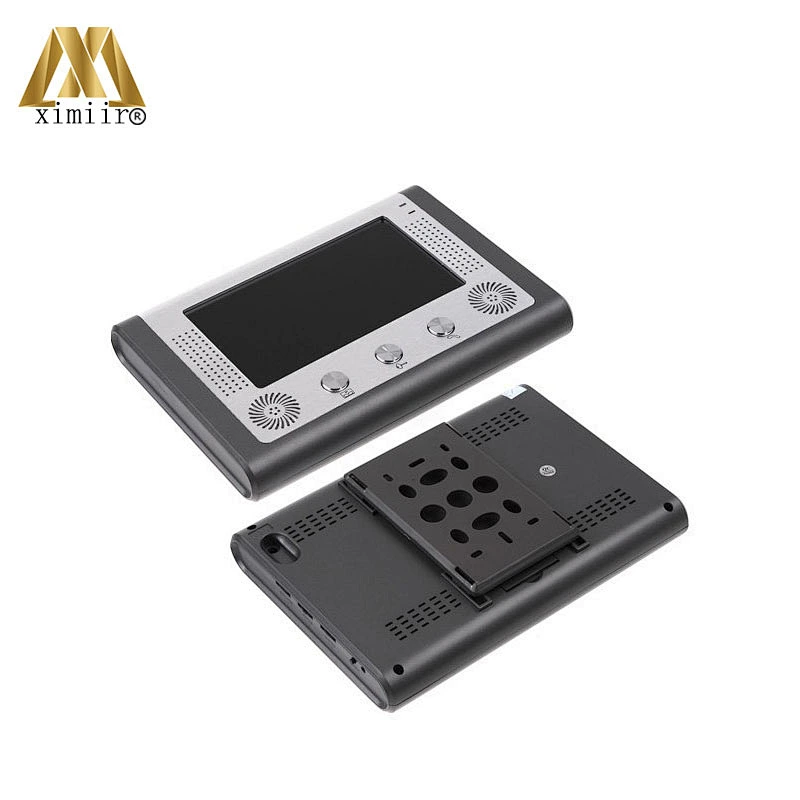

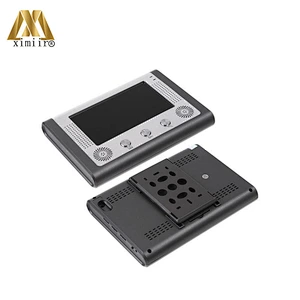

Monitor

Screen: 7"TFT LCD (16:9 display)

Resolution: 960 * 480

Power supplied by: power adapter

Power adapter: input: AC 100-240V 50/60Hz output: DC 15V 2000mA

Adapter type: US EU AU UK plug

Adapter cable length: 1.45m/ 4.75ft

Consumption: working state: 8W, standby state: 0.5W

Call duration time: approx. 120 seconds

Monitor duration time: approx. 60 seconds
