- Place of Origin:CN;GUA
- Brand Name:XIMI
- Model Number:801MJID11
- Camera:CMOS
- Communication Interface:Wired
- Samrt Home Interface:No
- Power:DC15V
- Resolution:420TVLine
- Installation:Wall Mounting
- Kit Configuration:One to One video doorphone
- Connection Method:Wired
- Waterproof:Yes
- Size::28.2*17.8*10.3CM

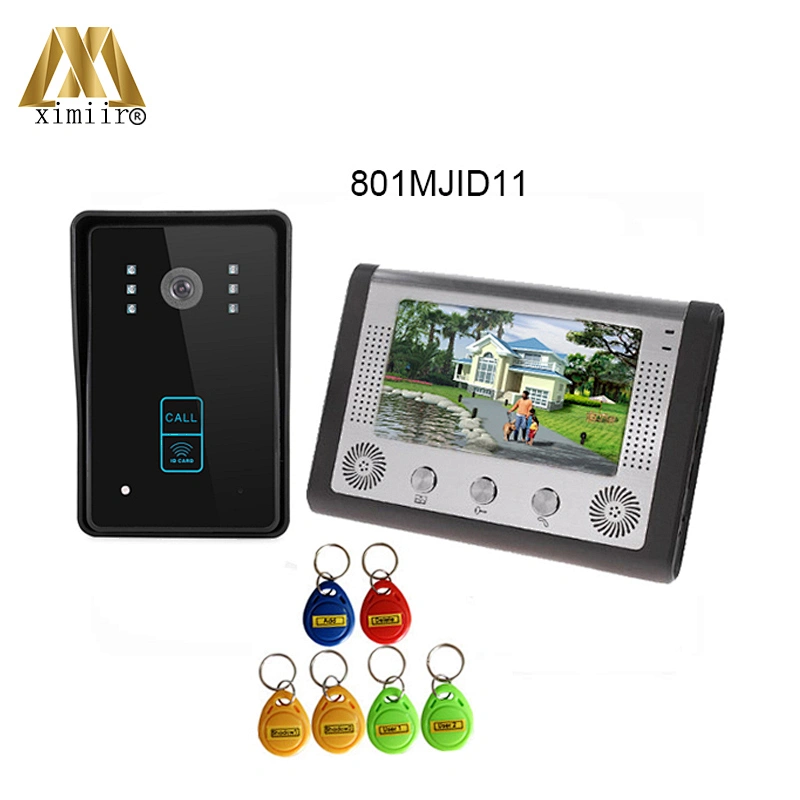

This stylish and modern video doorphone set is consisted of an outdoor doorbell and an indoor LCD panel. The outdoor unit serves as a doorbell with built-in camera to capture the scenes outside the door. Both the outdoor and indoor units have microphone and speaker to form a hands-free intercom systembetween the two sides of the door. The indoor unit equips an extra-large 7’’ color TFT LCD so that indoor people can see the outside with high image quality and visibility. The indoor people can talk to visitors andopen electric door lock remotely by simply pressing the several keys.
The IR LEDs of the outdoor unit will turn on automatically in darkness so that indoor people can see the visitors clearly all the times. The outdoor unit is made of durable aluminum alloy and come with a protective shell so that it is rain and corrosion proof. The indoor unit is slim and back-mounted on wall to save your home space. And you can watch the outside through the LCD whenever you want, even without doorbell alerts.
With this doorphone set, you can find out who is visiting and unlock your door without walking to the door. You may communicate with visitors first before letting them in. It can make your life easier and at the same time keep your home entrance under control. You will find it very useful and convenient especially with big houses, villas, apartments or offices.
Color CMOS 700TVL Camera with high resolution;
Camera with 6 IR LED. Auto light-on led for night view;
Keypad password access control;
RFID keyfob access control;Touch sensor button on the panel;
Rainy cover or full flush mounting;
Supports 1000 ID cards;Supports maximum 3 remote controllers .
IP55 protection rate;
7"TFT digital color LCD;

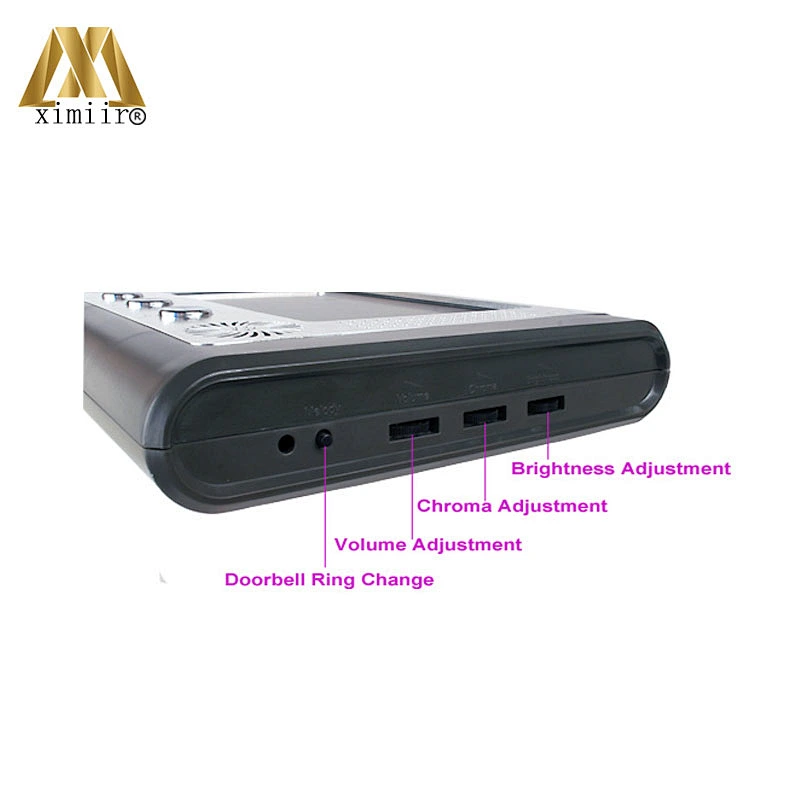

Touch sensor button on the panel;Ringing volume can be adjusted;
16 melodies for ringing selection;
Show outdoor image manually.
Dual-way intercom;
Monitor unlock control

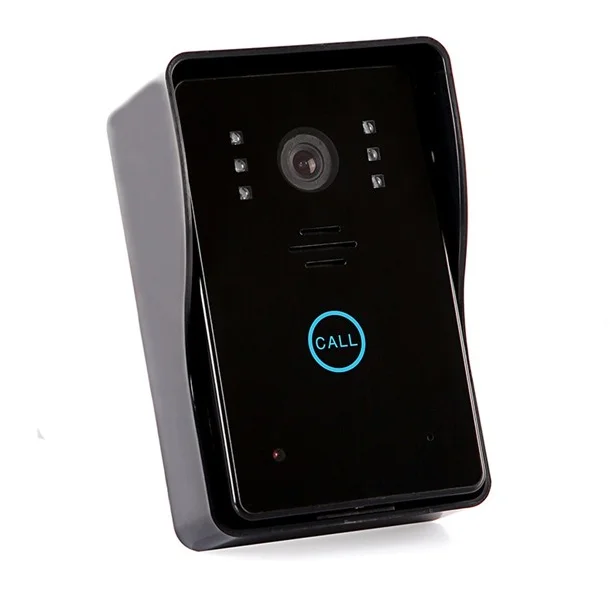

Outdoor Camera
1.Camera: 1/4"CMOS, 700TVL, 6pcs IR cameras
2.Min. Illumination: 0.5Lux
3.Video output: 1Vp-p/75Ω
4.Adapter input: AC100~240V, 50/60Hz
5.Adapter output: DC15V/1.2A
6.Installation: Wall mounted
7.Material: ABS plastic & aluminum alloy
8.Wires for Lock-camera connection.
9.Working Temperature: -20 degree to 50 degree
10.Come with RFID card reader, support 1000 users.

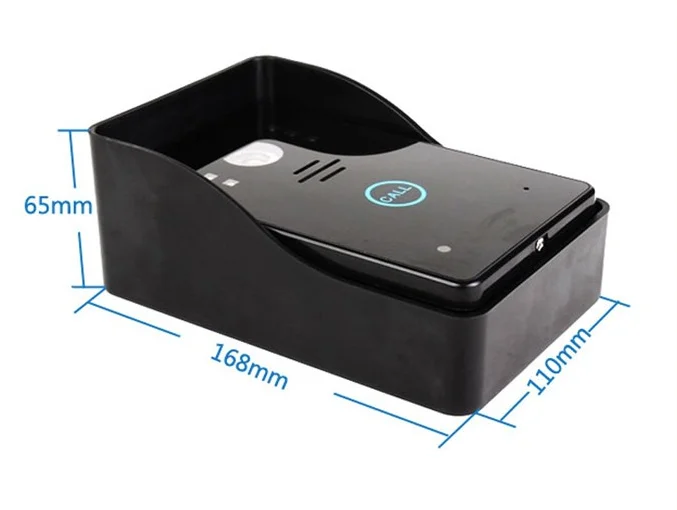

10.Dimensions: 16.8 * 11.2 * 6.6cm
11. Weight: 630g

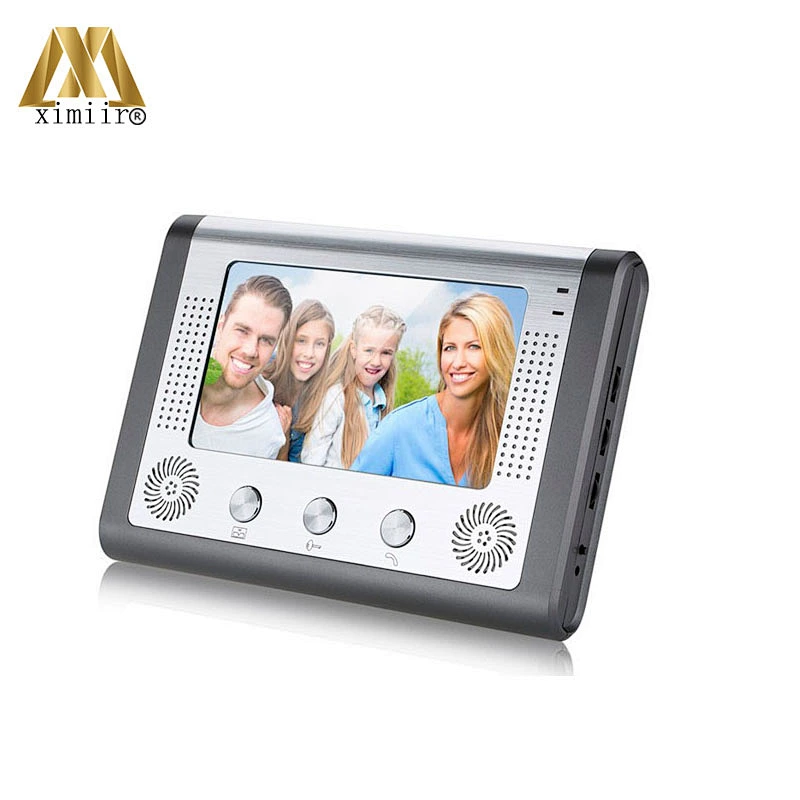

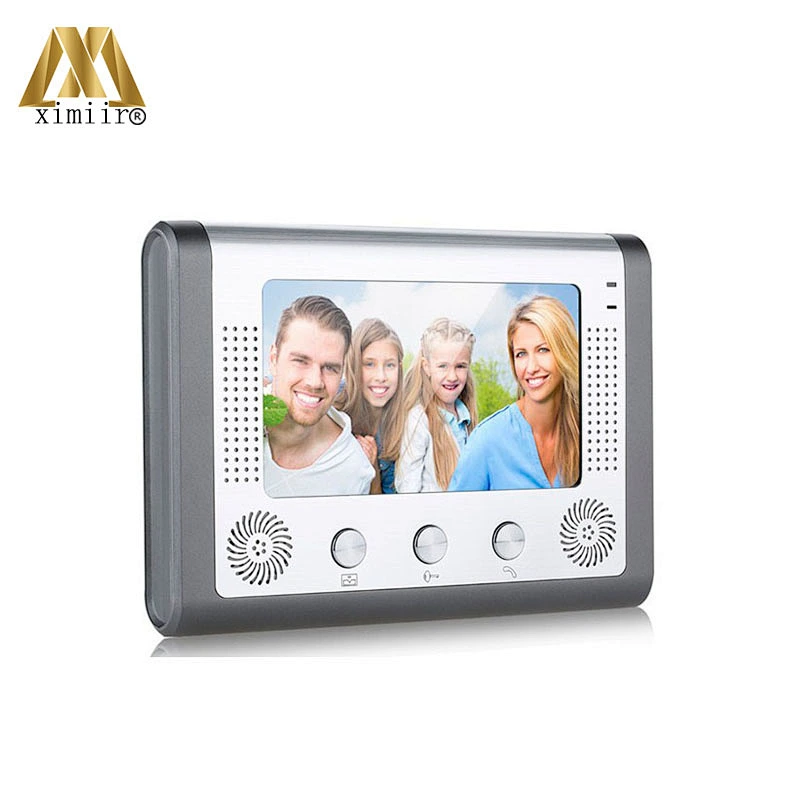

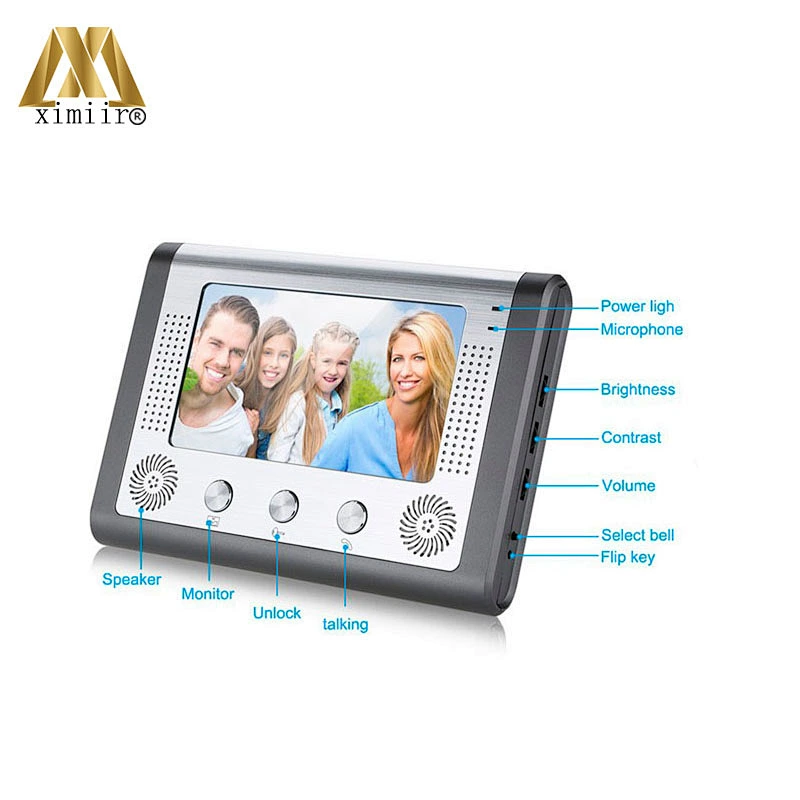

Monitor
1.Screen: 7"TFT/LCD
2.Power source: AC100V-240V / 50-60Hz
3.Effective pixels: 480 * 234 * 30
4.Power: ≤14W (operation), ≤2W (standby)
5.Wiring: 4 wires
6.Dimensions: 26 * 16.5 * 3cm
7. Package size: 28 * 17 * 10cm
Package includes:
1 x Outdoor Unit (Camera)
1 x Indoor Unit (Monitor)
1 x DC15V Adapter
1 x 5m cable
1 x Screws and connector terminals for installation
1 x User Manual
