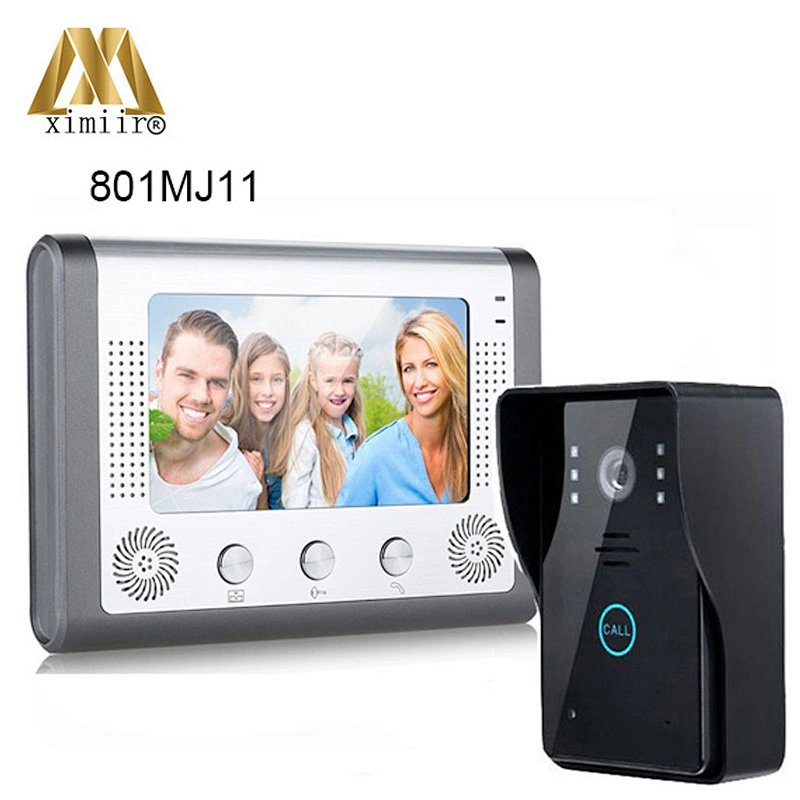

Outdoor Camera
1.Camera: 1/4"CMOS, 700TVL, 6pcs IR cameras
2.Min. Illumination: 0.5Lux
3.Video output: 1Vp-p/75Ω
4.Adapter input: AC100~240V, 50/60Hz
5.Adapter output: DC15V/1.2A
6.Installation: Wall mounted
7.Material: ABS plastic & aluminum alloy
8.Wires for Lock-camera connection.
9. Working Temperature: -20 degree to 50 degree
10.Dimensions: 16.8 * 11.2 * 6.6cm
11. Weight: 630g

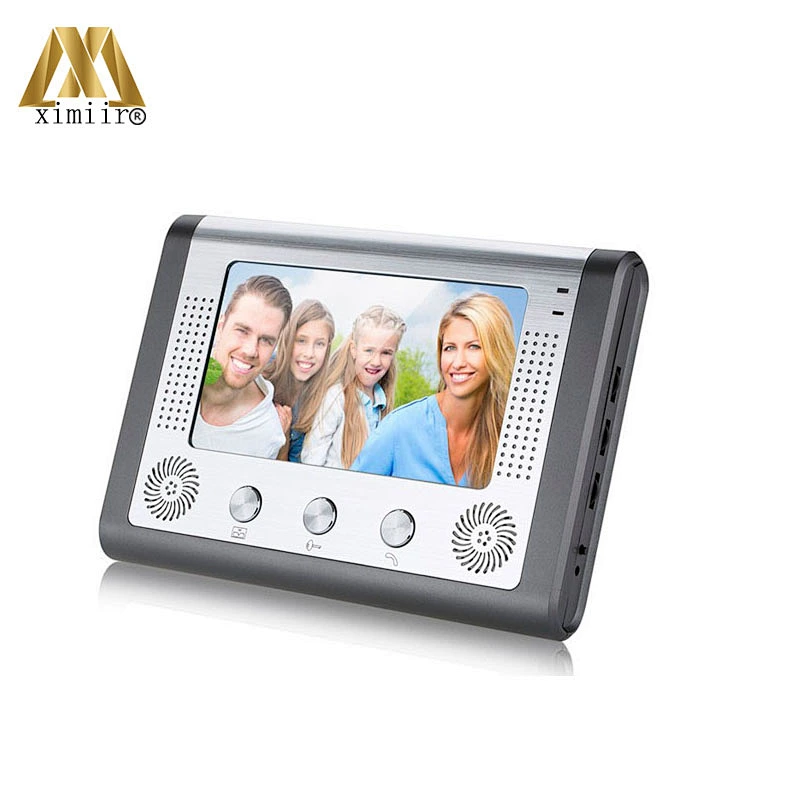

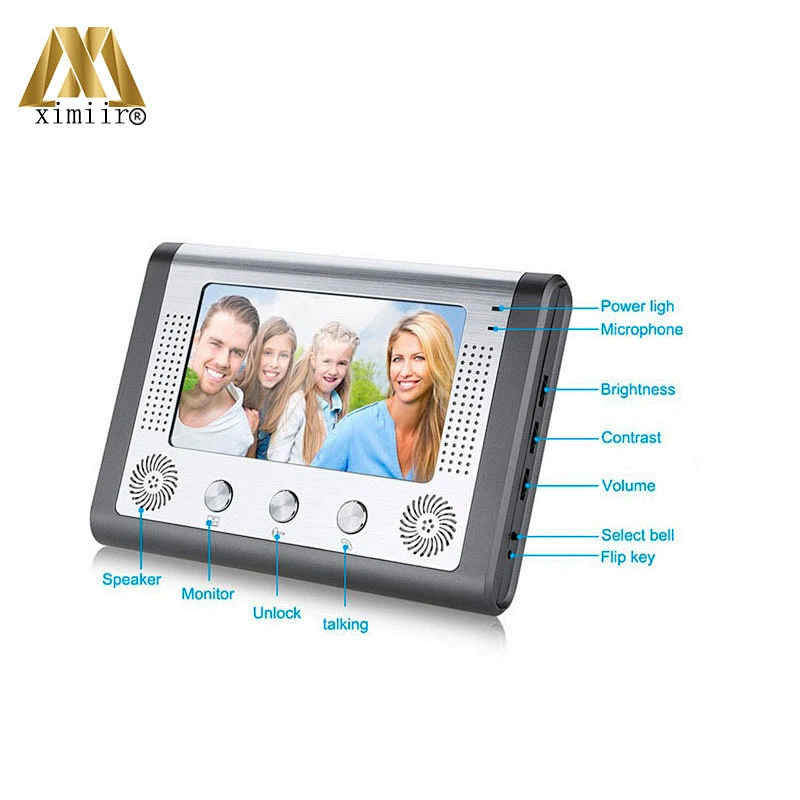

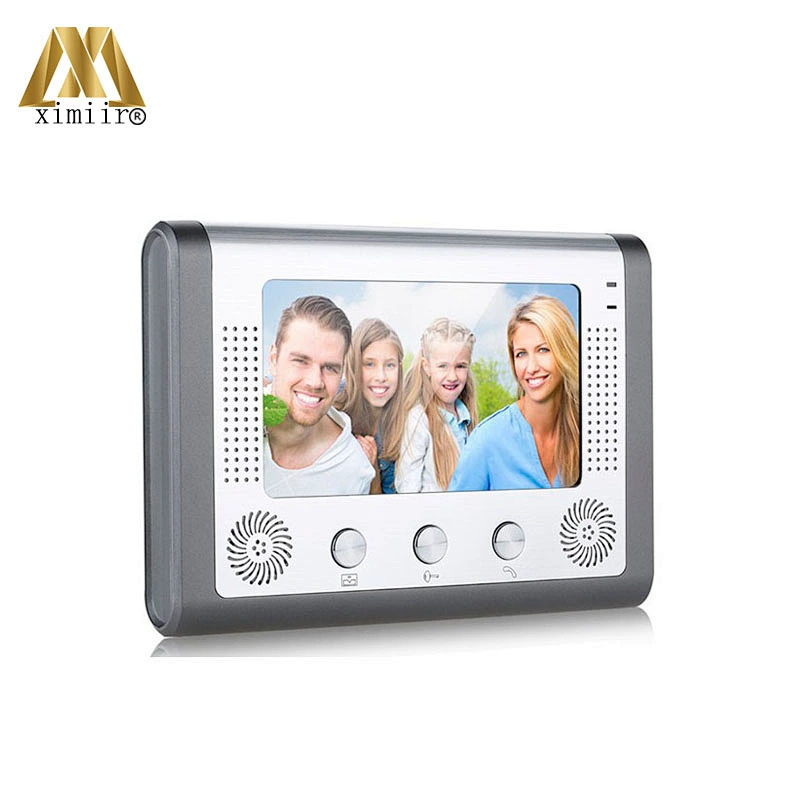

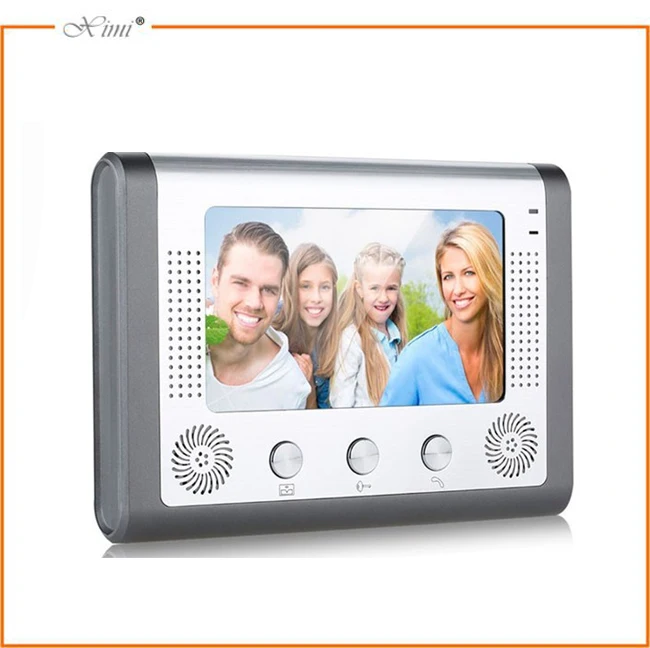

Monitor
1.Screen: 7"TFT/LCD
2.Power source: AC100V-240V / 50-60Hz
3.Effective pixels: 480 * 234 * 30
4.Power: ≤14W (operation), ≤2W (standby)
5.Wiring: 4 wires
6.Dimensions: 26 * 16.5 * 3cm
7. Package size: 28 * 17 * 10cm
Package includes:
1 x Outdoor Unit (Camera)
1 x Indoor Unit (Monitor)
1x DC15V Adapter
1 x 5m cable
1 x Screws and connector terminals for installation
1 x User Manual
