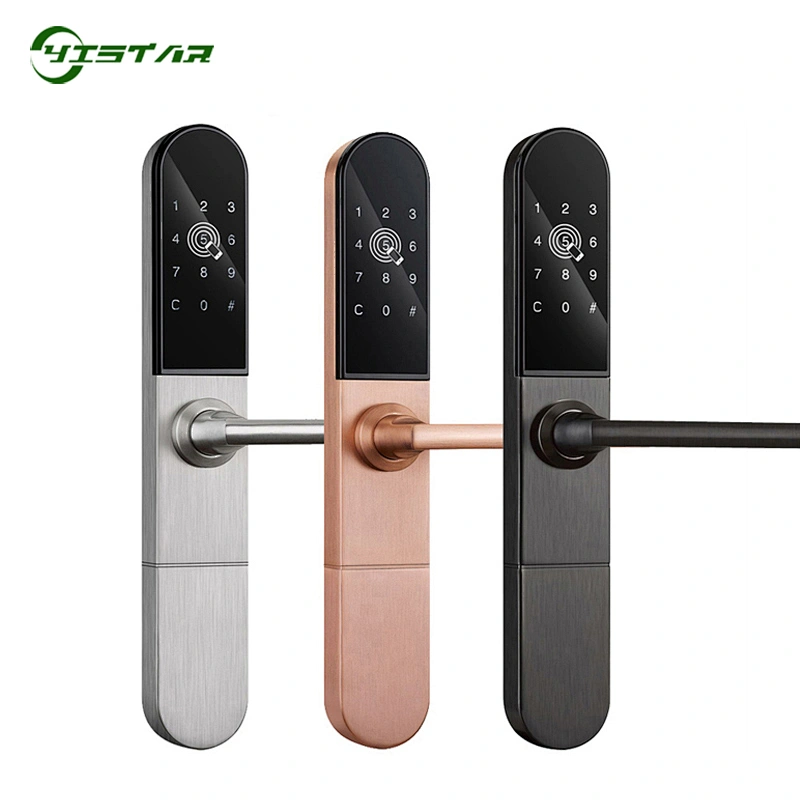

Electronic Smart Card Door Lock Digital Aluminum Door Lock For Hotel/ Apartments Sliding Door YS-C878 from China Manufacturer

Material:Aluminum

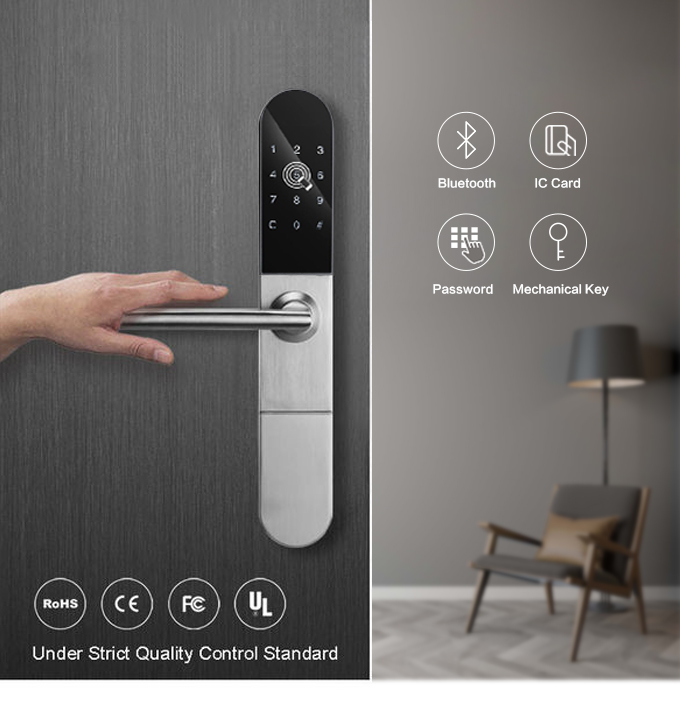

Lock type:RFID Card/Mechanical key
Card capacity:100

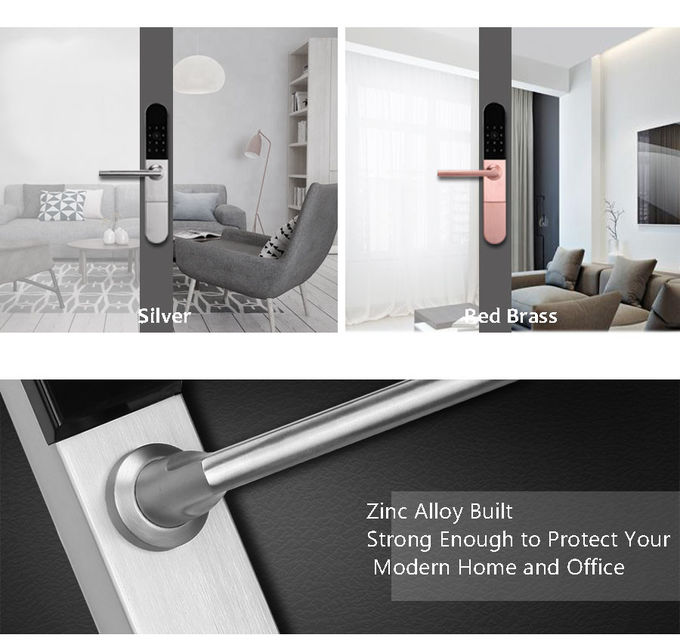

Color:Black/Silver/Red bronze
Power supply:4-6V (4pcs 5th battery)
Emergency Power USB:Support
Suitable Thickness:30-55mm

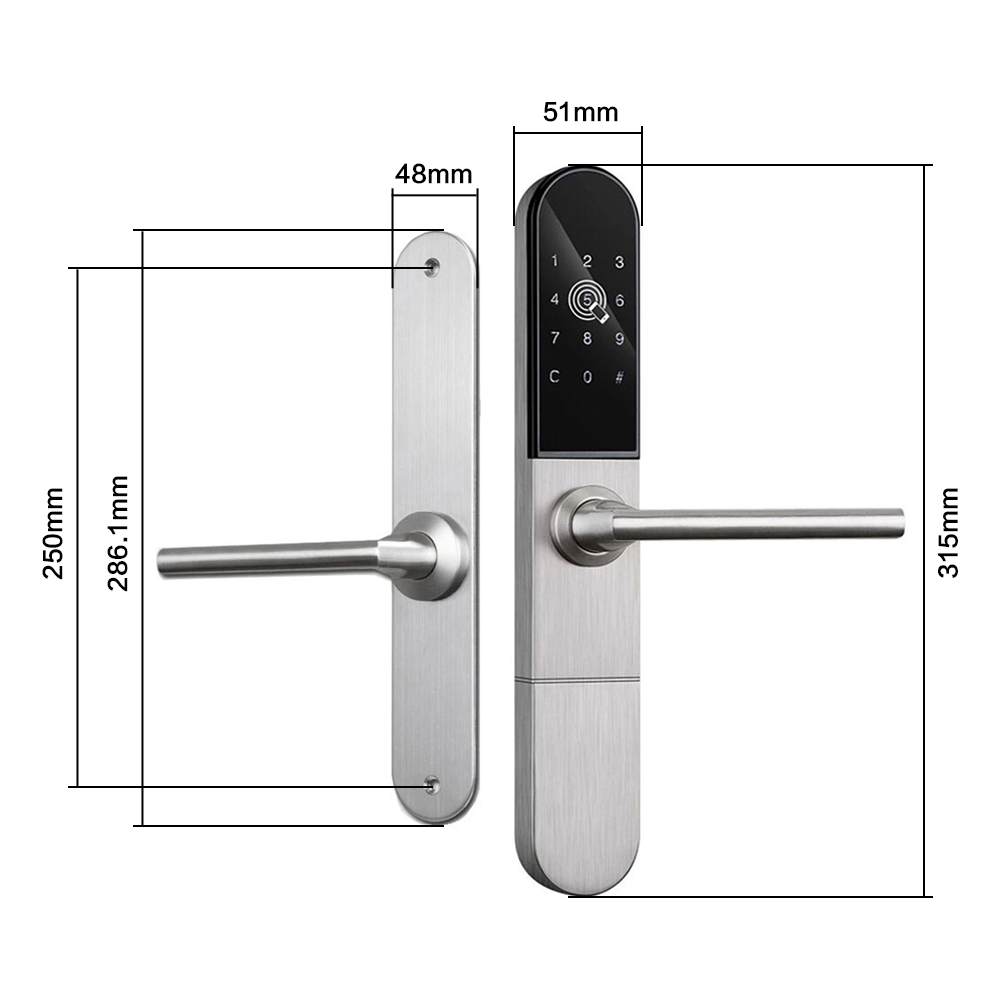

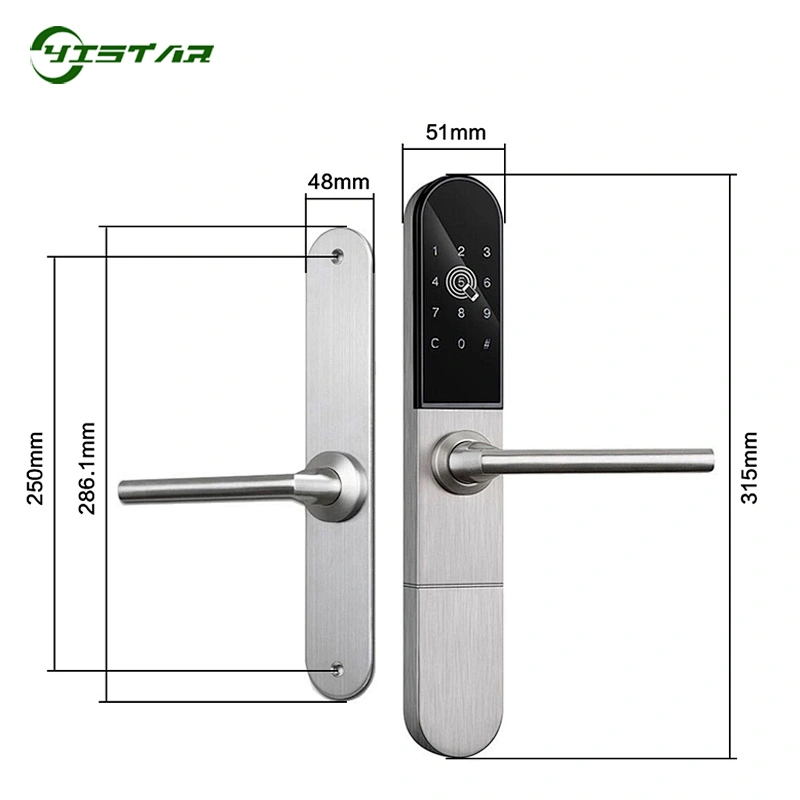

Dimension:315x51x25mm
Certification:CE FCC
Brand Name:Yistar
Model Number:C878
Special Features:Card

Product Description

Features:

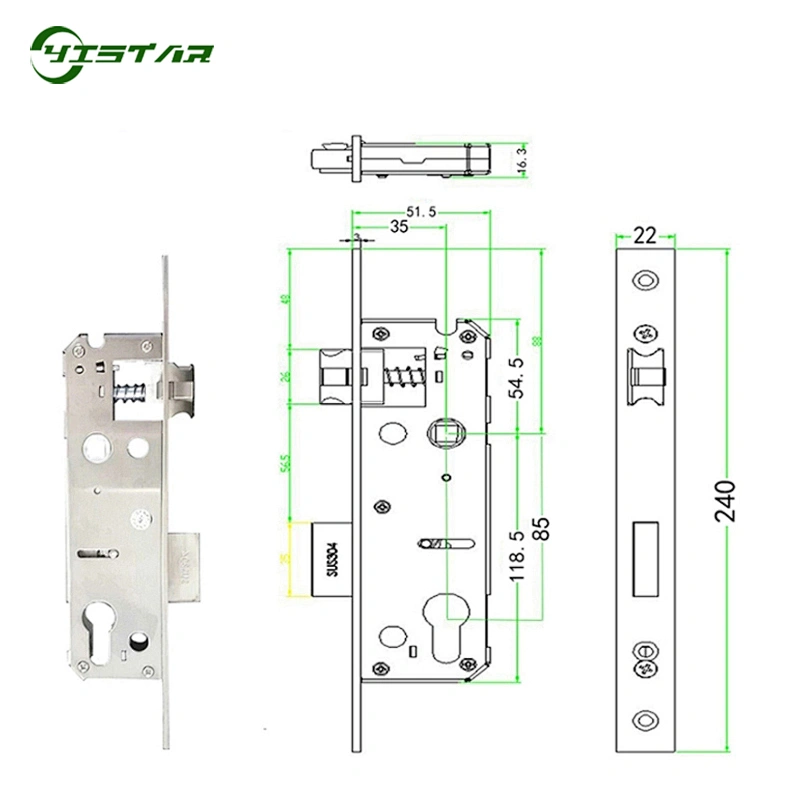

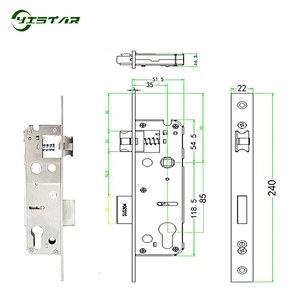

1. 3585 mortise;
2. Triple mute lock body;
3. Lock face has no artificial rivets and plastic parts
4. The board support anti-interference and error correction feature;
5. The circuit has been damp-proof and dust-proof processed before shipping;
6. The lock information will not loss when power off;
7. A clock inside the lock control the key card using time;
8, Anti-static support;
9, Low voltage warning;
10, Fit door thickness: 30-55 mm.
11, Fit door type: wooden door, steel door, aluminum door;

Groos weight	2 KGS
Size	315* 51 * 25 MM
Static Load	< = 35μA
Working Load :	<= 200mA
Humidity	10%-85%
Working Temperature :	-30 ~ +60 degrees
Material	Aluminum
Surface Treatment	Stainless steel drawbench processing/Gold PVD Coating
Mortise	ANSI Standard Mortise
Override Mechanical Key	2 PCS For Each Lock
Power	4PCS AA Alkaline Batteries.12 Months' Duration
Low Battery Warning	Lower Than 4.8V
Door Thickness	30mm-55mm
Application	Hotel, Apartment ,office or House door
Certificates	CE, FCC

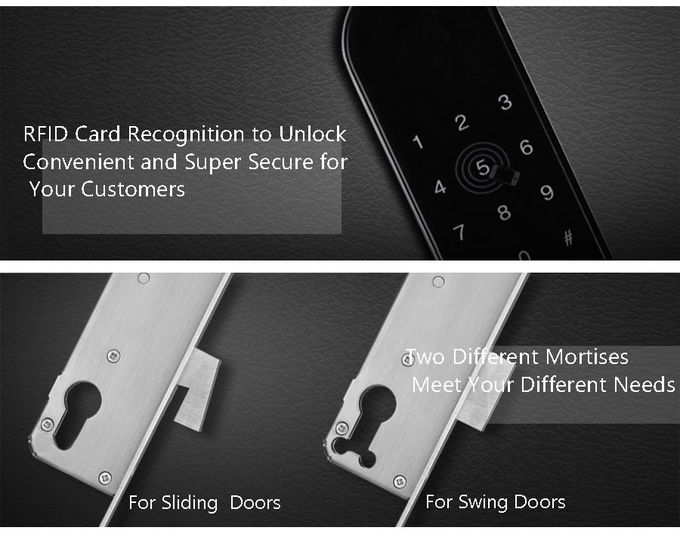

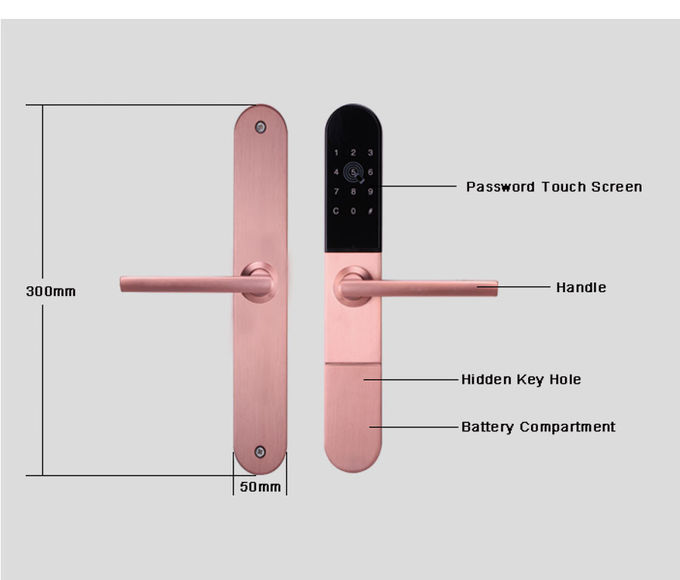

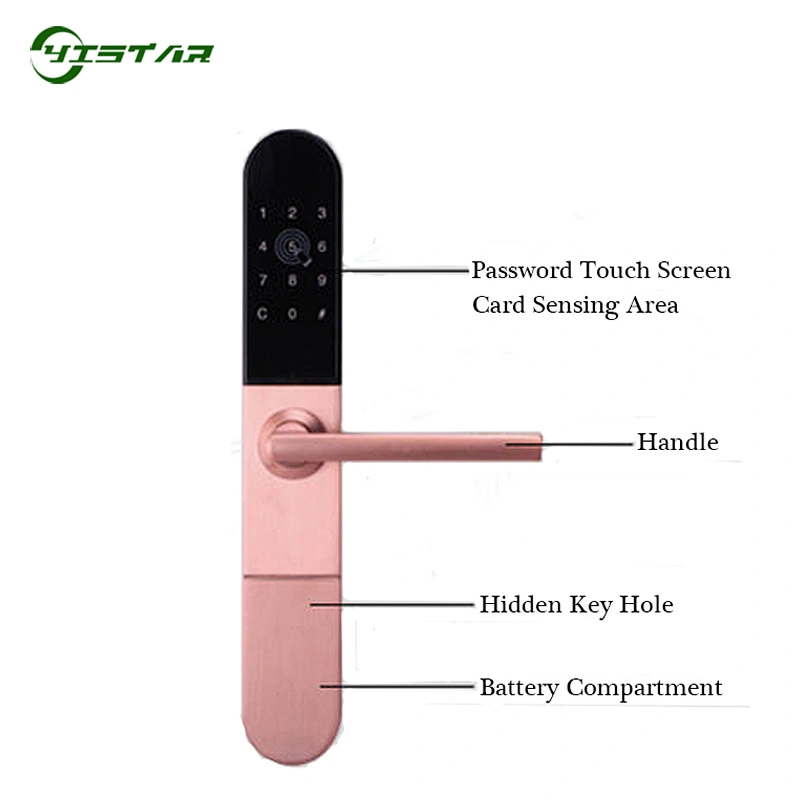

Detailed Images

After Sales Service

Warranty: 2 years.

Warranty way: Replace directly instead of fix.

Once u have any technician and install problems, pls contact with engineer by email, our engineer will give u feedback in 15 mins.

Once u have any problems with the sellers, pls kindly feedback to the sales director.

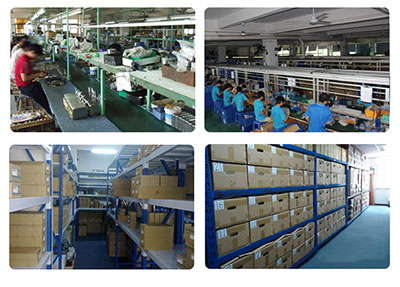

Company Introduction

YSTech is one of the most professional electric locks manufacturers in Asia which has zhongshan factory and Enping factory that covering an area of 10,000 square meters. We have strong R&D skills, production capacities and distribution channels. Our products are Magnetic locks, Electric striker, Drop bolt, RFID cards, Access control reader, Fingerprint door lock, Exit buttons, Door holder, remote control and other access control accessories, which totally over 200 kinds of products. YSTech boasts a talented and experienced team of technicians with top-notch skills in design and development. Equipped with the digitalized automatic equipments, we are dedicated to ensure the consistency and quality of each product. Our high production controls and standards to make sure every products are 100% pass. The products have 3 years warranty. The newly-designed series of YS products are esthetic, safe and durable. In compliance with the international standard, we have been exported to more than 100 countries successfully, including Asian, European, African, South American and the Middle East countries. We are one of most important access control coorperative partners in the world. We also provides OEM&ODM services which are extensively applied in access control, communications among buildings and emergency exits, etc. Our reliable products have gained an extensive recognition from customers domestically and abroad.Currently, we have obtained intellectual property rights for our core products. They have been certified by the CE 、MA、ROSH、ISO9001、UL and PCT. After many years development, Our product are widely used in the major airports, customs, metro stations, Olympic Games, Telecommunications, Government, Banck, Factories, Campus, Hotels, Schools, Offices, Intelligent Community And so on.

Production Flow Chart

Raw materials into the factory → qualified inspection → production of silicon steel sheet → annealing treatment → winding treatment → injection molding → grinder treatment → electroplating treatment → lock body detection → circuit board detection → aging test → tension and electrical properties detection → packaging and storage

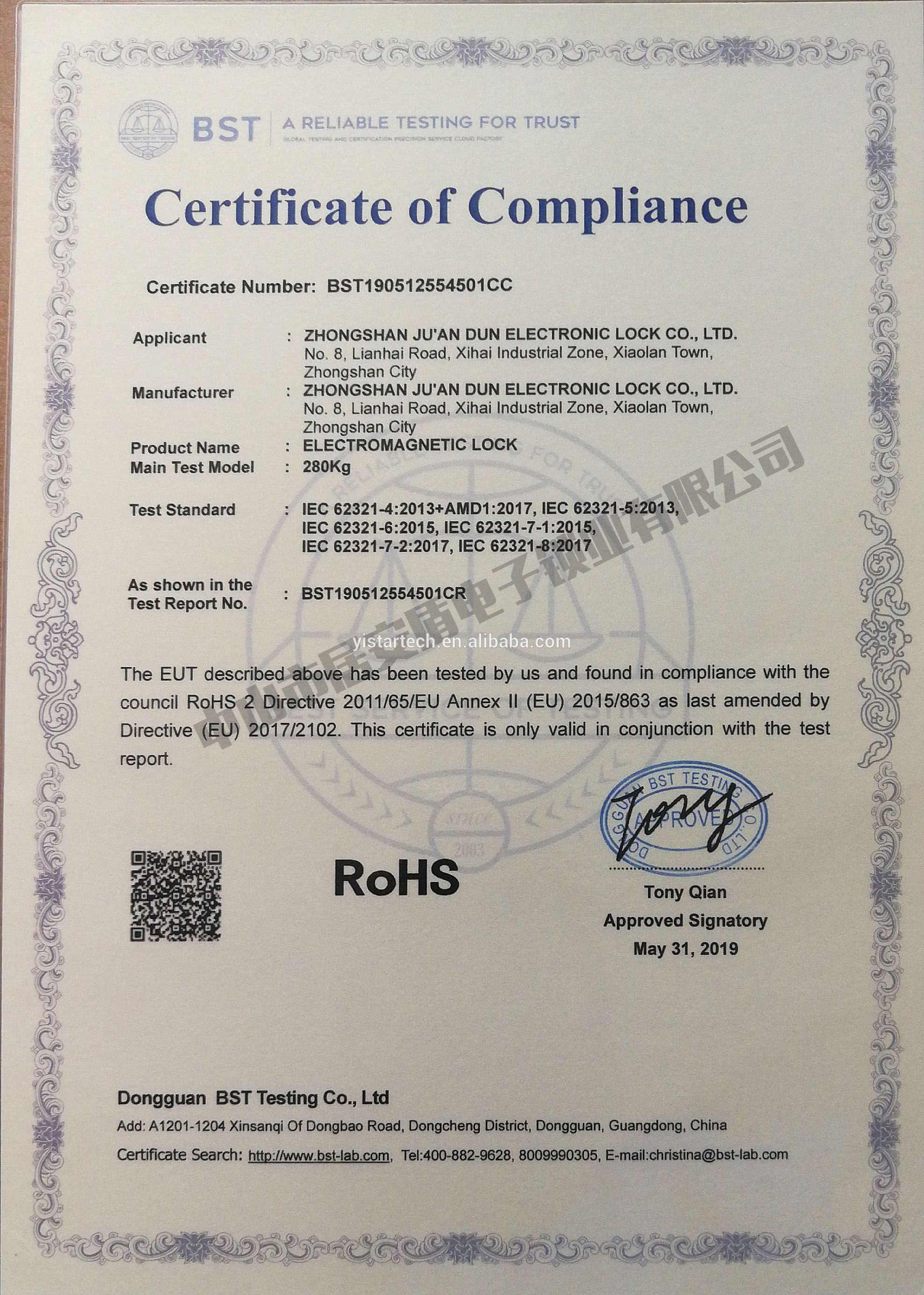

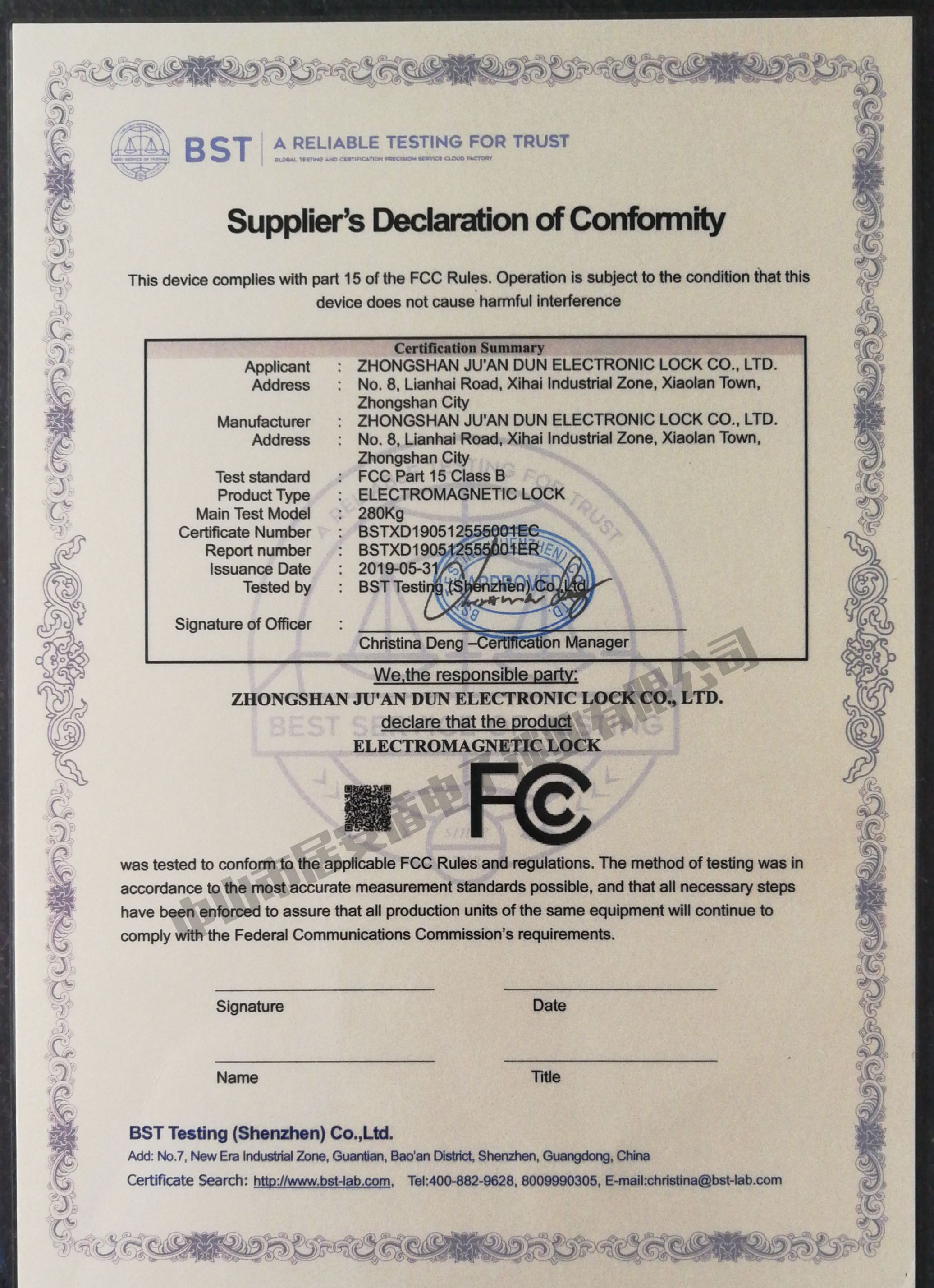

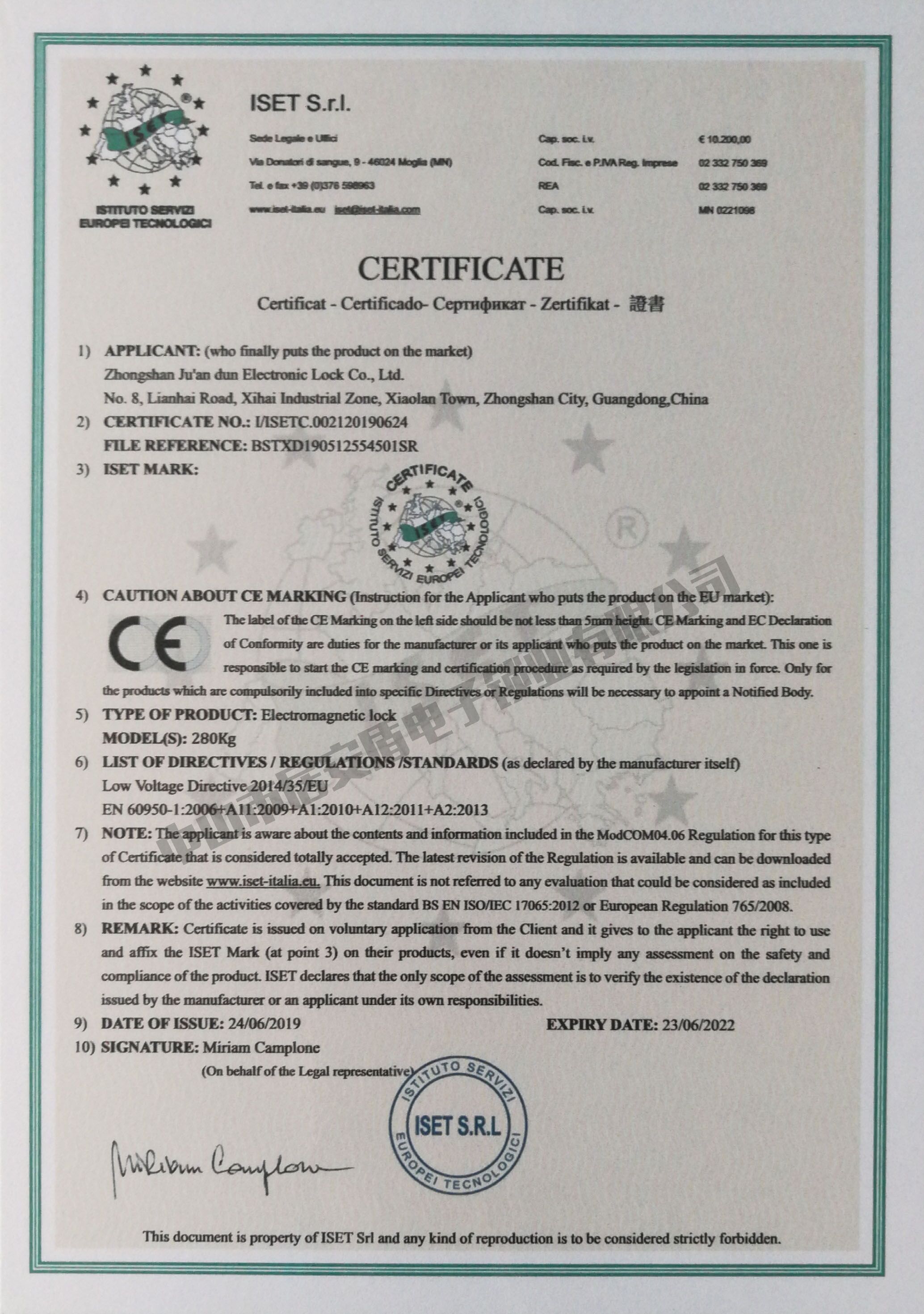

Certifications

FAQ

Q1, Do you provide OEM & ODM?

A: Yes, We do support, we have 10 years OEM & ODM experience which can satify all customers requirement.

Q2, How about Warranty?

A: We provide 1 year Warranty for all electric locks, the locks will be replaced instead of fixed.

Q3, How about the payment terms?

A: We accept T/T, Western union, Money Gram, Paypal; Trade Assurance ect..

Bulk Standard Order: 30% deposit first, 70% balance before shipment.

Bulk OEM & ODM Order: 50% deposit first, 50% balance before shipment.

Q4, How we can trust ur company？

A: Yistar is a 10 years company in security field which professional in magnetic lock, electric bolt and RFID cards, and alibaba trade assurance will protect buyers.

Q5, What is the deliver time?

A: It depends on customers order quantity , season and requirement details, the following time is for u to reference.

Standard device: Sample: < 3 days.

100pcs< 7 days.

1000pcs< 15 days.

5000pcs< 25 days.

OEM device: Sample:< 5 days.
100pcs< 10 days.
1000pcs< 20 days.
5000pcs< 30 days.

Q6, What kind of certificate do u have?

A: CE, FCC, ROHS ect.

Q7, Which shipping way your company normally use?

A: DHL, TNT, UPS, FEDEX express way; By sea; By air; customers forwarder etc.

Q8, How about after-sale service.

A: We have technician team to support the install guide and technician problems, pls send email to support @yistartech.com once u need any help.
