High Quality Fingerprint Lock XM-768 Smart Locks For Home Automatic Electronic Security Biometric Fingerprint Door Lock from China Manufacturer

Identify:Fingerprint/card/password/key
Sensor resolution:Bright background, 500dpi
Material:Zinc Alloy
Recognition speed:<1 second
Power supply:4-6V (4pcs 5th battery)
Suitable thickness:37-100mm
Fingerprint capacity:100
Language selection:English

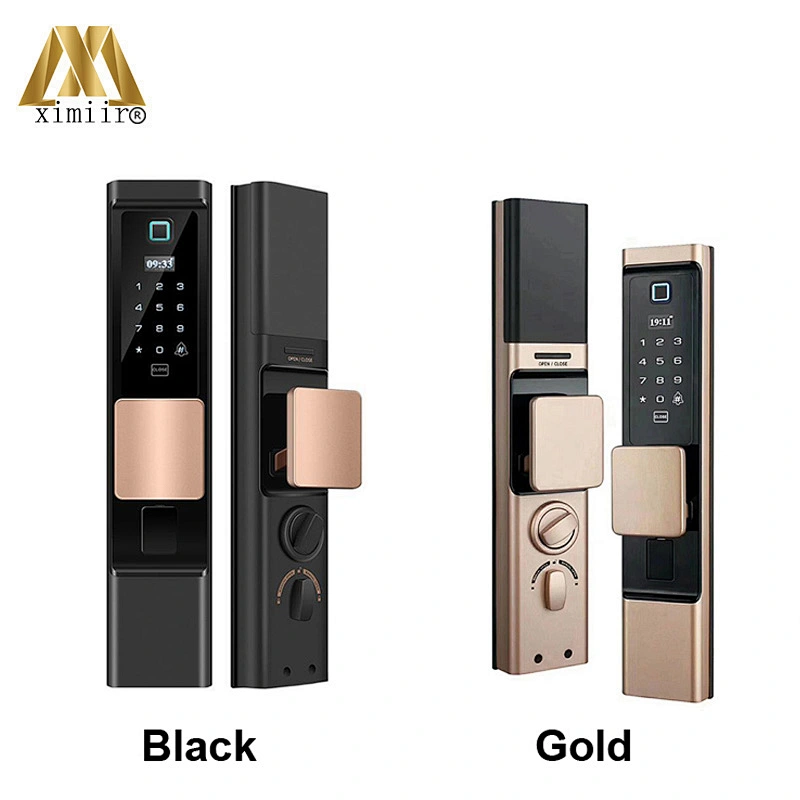

Color:Black, Gold

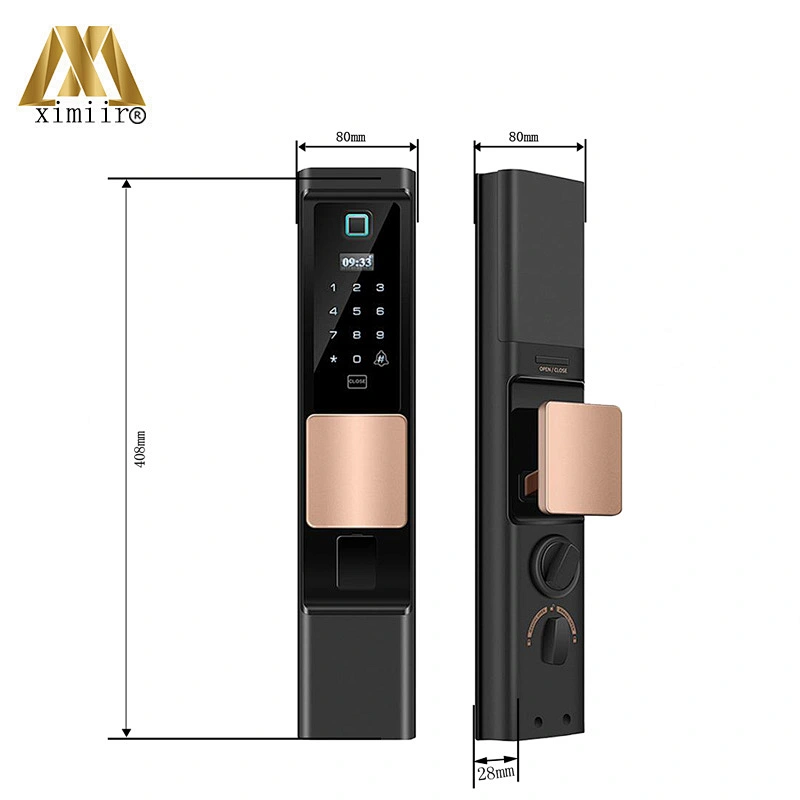

Dimension:408*80*28mm
Door Type:Glass door
Door Type:Wood door
Door Type:Stainless Steel door
Door Type:Aluminum door
Place of Origin:CN;GUA
Brand Name:ximiir
Model Number:XM-768
Certification:CE,CFF

Products Description

Delicate appearance design, Reasonable structure, Secure fingerprint lock.
Applications: Government, Police station, Army, Bank, Law Court, Hospital, Office building, Residential area, etc.

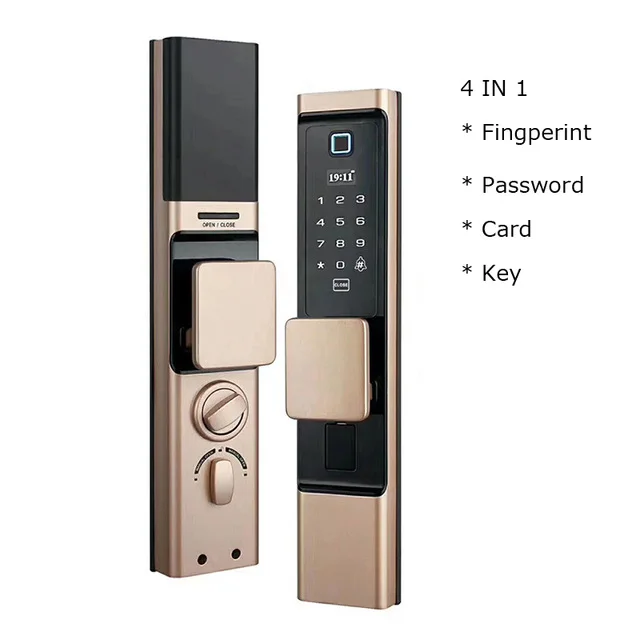

We adopt the international advance biotechnology to ensure its high quality; 4 peaces AA batteries; handles can prevent the wreaking havoc; four ways to open the door: Fingerprint + Pin code + card+ mechanical key.

Low voltage alarm
If the battery is in low power, whenever you open the door by fingerprint, password or card, the lock will alarm with the voice prompt of “power low, please replace batteries”

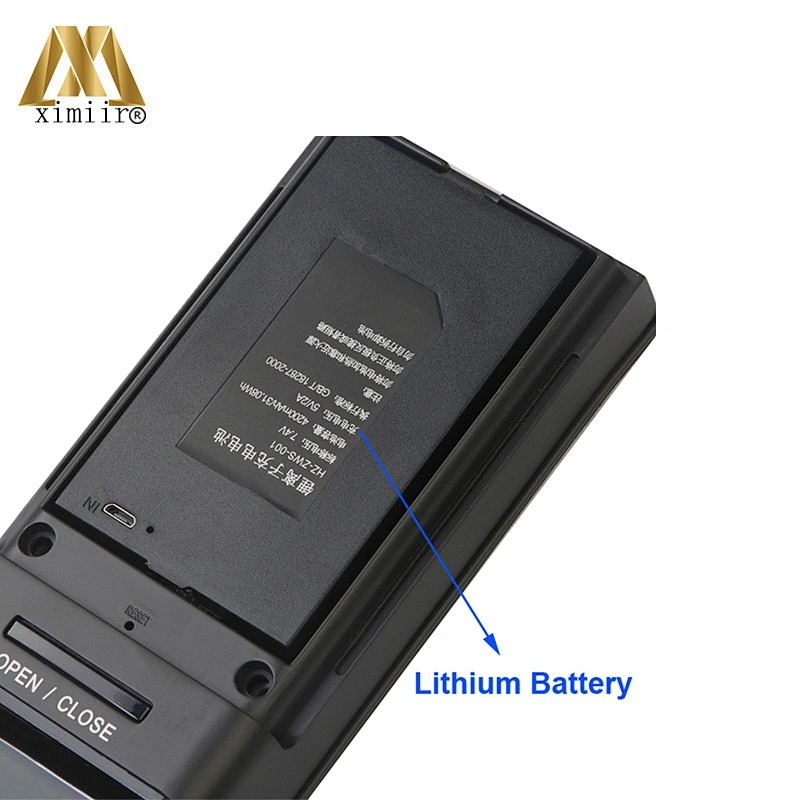

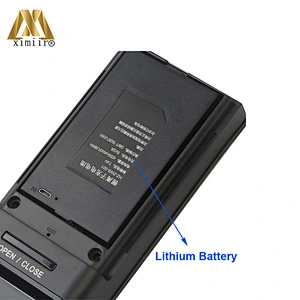

Backup power
When the batteries is totally out of power and mechanical keys are not available at the same time, please connect the Power bank to the power interface under the front lock body to power the combination, and then put in password to open it.

Specification

No.	Items	Technical parameters
1	Sensor resolution	Bright background, 500dpi
2	Sensor damage resistance ability	1000 times of impact with 4H pencil
3	Starting time	<1 second
4	Way of contrast	1:N
5	False rejection rate	≤1%
6	Error rate	≤0.0001%
7	Finger point	360°
8	Fingerprint registration module	Create one fingerprint module at one time
9	Fingerprint update mode	Auto update
10	Fingerprint information	The fingerprint information will not lose when the battery is off or changed
11	Fingerprint capacity	100 Pieces
12	Lights interfere	Avoid explosion under high light
13	Fingerprint collector	Hard glass, nanometer surface treatment
14	Static Power Consumption	< 30 u A
15	Dynamic Power Consumption	The working current is under 200 mA
16	Control system	Dicaryon dual circuit and individual control
17	The fingerprint battery life	Open door for 5000 times
18	The combination battery life	Open door for 6000 times
19	Working voltage	DC 6 V
20	Power supply mode	Battery powered
21	Combination capacity	100 Groups
22	backup power	DC 9 V
23	Low voltage alarm	4.9 V
24	Antistatic ability	Contact discharge 8KV,air discharge 15KV
25	Working temperature	-25℃ to 65℃
26	Working humidity	10% to 90%
27	Storage temperature	-20℃ to 7 0℃
28	Combination design	Random combination
29	Combination length	6-digit numbers
30	Door open method	Left open, right open
31	Card Capacity	20 Piece

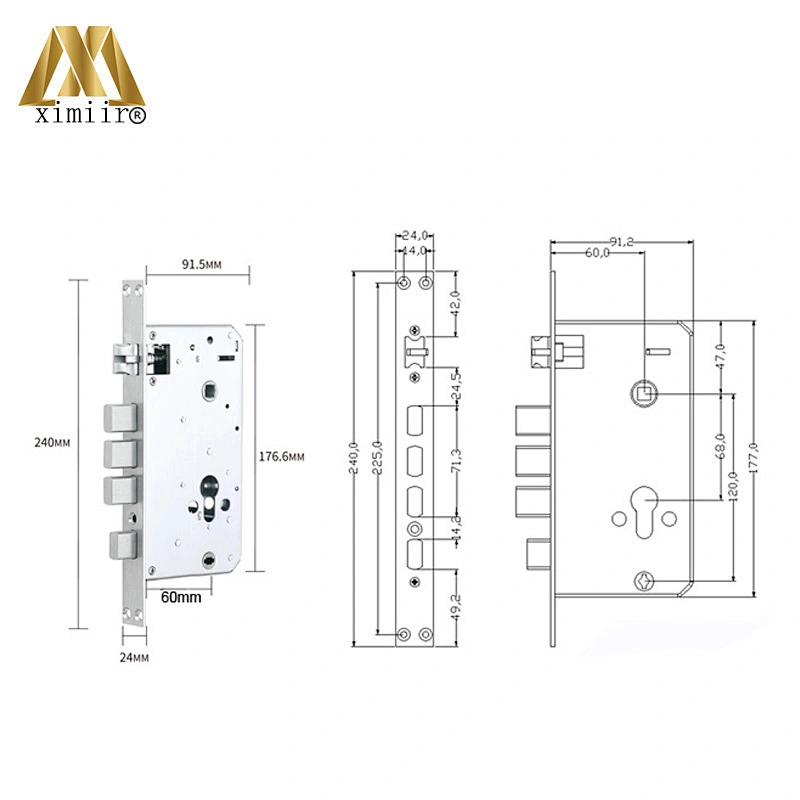

Details Images

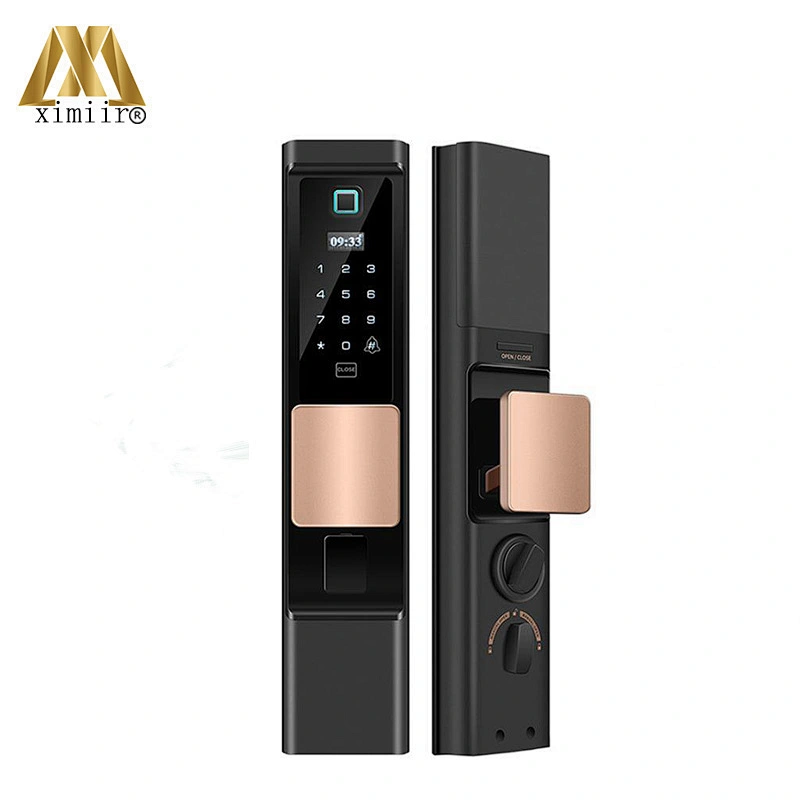

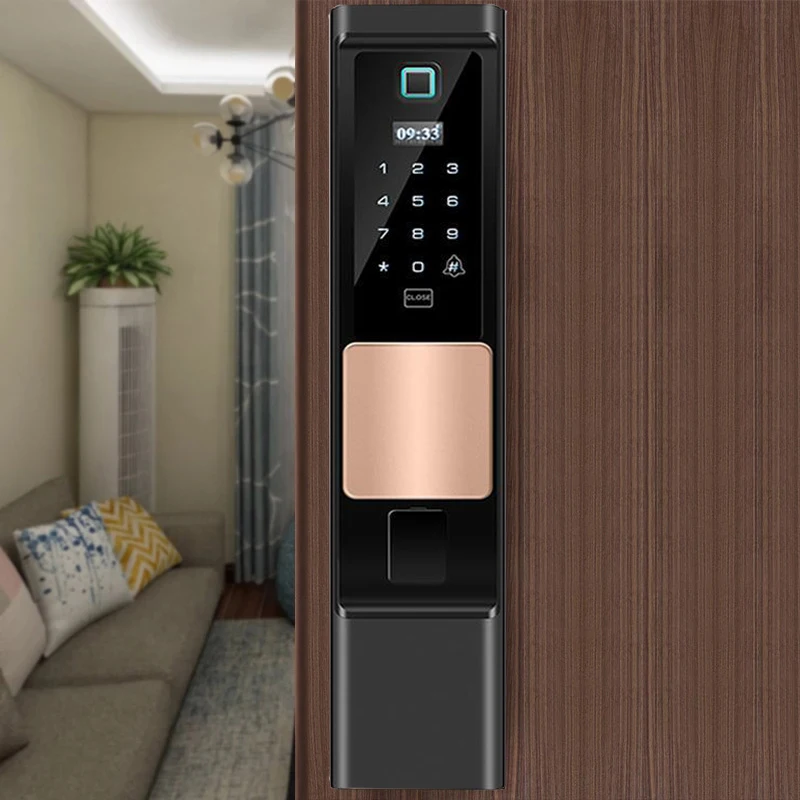

High Quality Fingerprint Lock XM-768 Smart Locks For Home Automatic Electronic Security Biometric Fingerprint Door Lock
