Electric Lock Magnetic Output with Timer DC12V Mortise Door Lock XM-400T Fail Safe Fail Secure NC/NO Bolt Mortise Door Lock from China Manufacturer

Color:Silver
Fail-safe:Power to lock
Material:Stainless steel
Weight:1.65kg
Suitable Door Type:Wooden door , Glass door ,Metal door , Fireproof door
Start current:900mA
Standby current:150mA
Voltage:DC12V
Face Plate:260L*30W*48H(mm)
Timer:0/ 3 /6 seconds available to set
Door Type:Glass door
Door Type:Wood door
Door Type:Stainless Steel door
Door Type:Aluminum door
Place of Origin:CN;GUA
Brand Name:Yistar
Model Number:YS-400T
Certification:CE ,FCC

Product Description

Electric Lock Magnetic Output with Timer DC12V Mortise Door Lock XM-400T Fail Safe fail Secure Bolt Mortise Door Lock NC/NO

Features:

1, (Fail-secure type:Power to Open)
2, Voltage: DC12V
3, Start Current: 950mA Standby Current: 150mA
4, Fail Safe: Power to open
5, Face Plate: 260L*30W*48H(mm)
6, Strike Plate : 100L*25W*38H(mm)
7, Bolt :16mm DIA,stainless steel 16mm throw
8, Solid Bolt: Polishing housing, 1000kg Holding Force
9, Suitable for: Woodeng Door,Glass Door,Metal Door,Glass Door
9, Autolock Time Delay: 0,3,6,9sec
10, Weight: 1.65kg

Specification

Fail Safe:	Open when energized
Face Plate:	260L30W48H(mm)
Bolt:	100L25W38H(mm)
Voltage:	DC12V(DC24V)
Start Current:	900mA
Standby Current:	150mA
Solid Bolt:	polishing housing, 2000Kg Holding Force
Suitable For:	16mm Electric Bolt For Fully Frameless
Signal Output:	Door status Output,NO/COM
Surface Temp:	Low Temperature
Induction Distance:	8mm
Operating temp:	-10~+25C(14-131F)
Operating Humidity:	0~90%(non-condensing)
Special Designed:	Tested to 500000 cycles
Optional Bracket:	Yes
Weight:	1.65kg
Standard Packing:	20pcs

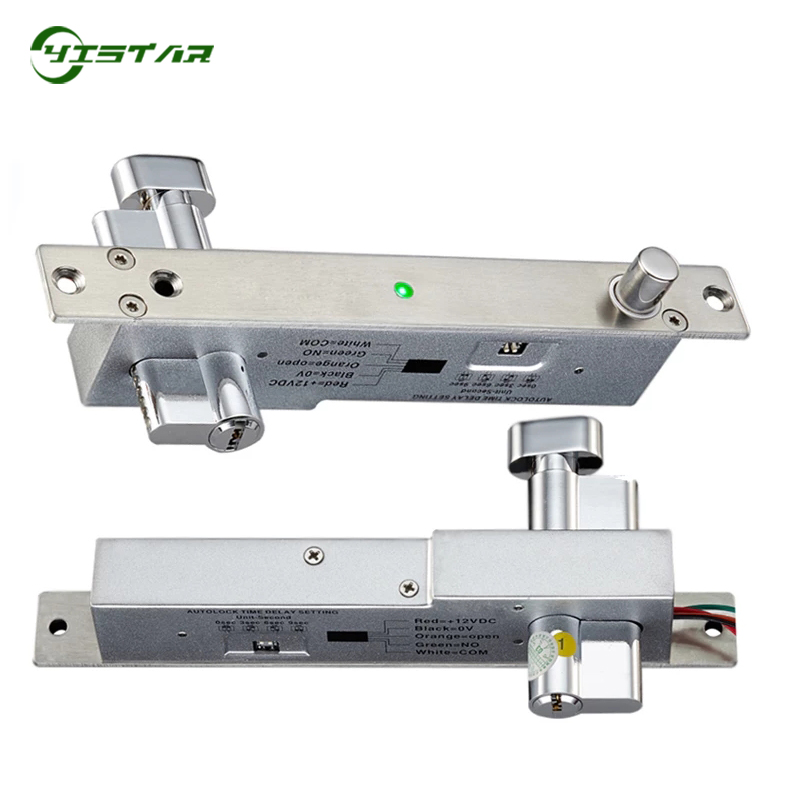

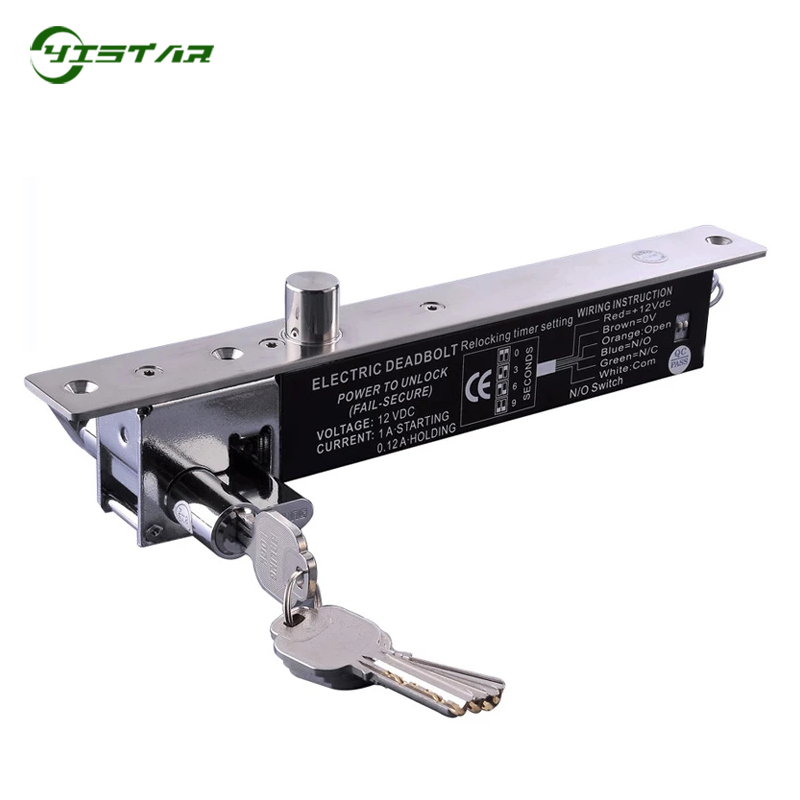

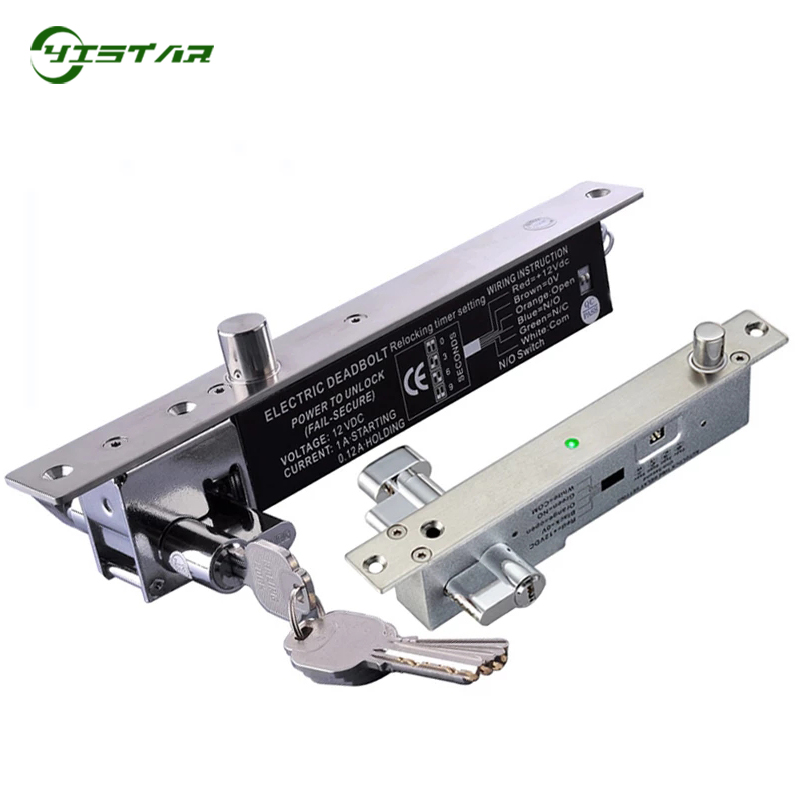

Details Images

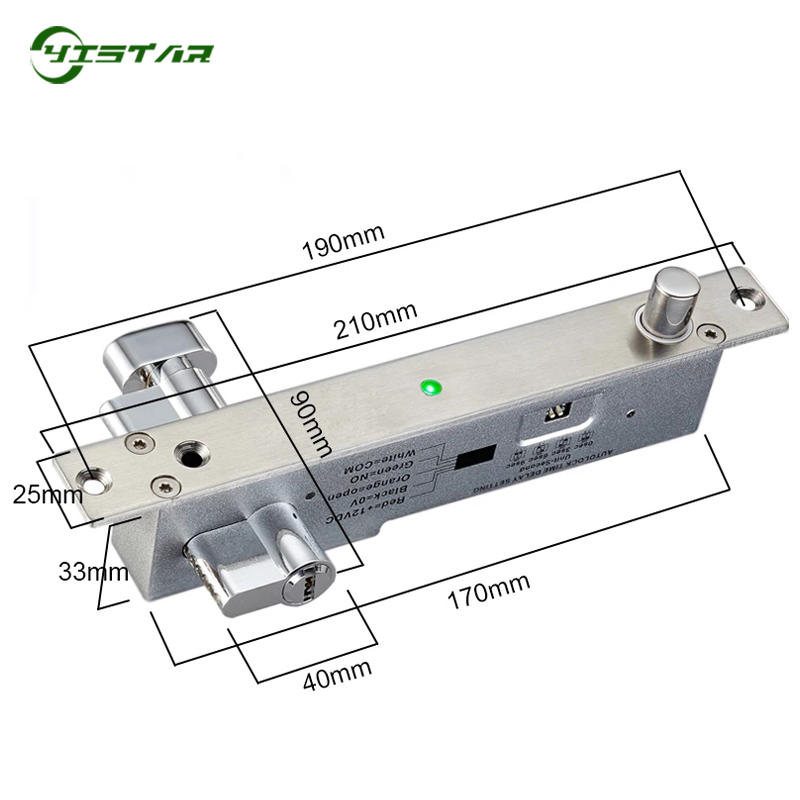

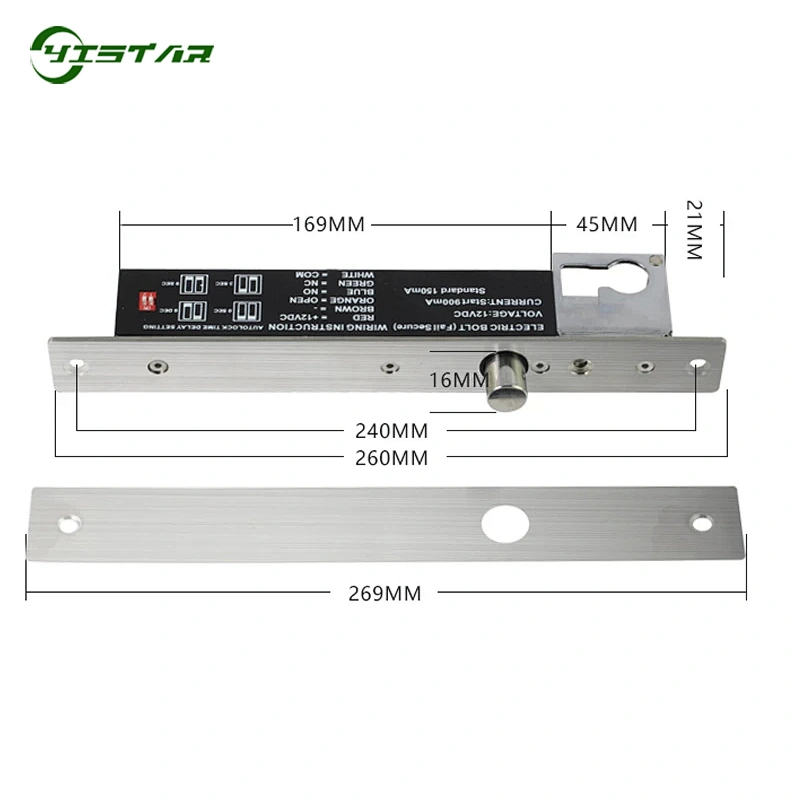

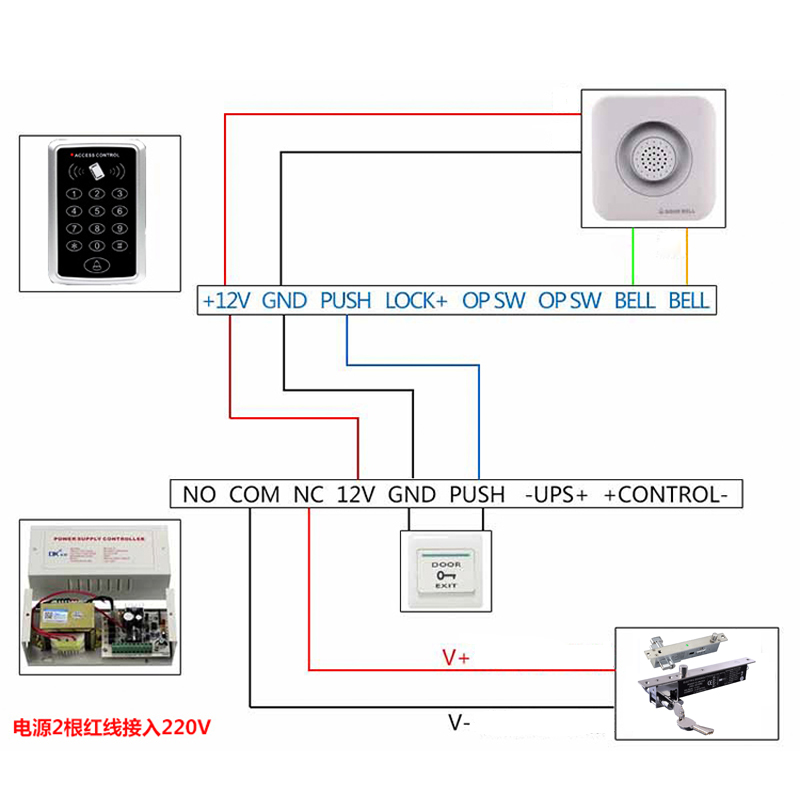

Diagram

After Sales Service

Warranty: 2 years.

Warranty way: Replace directly instead of fix.

Once u have any technician and install problems, pls contact with engineer by email, our engineer will give u feedback in 15 mins.

Once u have any problems with the sellers, pls kindly feedback to the sales director.

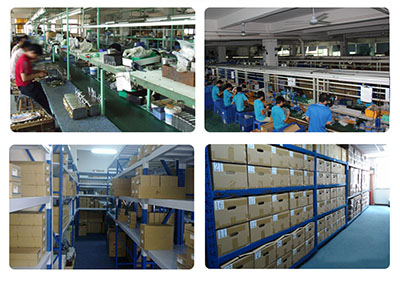

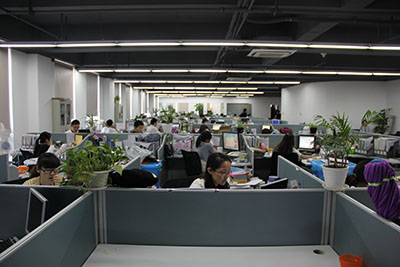

Company Introduction

YSTech is one of the most professional electric locks manufacturers in Asia which has zhongshan factory and Enping factory that covering an area of 10,000 square meters. We have strong R&D skills, production capacities and distribution channels. Our products are Magnetic locks, Electric striker, Drop bolt, RFID cards, Access control reader, Fingerprint door lock, Exit buttons, Door holder, remote control and other access control accessories, which totally over 200 kinds of products. YSTech boasts a talented and experienced team of technicians with top-notch skills in design and development. Equipped with the digitalized automatic equipments, we are dedicated to ensure the consistency and quality of each product. Our high production controls and standards to make sure every products are 100% pass. The products have 3 years warranty. The newly-designed series of YS products are esthetic, safe and durable. In compliance with the international standard, we have been exported to more than 100 countries successfully, including Asian, European, African, South American and the Middle East countries. We are one of most important access control coorperative partners in the world. We also provides OEM&ODM services which are extensively applied in access control, communications among buildings and emergency exits, etc. Our reliable products have gained an extensive recognition from customers domestically and abroad.Currently, we have obtained intellectual property rights for our core products. They have been certified by the CE 、MA、ROSH、ISO9001、UL and PCT. After many years development, Our product are widely used in the major airports, customs, metro stations, Olympic Games, Telecommunications, Government, Banck, Factories, Campus, Hotels, Schools, Offices, Intelligent Community And so on.

Production Flow Chart

Raw materials into the factory → qualified inspection → production of silicon steel sheet → annealing treatment → winding treatment → injection molding → grinder treatment → electroplating treatment → lock body detection → circuit board detection → aging test → tension and electrical properties detection → packaging and storage

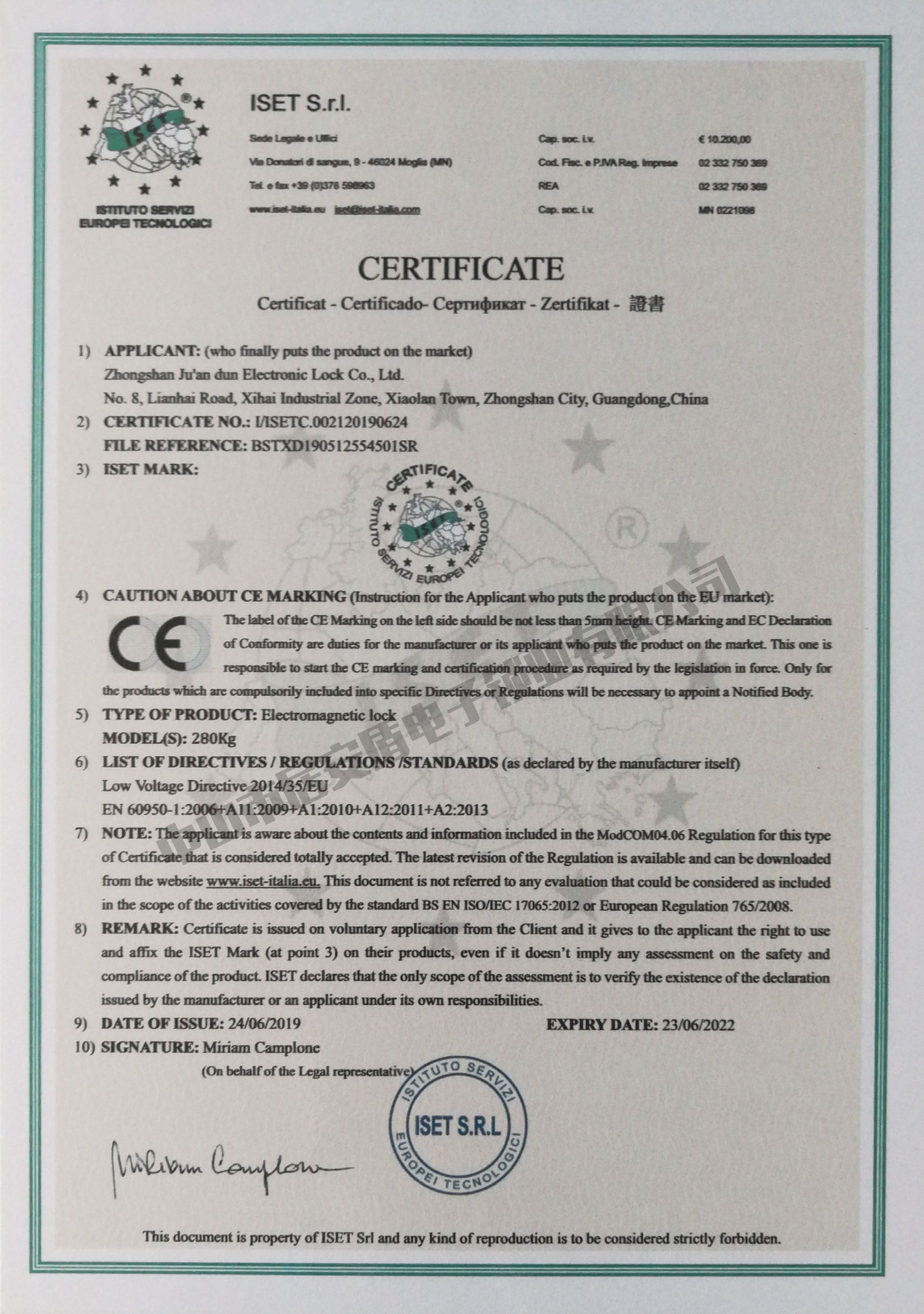

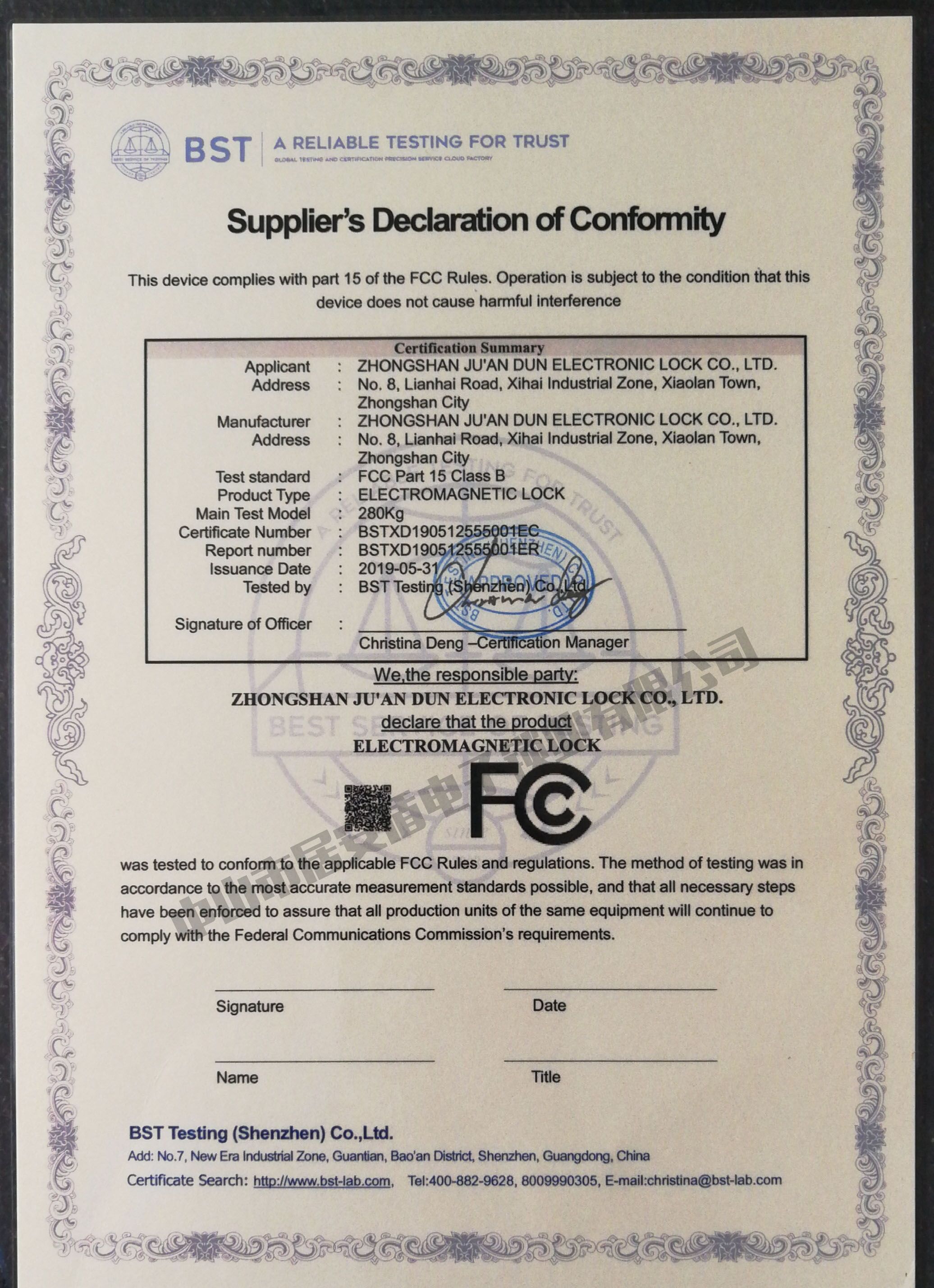

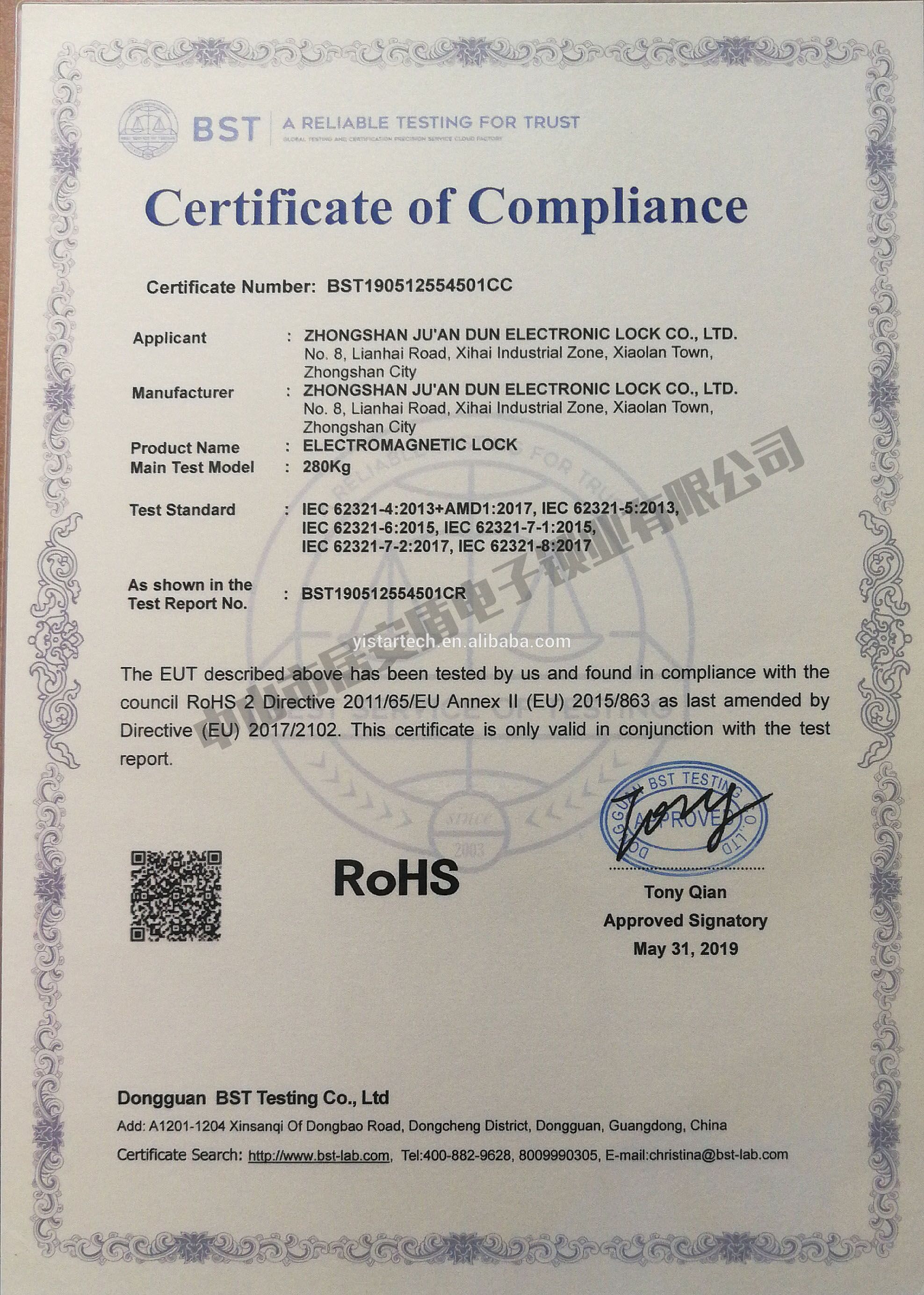

Certifications

FAQ

Q1, Do you provide OEM & ODM?

A: Yes, We do support, we have 10 years OEM & ODM experience which can satify all customers requirement.

Q2, How about Warranty?

A: We provide 1 year Warranty for all electric locks, the locks will be replaced instead of fixed.

Q3, How about the payment terms?

A: We accept T/T, Western union, Money Gram, Paypal; Trade Assurance ect..

Bulk Standard Order: 30% deposit first, 70% balance before shipment.

Bulk OEM & ODM Order: 50% deposit first, 50% balance before shipment.

Q4, How we can trust ur company？

A: Yistar is a 10 years company in security field which professional in magnetic lock, electric bolt and RFID cards, and alibaba trade assurance will protect buyers.

Q5, What is the deliver time?

A: It depends on customers order quantity , season and requirement details, the following time is for u to reference.

Standard device: Sample: < 3 days.

100pcs< 7 days.

1000pcs< 15 days.

5000pcs< 25 days.

OEM device: Sample:< 5 days.
100pcs< 10 days.
1000pcs< 20 days.
5000pcs< 30 days.

Q6, What kind of certificate do u have?

A: CE, FCC, ROHS ect.

Q7, Which shipping way your company normally use?

A: DHL, TNT, UPS, FEDEX express way; By sea; By air; customers forwarder etc.

Q8, How about after-sale service.

A: We have technician team to support the install guide and technician problems, pls send email to support @yistartech.com once u need any help.
