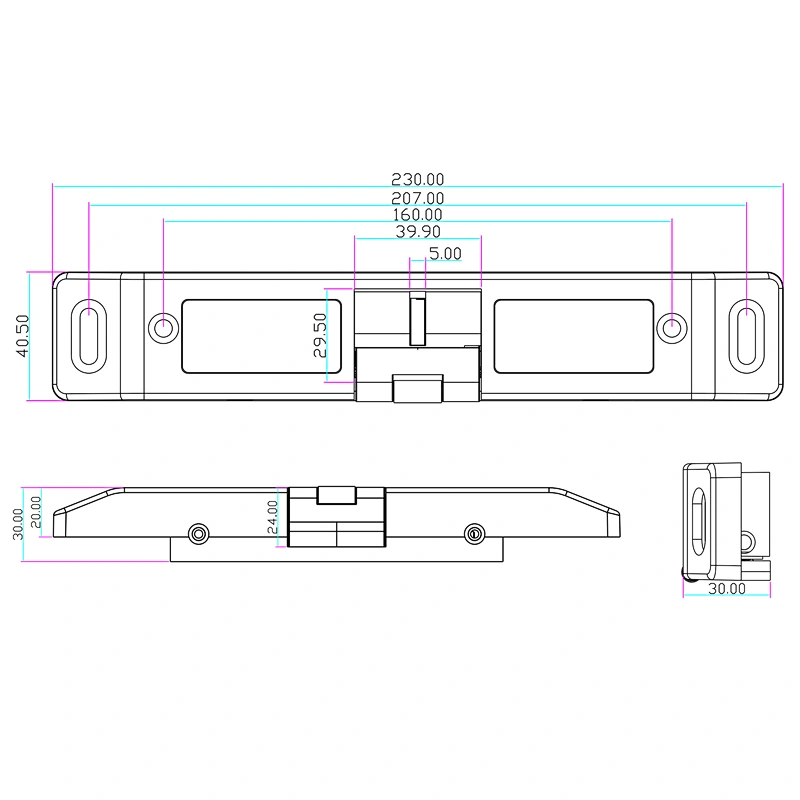

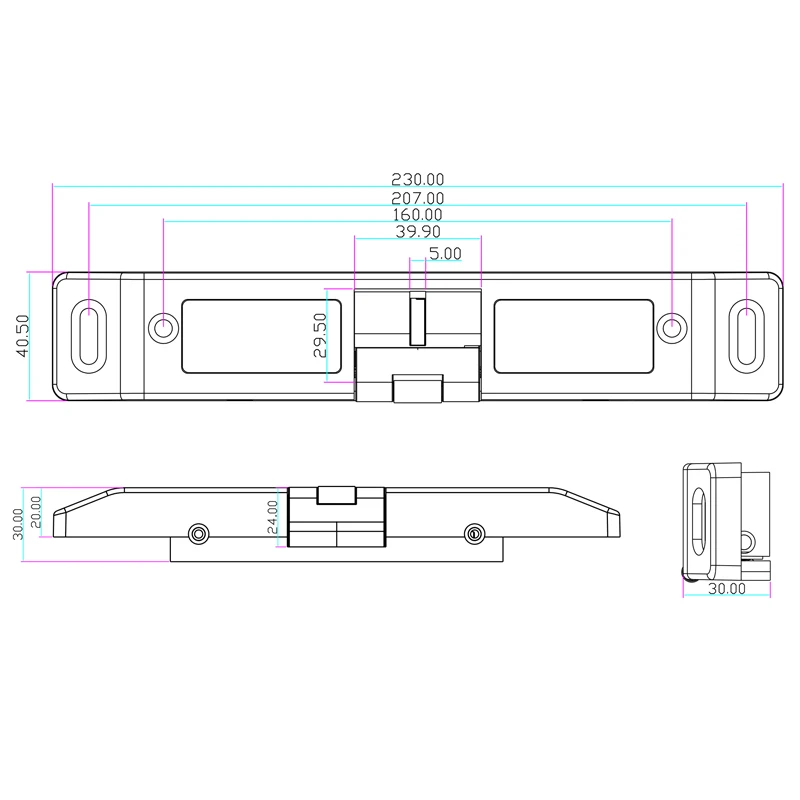

Lock Size | 230L*40W*30H(mm) |
lock tongue structure | 304 Stainless Steel |
Holding Force | 1000kg |
Voltage | DC12V |
Current | 12V/220mA;24V/110mA |

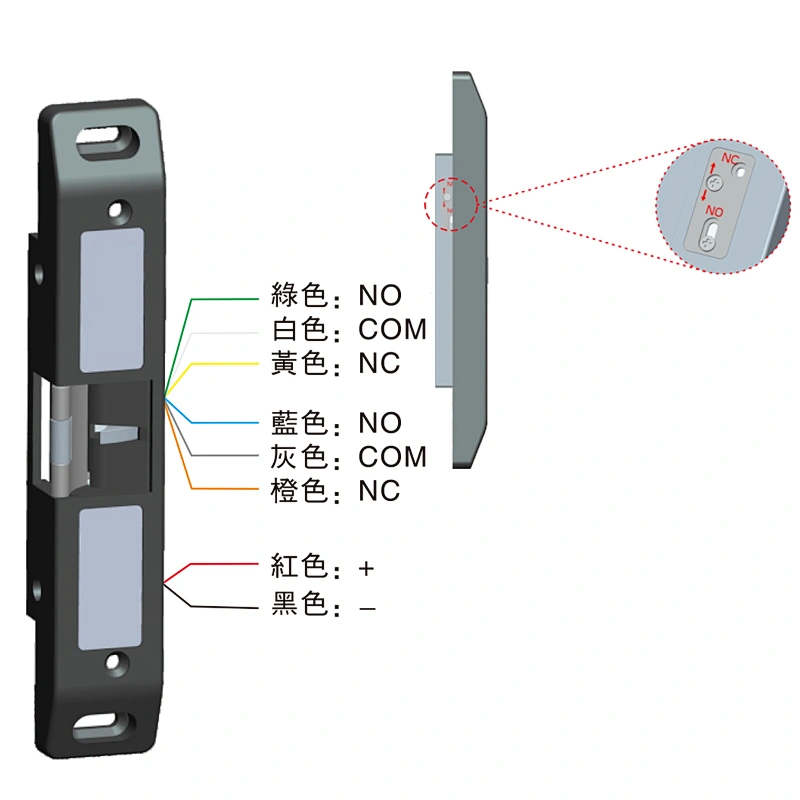

Signal Output | Lock Status Output NO/NC/COM |
special design | applies to all brands of fire push rod lock |
Suitable For | supporting rod lock fire door |
Surface Temperature | Within +20℃ |
Suitable Temperature | -10~+55℃(14-131F) |
Operating Humidity | 0～95%(non-condensing) |
Face plate Housing | High temperature paint |
Lock tongue | Surface by coating nickel |
The door open | 90 degrees |
Weight | 0.75kg |
