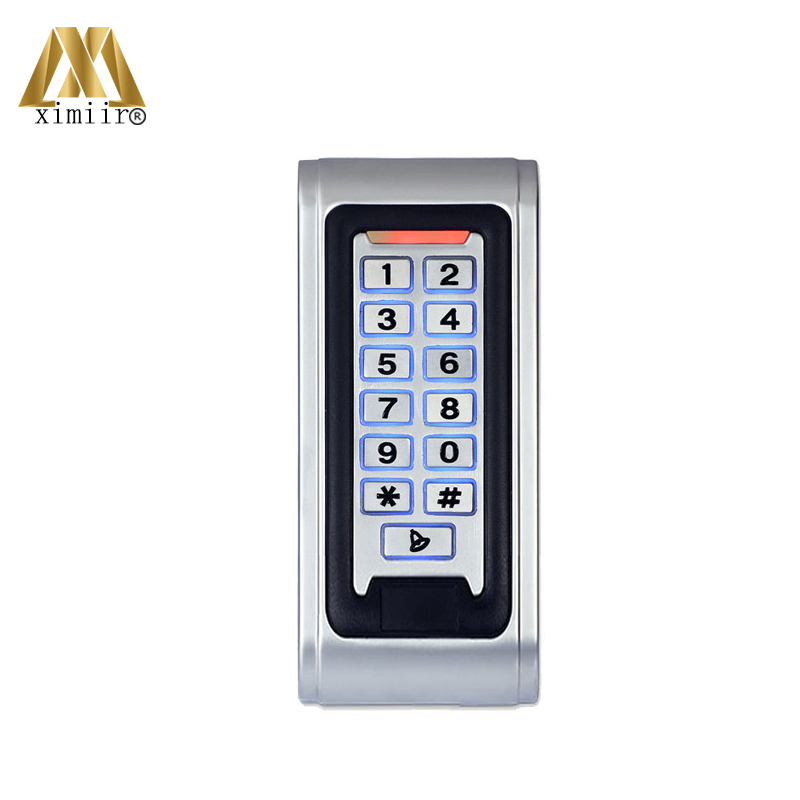

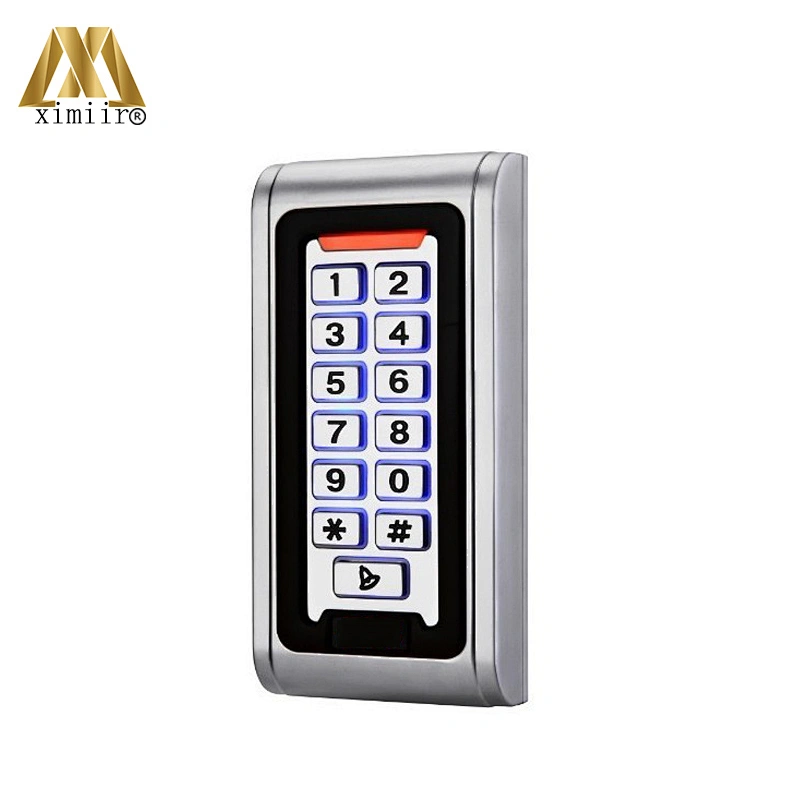

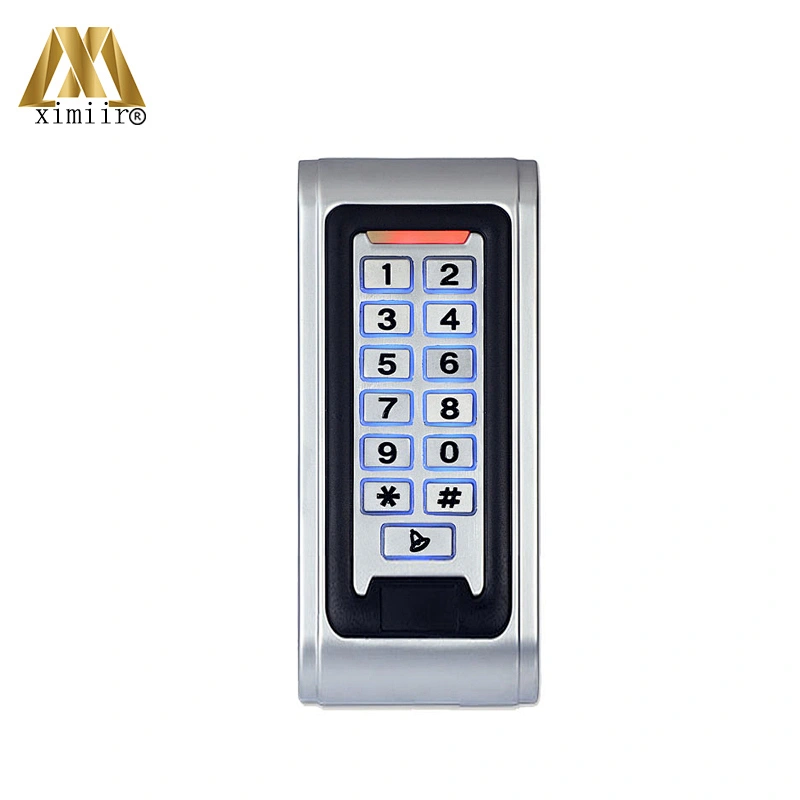

1. The excellent design, noctilucent keyboard , silver plating, fashion style.
2. The multi-function equipment, can use as WG26 card reader.
3. The high and low temperature environment to use..
4. The storage capacity of 2000 user card, 2000 user password.
5. Open three ways: card, password. Card and password.
6. Ultra-low power consumption: Standby current is less than 30 ma.
7. Noctilucent keyboard: Be able to operate the keyboard at night.
8. Large capacity of users: support 2000 users.
9. Independent password
10. Change password: The user can modify the code itself.
11. Identify speed: Swipe to open the door of time is less than 0.1 S.

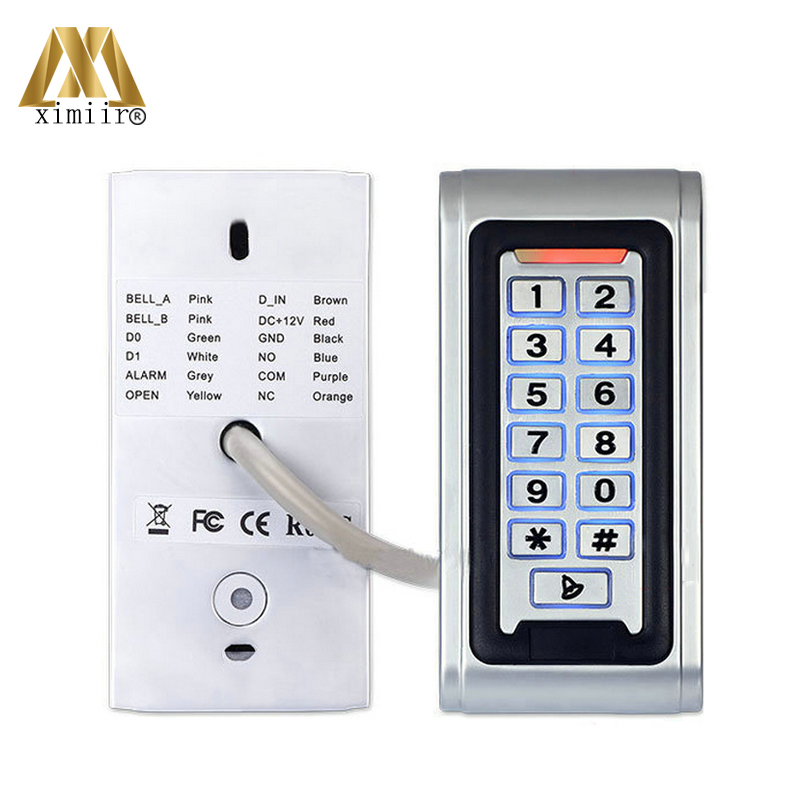

12. Weigand output: with weigand output interface, can output Wg26 card number or Wg34 number keys.
13. Delete cards: When the card lost, It is available to use the keyboard to remove, and eliminate potential safety problems.
14 The output short circuit protection: Electric lock or alarm output short circuit within the 100 mu S output will be automatically closed.
| Model | M04 |
| Capacity | 2000 |
| working voltage | 12V DC |
| Current | 30mA |
| Identify speed | <=1s |
| Open mode | Card/ password/card+password |
| Card Type | RFID Or Mifare card |
| Work distance | 3-6cm |
| Work temperatrue | -35-60 |
| Relative humidity | 10%RH-90%RH |
| Wiegand | Output |
| Output short circuit protection | 1000us |
| Open door time | 0-99 adjustable |

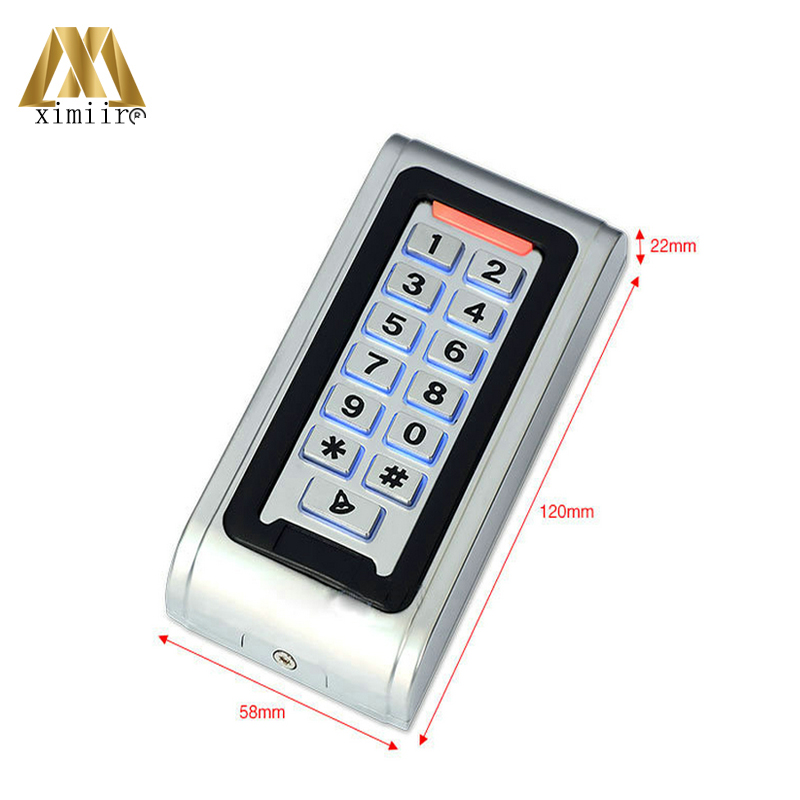

| Dimension | 120x56x20mm |
