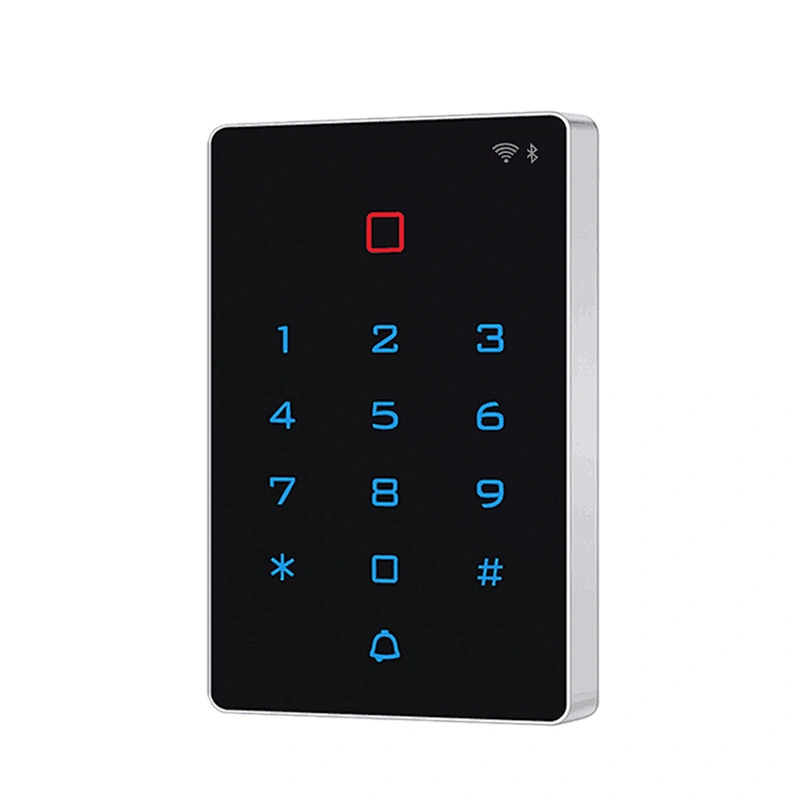

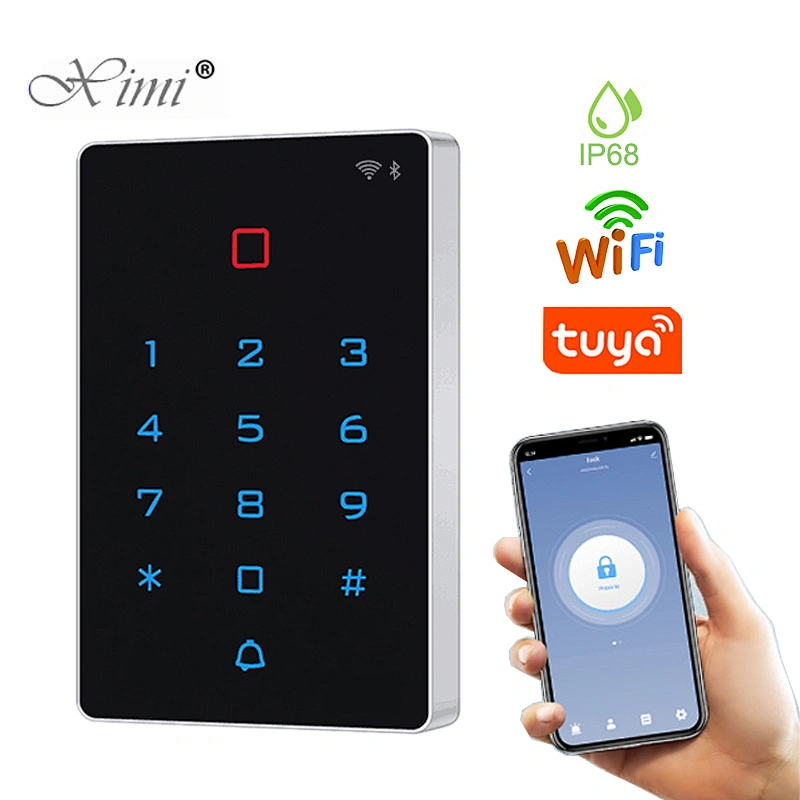

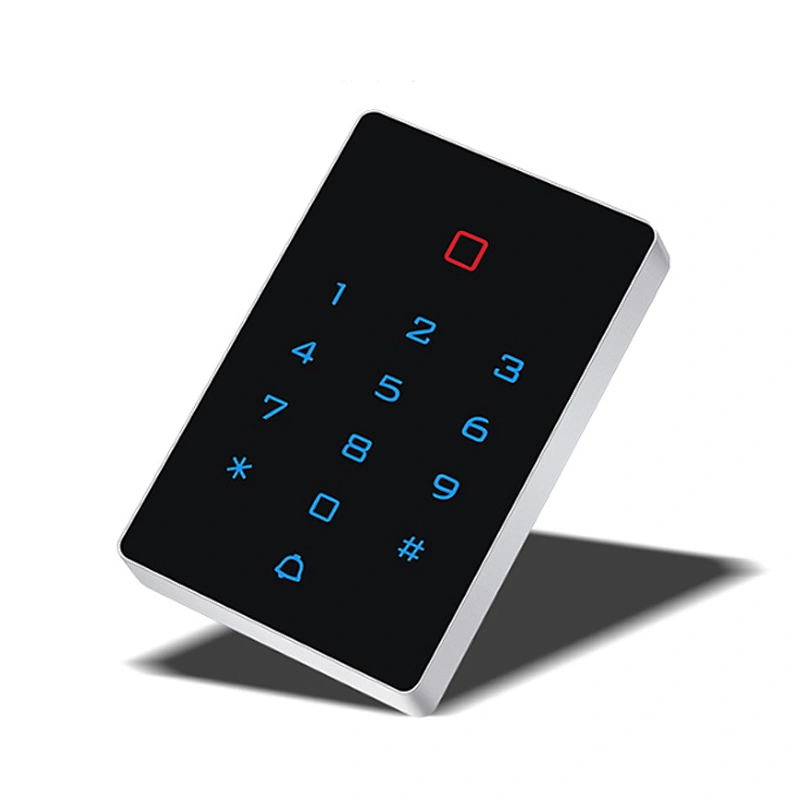

T12 WIFI Tuya Smart Door Lock IP68 Waterproof Access Control Standalone Keypad 13.56Mhz RFID Card Door Access Control System
T12 WIFI Tuya Smart Door Lock IP68 Waterproof Access Control Standalone Keypad 13.56Mhz RFID Card Door Access Control System
T12 WIFI Tuya Smart Door Lock IP68 Waterproof Access Control Standalone Keypad 13.56Mhz RFID Card Door Access Control System
T12 WIFI Tuya Smart Door Lock IP68 Waterproof Access Control Standalone Keypad 13.56Mhz RFID Card Door Access Control System
T12 WIFI Tuya Smart Door Lock IP68 Waterproof Access Control Standalone Keypad 13.56Mhz RFID Card Door Access Control System

T12 WIFI Tuya Smart Door Lock IP68 Waterproof Access Control Standalone Keypad 13.56Mhz RFID Card Door Access Control System

Model NO.:T12
  • Material:ABS
  • User capacity:2000
  • Card type:13.56Mhz Card
  • Optional:125Khz Card
  • Communication:WIFI
  • Waterproof:IP68
  • Dimensions:117*71*22mm
  • Warranty:1 Year
  • Special Features:Waterproof / Weatherproof
  • Application:Outdoor
  • Place of Origin:CN;GUA
  • Brand Name:ximiir
  • Model Number:T12
  • Resolution:None
  • Certification:None
  • Data Storage Options:None
Product Description

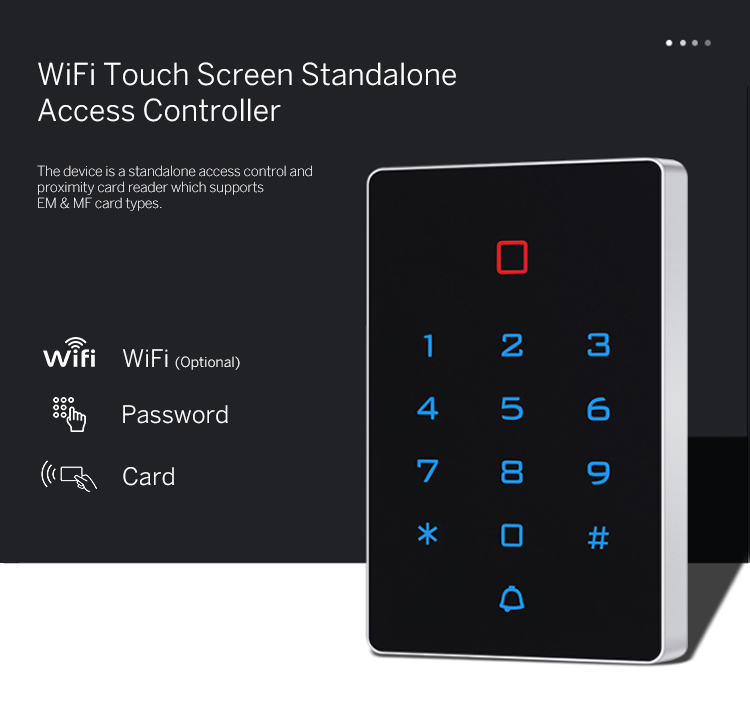

The device is a standalone access control and proximity card reader which supports EM & MF card types. It builds-in STC
microprocessor, with strong anti-interference ability,high security and reliability,powerful function and convenient
operation.It’s widely used in high-end buildings, residential communities and other public places.

Technical Parameters:

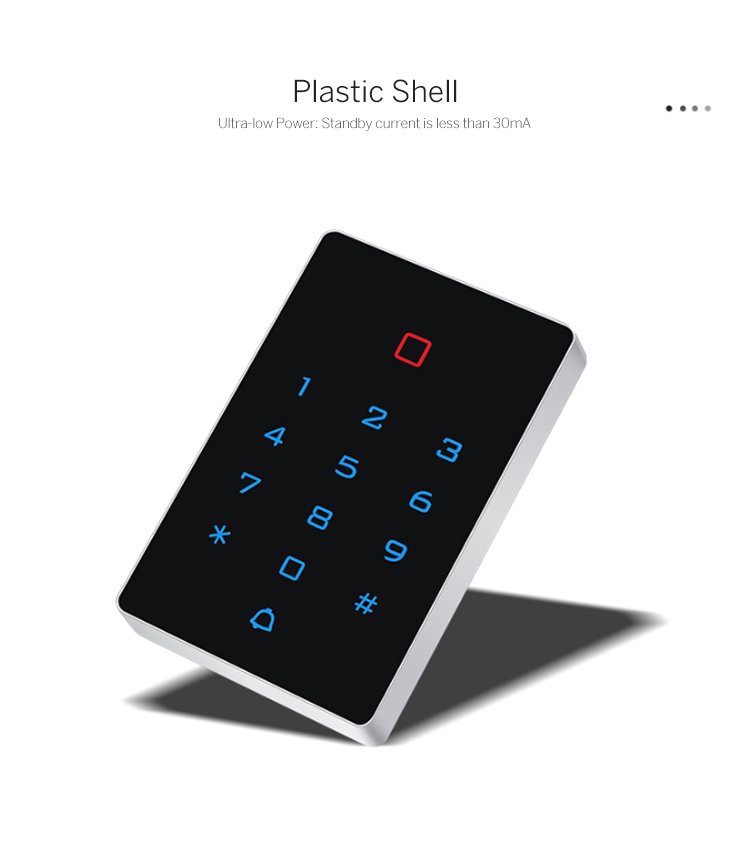

Ultra-low Power: Standby current is less than 30mA

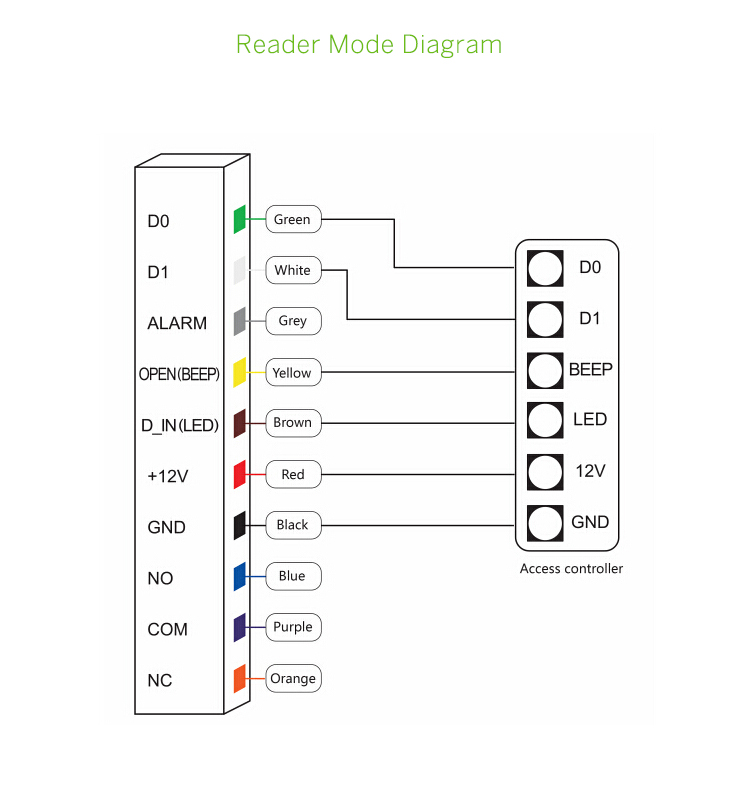

Wiegand Interface: WG26 or WG34 input and output
Searching time: Less than 0.1s after reading card

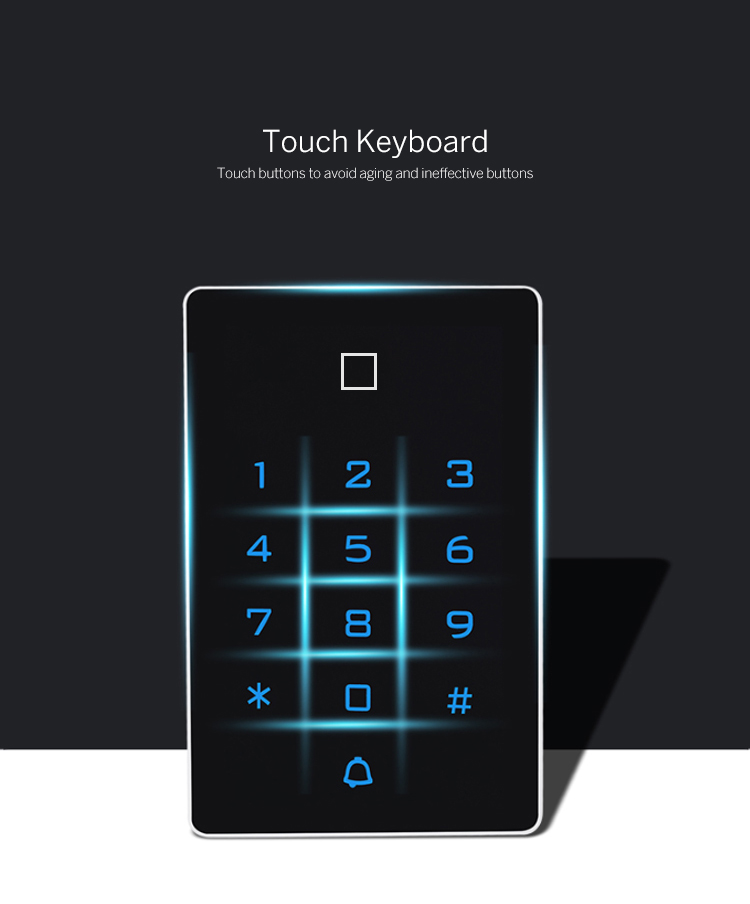

Backlight keypad: Operate easily at night

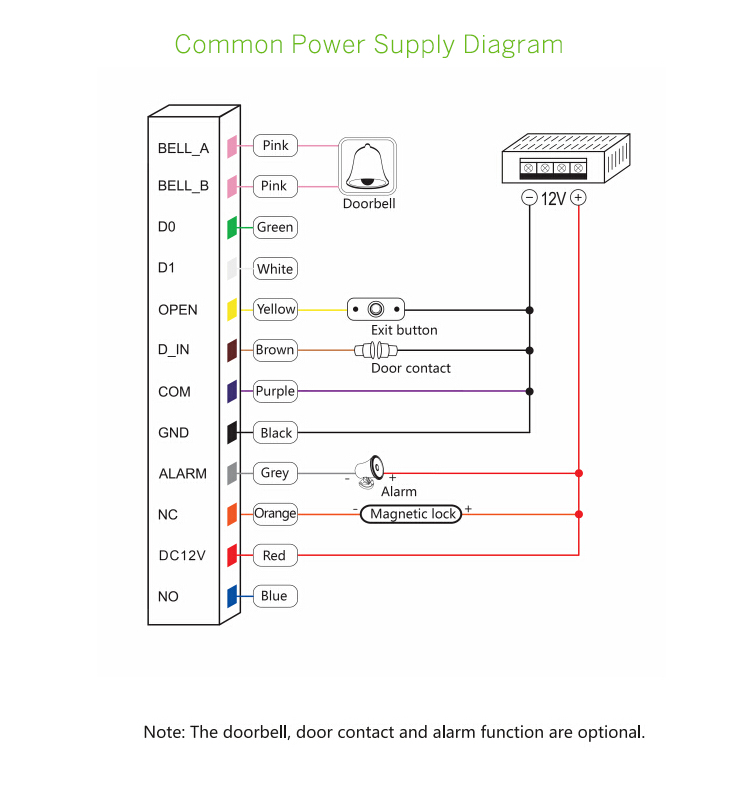

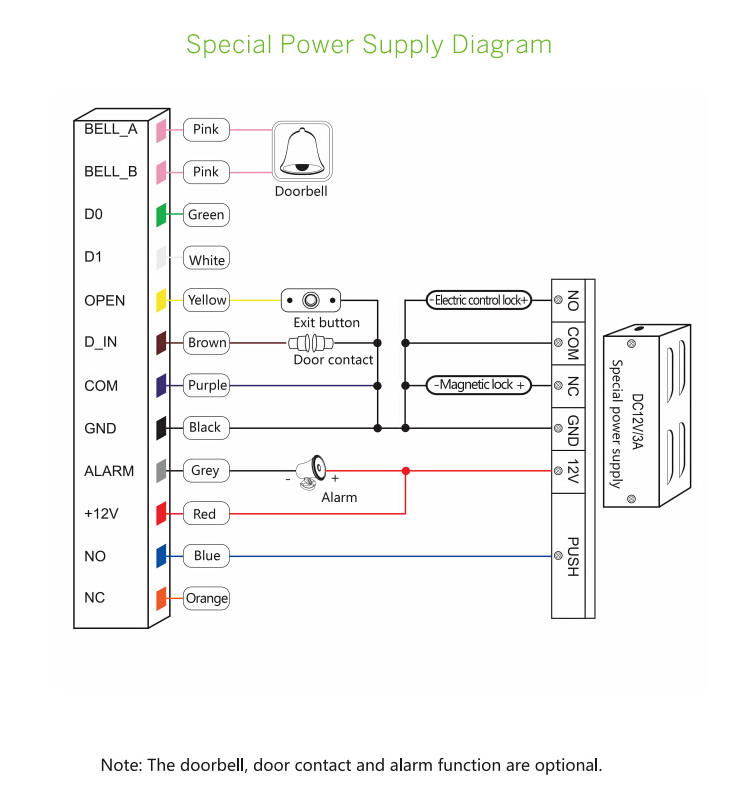

Doorbell interface: Support external wired doorbell
Access ways: Card, Pin code, Card & Pin code
Independent codes: Use codes without related card
Change codes: Users can change codes by themselves
Delete users by card No.: The lost card can be delete by keyboard


Specifications:
Model
T12
Capacity
2000
working voltage
12V DC
Lock Open Current
2A
Identify speed
<=1s
Open mode
Card/ Password,Optional WIFI(APP)
Card Type
IC card (ID card is optional)
Work distance
1-15cm
Work temperatrue
-25 to 55
Waterproof Degree
IP68
Wiegand
input/output

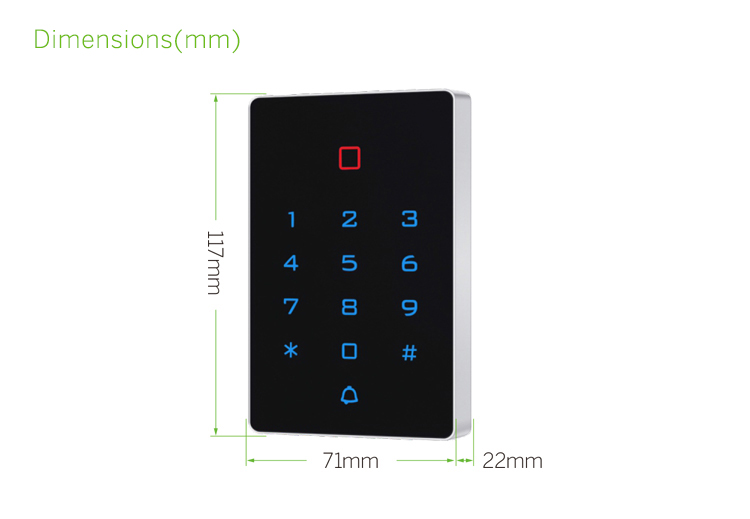

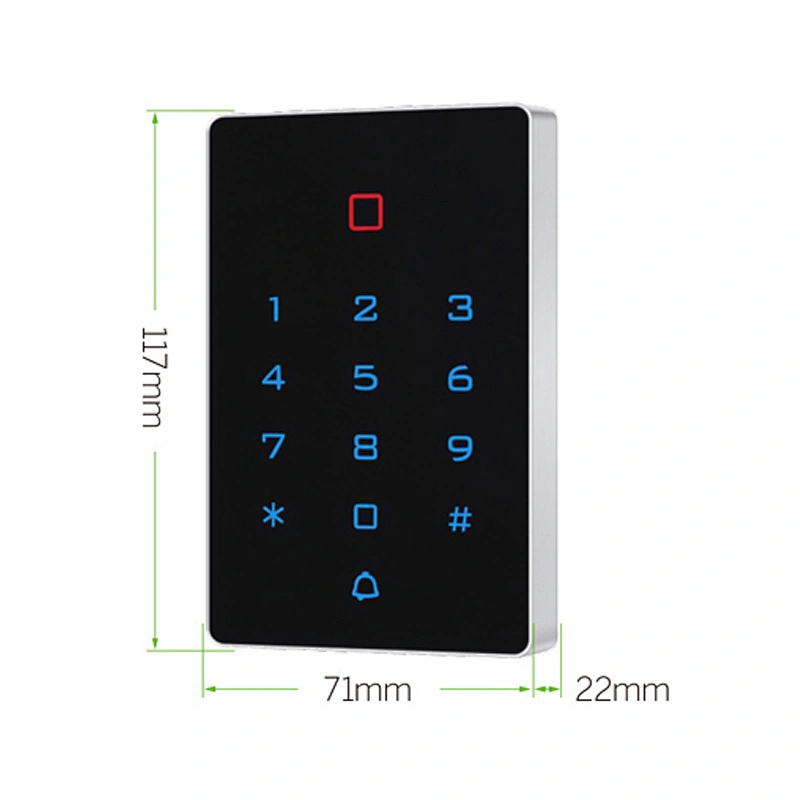

Dimension
117*71*22mm
