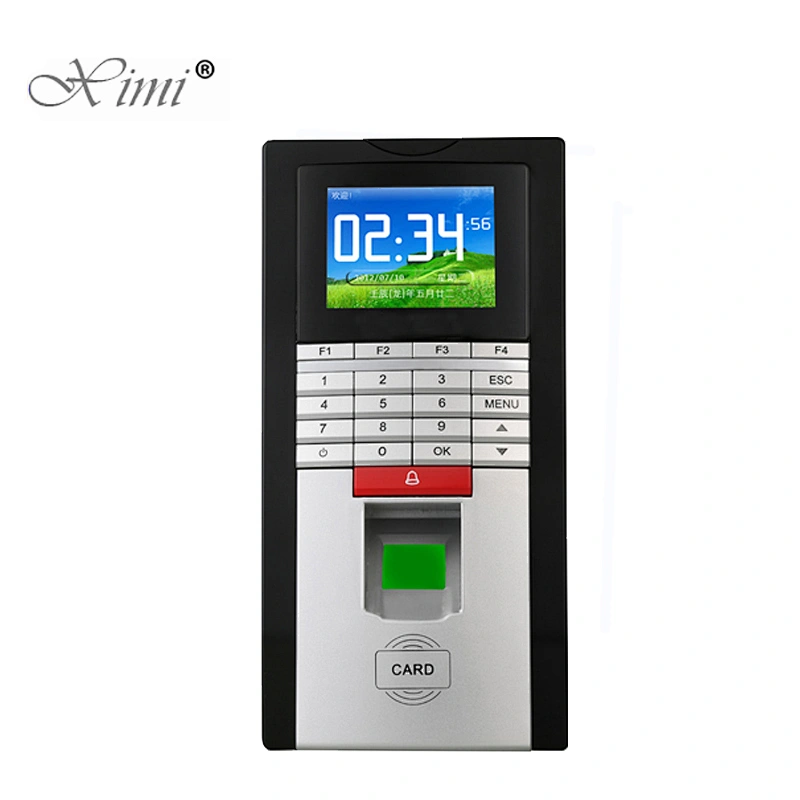

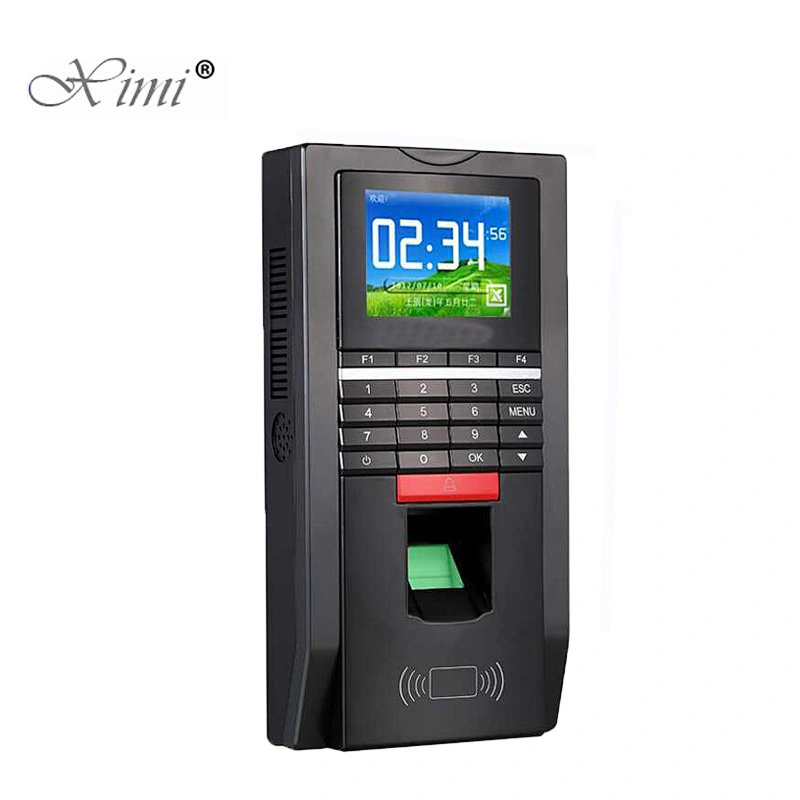

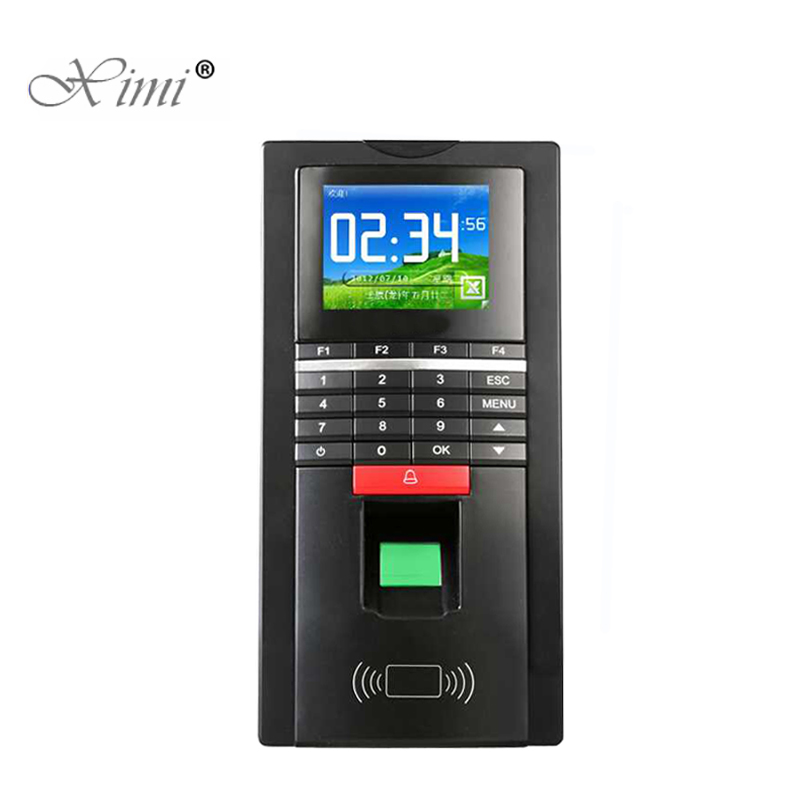

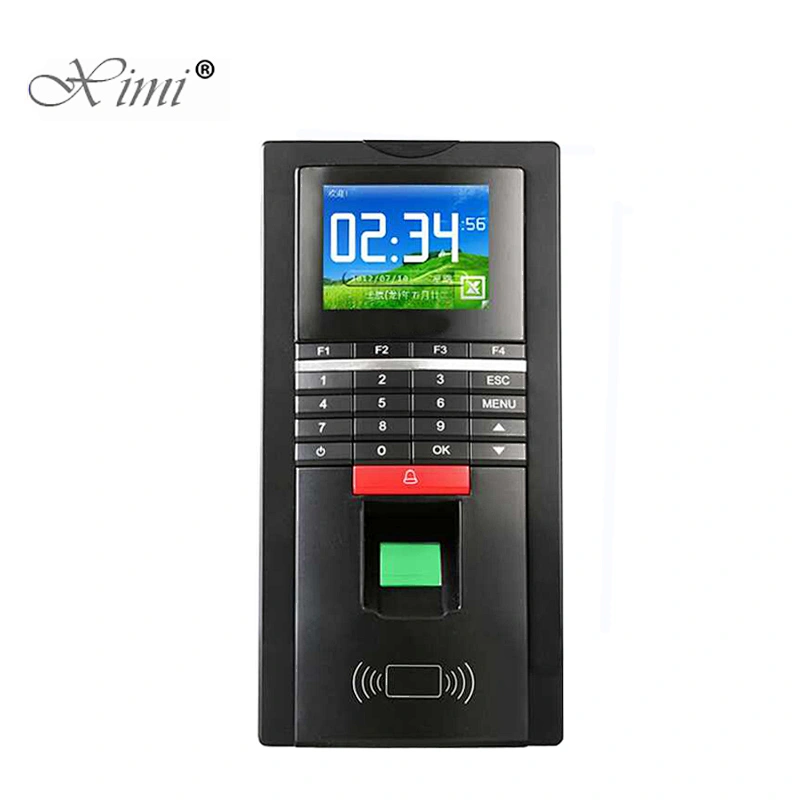

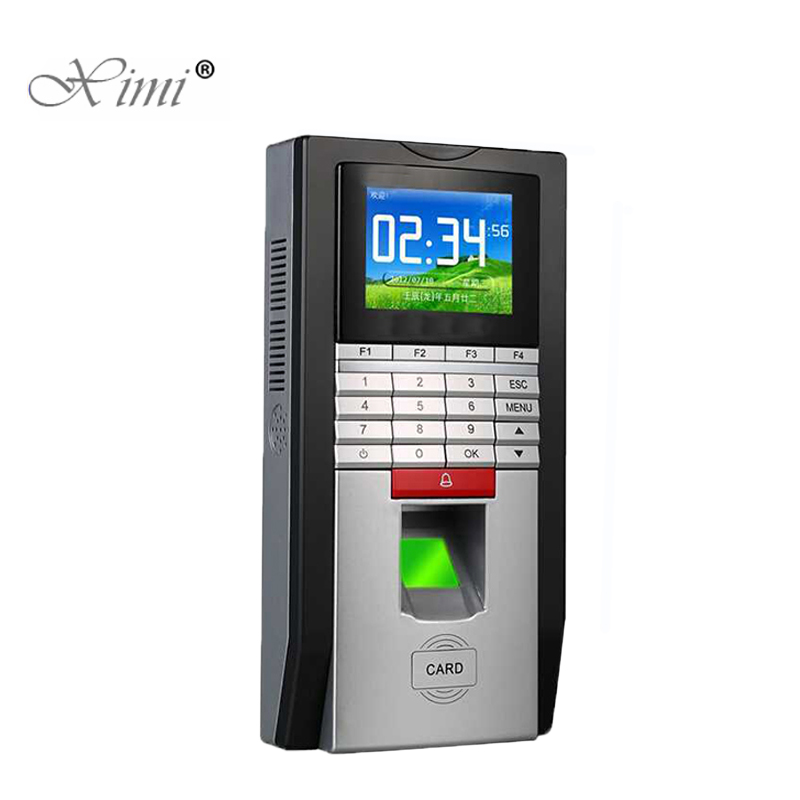

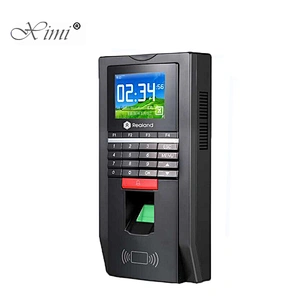

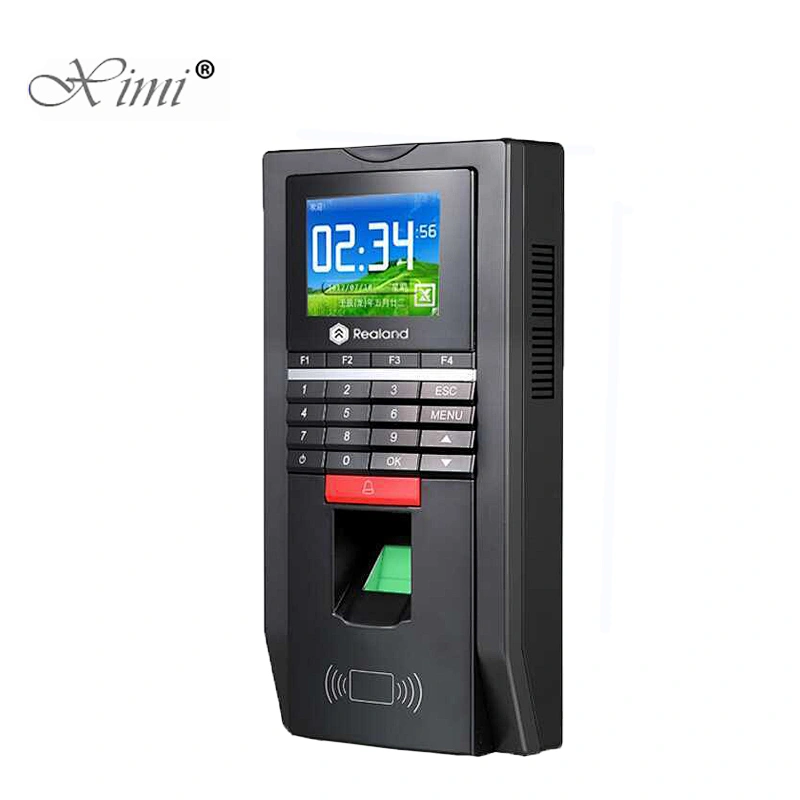

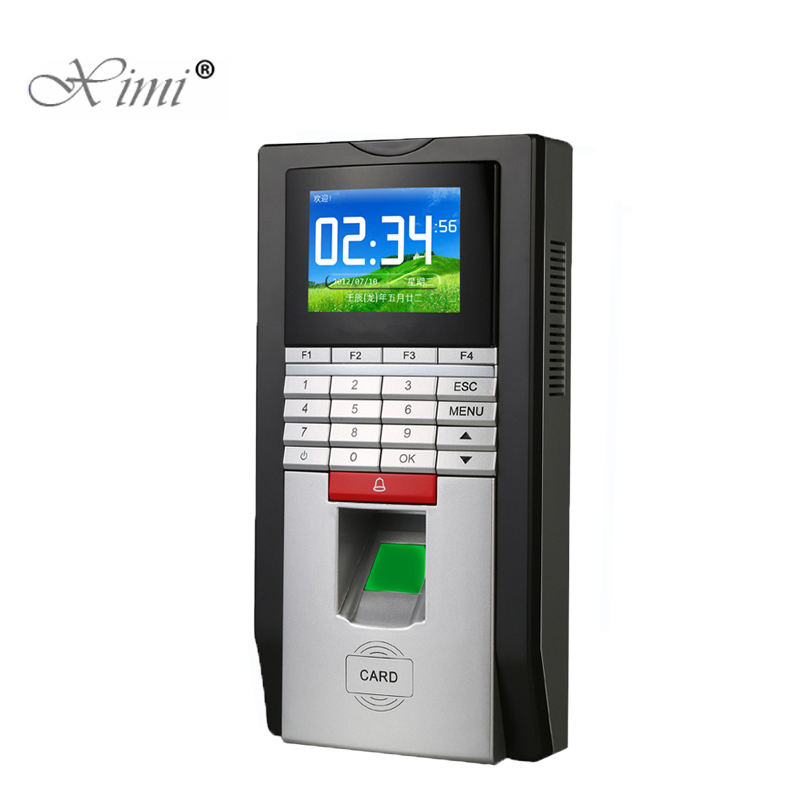

2.8inch TFT screen fingerprint access control
M-F131 is a professional high-end attendance control device which have RFID card & fingerprint authentication. It’s with the leading-edge fingerprint arithmetic in the world, automatically analyze the tiny difference of the latest fingerprints vs. the previous fingerprints and update accordingly to ensure the high accuracy and the optimum speed of fingerprint recognition. High recognition ability for injured and peeled fingers, the identification time is less than 1 second. With multi-level validation, lock combination and anti-pass back ect advanced validating functions. The device includes two set locks for output, two set door release buttons, one set Wiegand 26/34 output and input. It could download and upload data & record by U memory flash, TCP/IP communication function, you could realize access control networking and data collection & sharing freely.
1, It’s with the most advanced fingerprint arithmetic in the world, automatically analyze the tiny difference of the latest fingerprints vs. the previous fingerprints and update accordingly to ensure the high accuracy and the optimum speed of fingerprint recognition, the identification time is less than 1 second.
2, The device is built-in ID card sensor (optional for IC card), validate freely by Card, fingerprint and password combination, access control is more flexible and securely.
With multi-level validation, lock combination and anti-pass back function, it suitable to the high-security places like bank and military ect.

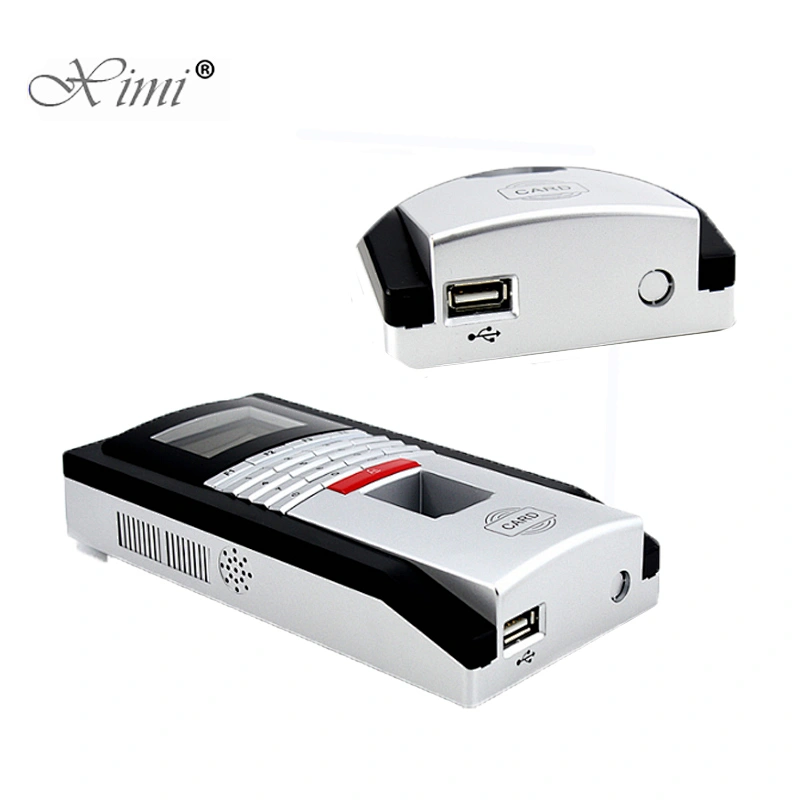

3, Support U disk to download or upload attendance records and fingerprint data. User could enroll the fingerprint in one device, and share the enrollment information with other devices through the USB flash memory.
4, TCP/IP communication, network connection is simple and convenient, support Push Technology, operate access control networking and data collection & share freely.
5, With tamper alarm, over-time door opening alarm ect alarm functions
6, Authentication modes are 1:1 and 1:N, user can register three fingers, max fingerprint capacity is 2,000 enrollment and 50,000 record
7, Support multi development language(VB, C++, C#, Delphi ect) SDK, and ODM/OEM software development
8, Support English, French, Spanish, Korean ect different languages.
Model | M-F131 |
LCD Screen | 2.4 inch TFT (320*240) Color Screen |
Fingerprint Sensor Resolution | 500DPI (Optical sensor) |
Hardware Platform | ZDC2911 |
Algorithm Version | RSFv5.1 |
CPU | ARM926EJ CPU, Running Frequency: 200MHZ |
Communication | TCP/IP, RS485, USB Memory Disk |
User Capacity | 1,000 (optional for 2,000 or 3,000) |
Records Capacity | 100,000 |
Software OS | XP/Win2003/Vista/Win7/Win8 (32bit / 64bit) |
Identification Time | < 1 S |
Authentication Method | Fingerprint/ RFID Card (125Khz)(could customize Mifare card)/Password |
Language | Chinese / English / Spanish/Portuguese/ German (could customize others) |
Bell | Built-in timing bell(can connect to external timing bell) |

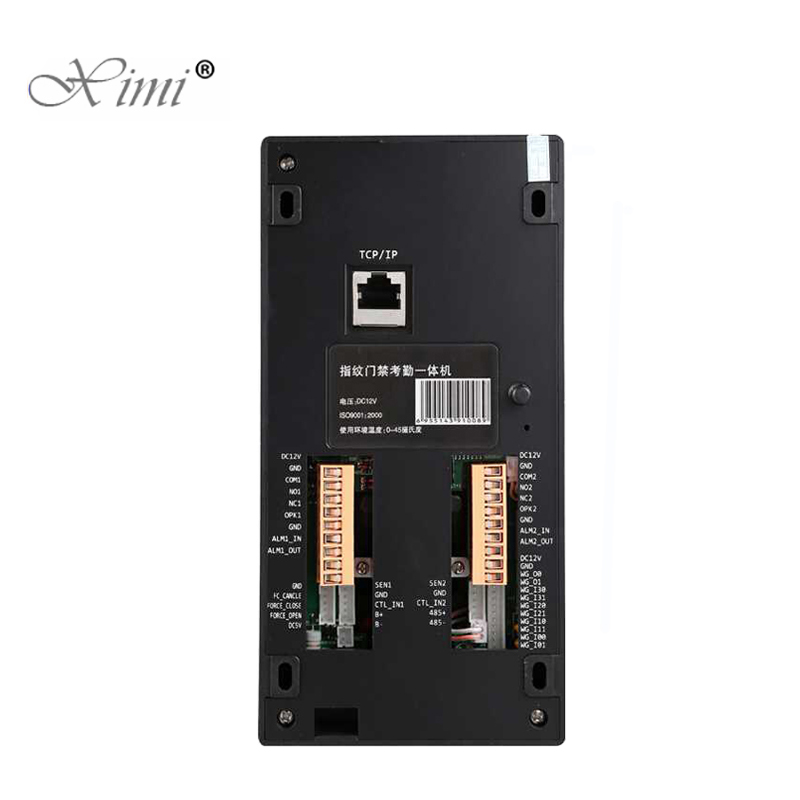

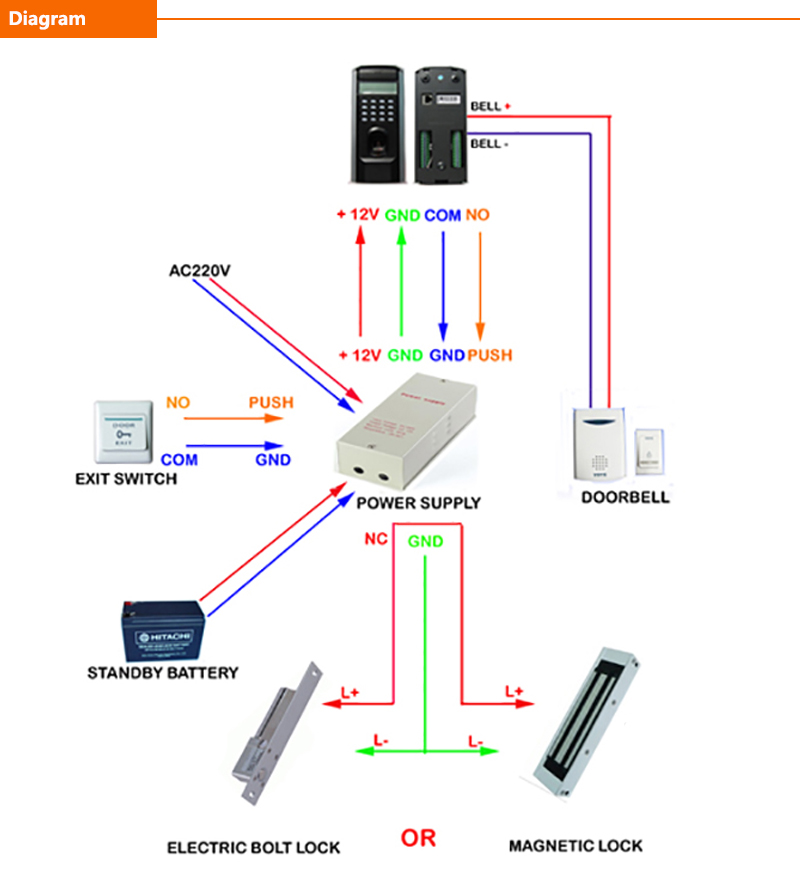

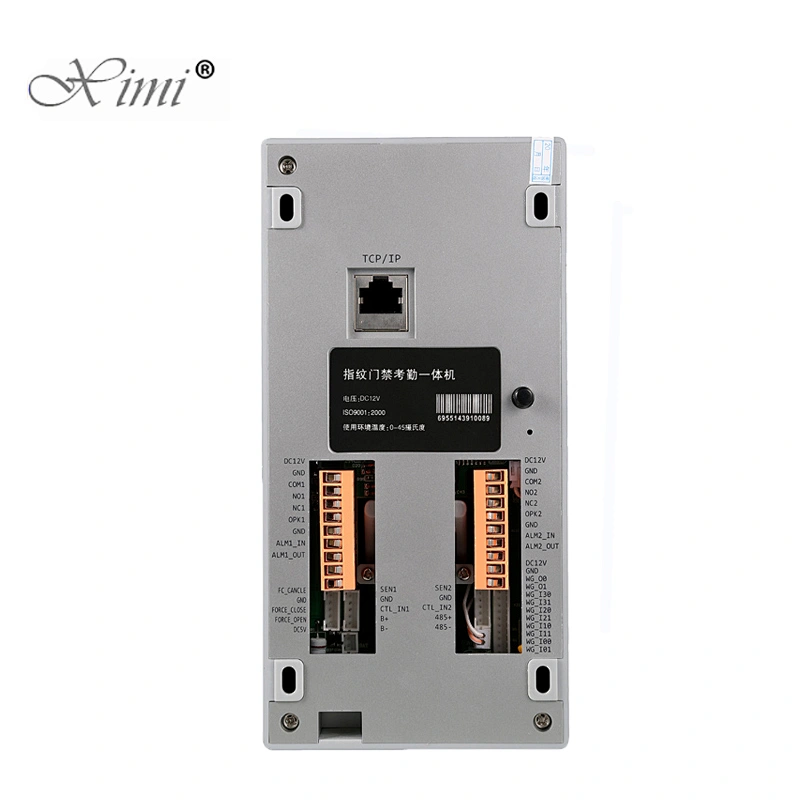

Access Control Interface | Wiegand26/34, Door Lock, Siren, Release Button(can connect 2 groups), Doorbell, Door Sensor |
Professional Access Function | Open door by multilevel verification, anti-pass back |
Power | DC 12V/2A |
FRR | <1% |
FAR | <0.00001% |
Operating Mode | Off-line/On-line |
Authentication Mode | 1:1, 1:N |
Operating environment | Operating Temp: 0°C-50°C, Humidity:80% |
Certificates | CE,,FCC,UL,Type Inspection Report of Chinese Police Product |
Dimension(L*W*H)mm | Terminal - 181*91*36mm Package – 246*164*71mm |
Weight | Terminal – 0.48 Kg Package – 0.812Kg |
