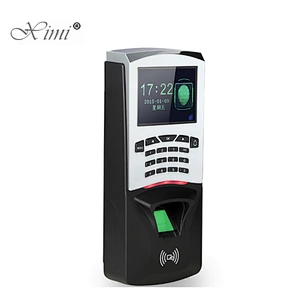

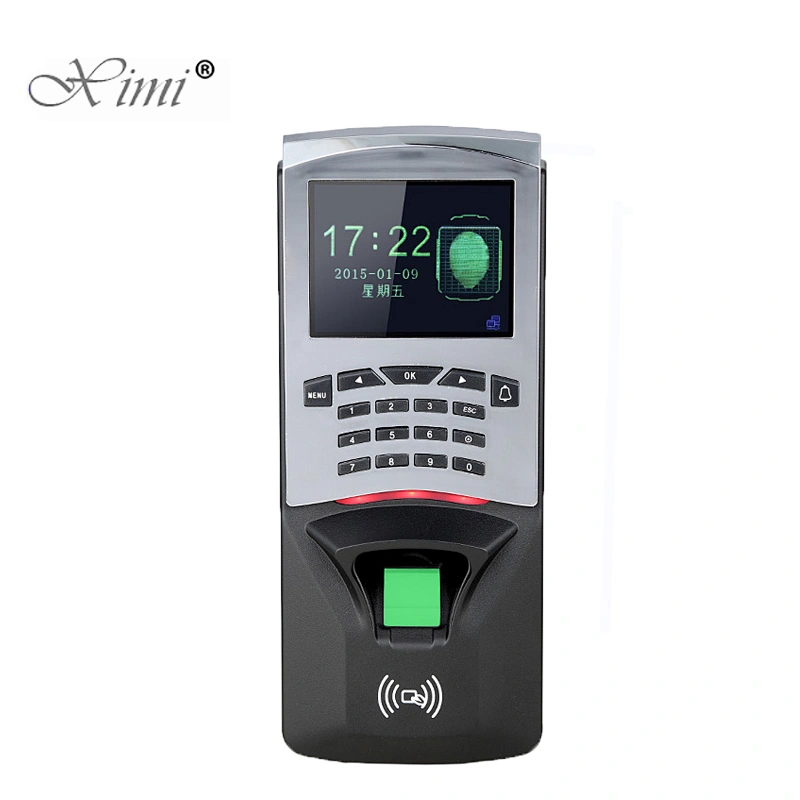

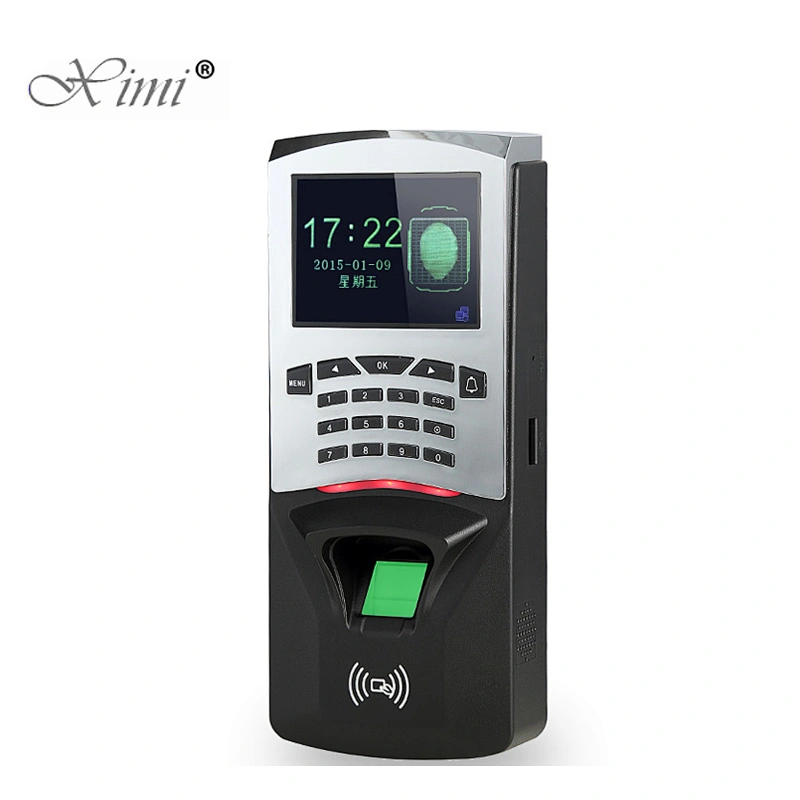

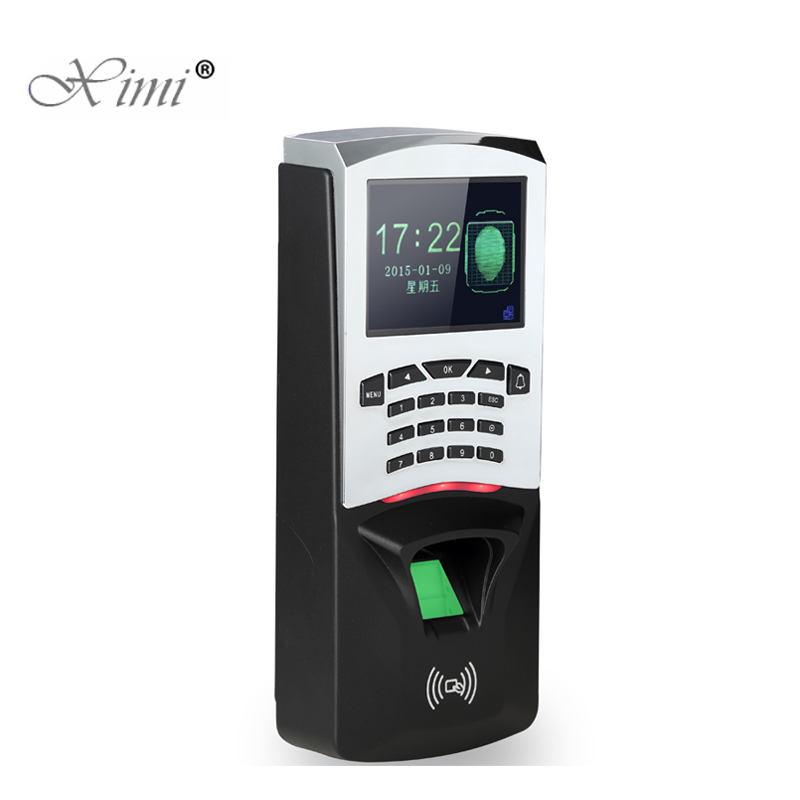

2.8inch TFT screen fingerprint access control
F807 is a professional high-end attendance control device which have fingerprint authentication. It’s with the leading-edge fingerprint arithmetic in the world, automatically analyze the tiny difference of the latest fingerprints vs. the previous fingerprints and update accordingly to ensure the high accuracy and the optimum speed of fingerprint recognition. High recognition ability for injured and peeled fingers, the identification time is less than 1 second. With multi-level validation, lock combination and anti-pass back ect advanced validating functions. The device includes one set locks for output, one set door release buttons, one set Wiegand 26/34 output and input. It could download and upload data & record by U memory flash, TCP/IP communication function, you could realize access control networking and data collection & sharing freely.
Model | F807 |
LCD Screen | 2.8 inch TFT |
Fingerprint Sensor Resolution | High total reflection optical collector |
Hardware Platform | ARM architecture Industrial |
Algorithm Version | Fingerprint8.0 |
CPU | ARM architecture Industrial |
Communication | TCP/IP, RS485, USB Memory Disk |
User Capacity | 1,000 |
Records Capacity | 100,000 |
Software OS | XP/Win2003/Vista/Win7/Win8 (32bit / 64bit) |
Identification Time | < 1 S |
Authentication Method | Fingerprint/ RFID Card (125Khz)(could customize Mifare card)/Password |
Bell | Built-in timing bell(can connect to external timing bell) |
Access Control Interface | Wiegand26/34, Door Lock, Siren, Release Button(can connect 2 groups), Doorbell, Door Sensor |
Professional Access Function | Open door by multilevel verification, anti-pass back |
Power | DC 12V/2A |
FRR | <1% |
FAR | <0.0001% |
Operating Mode | Off-line/On-line |
Authentication Mode | 1:1, 1:N |
Operating environment | Operating Temp: 0°C-50°C, Humidity:80% |
Certificates | CE,,FCC,UL,Type Inspection Report of Chinese Police Product |
Dimension(L*W*H)mm | 193*82*30(mm) |
