Antenna:8dBi gain circular polarization antenna( or customize)
Reading distance:0-5M (up to tags)/0-15M
Size:235*235*57mm/450*450*57mm
Frequency:860-960mhz
Protocol:ISO 18000-6C
Place of Origin:CN;GUA
Brand Name:Ximiir
Product Description

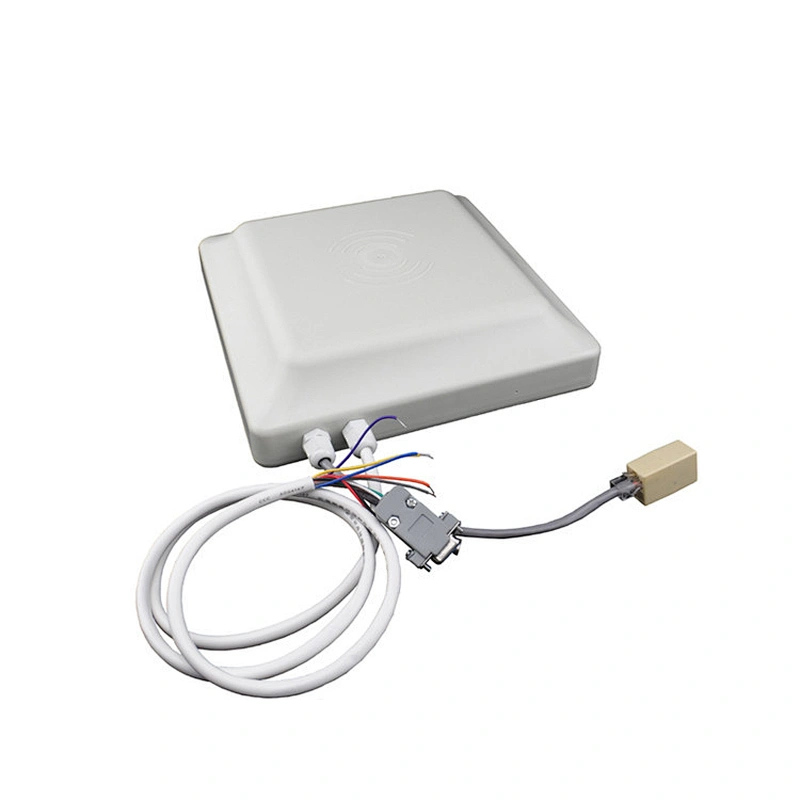

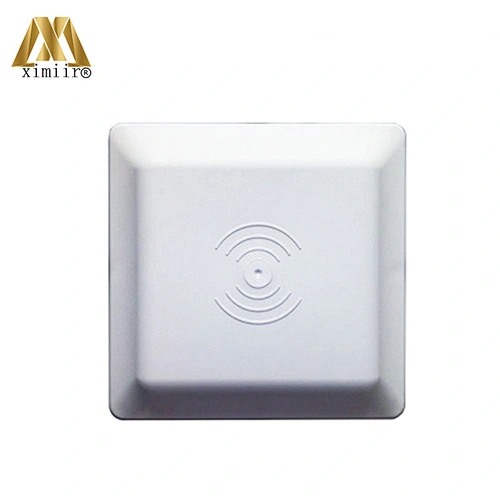

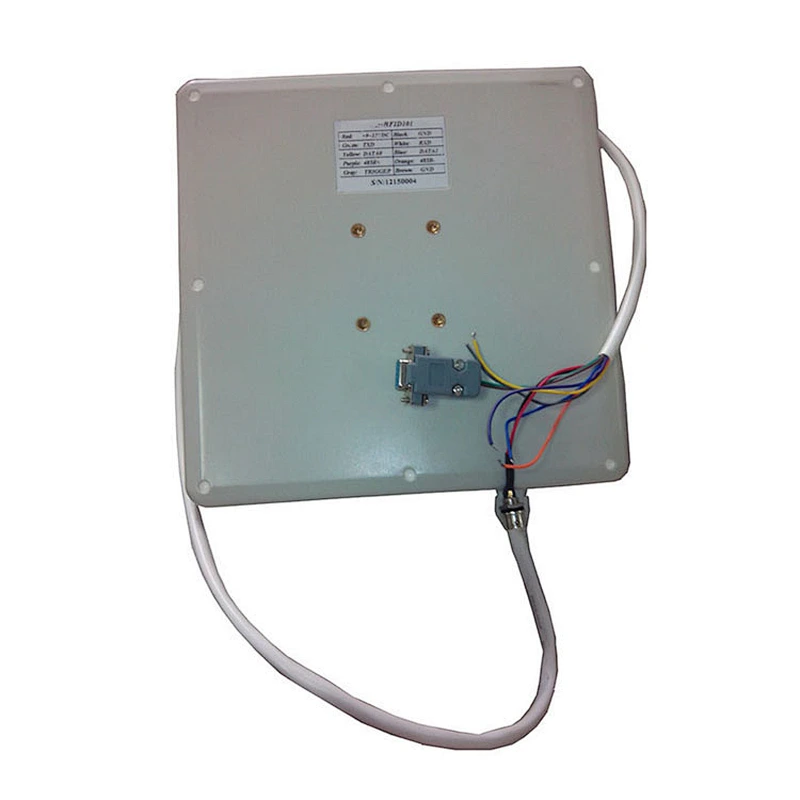

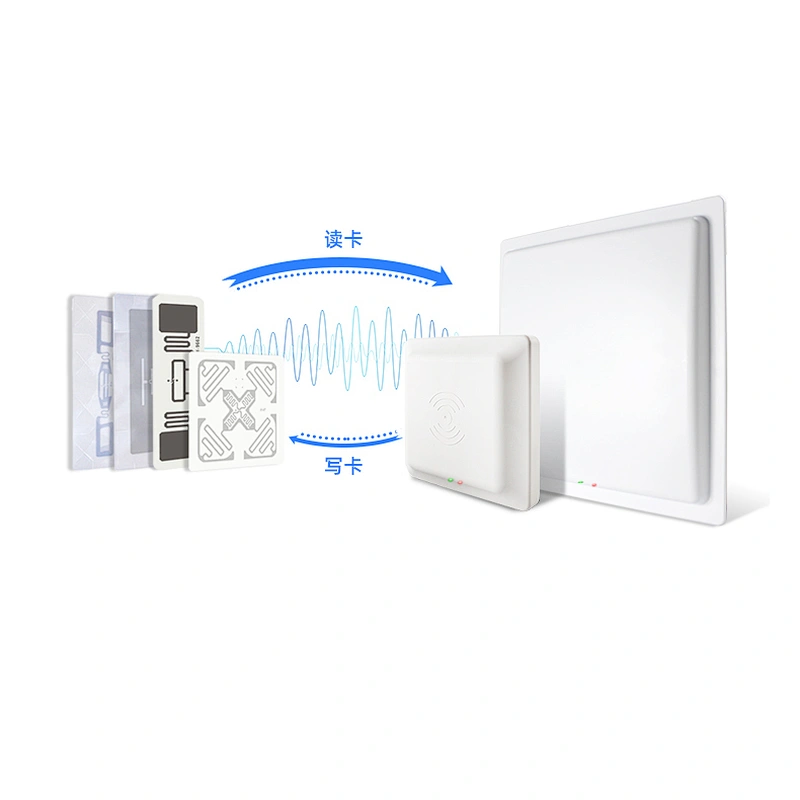

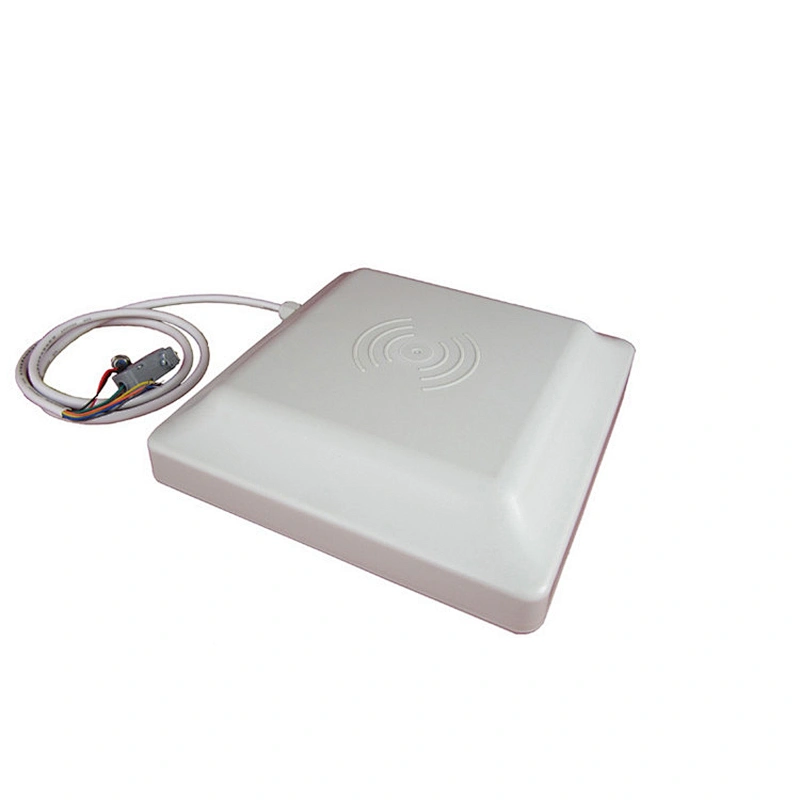

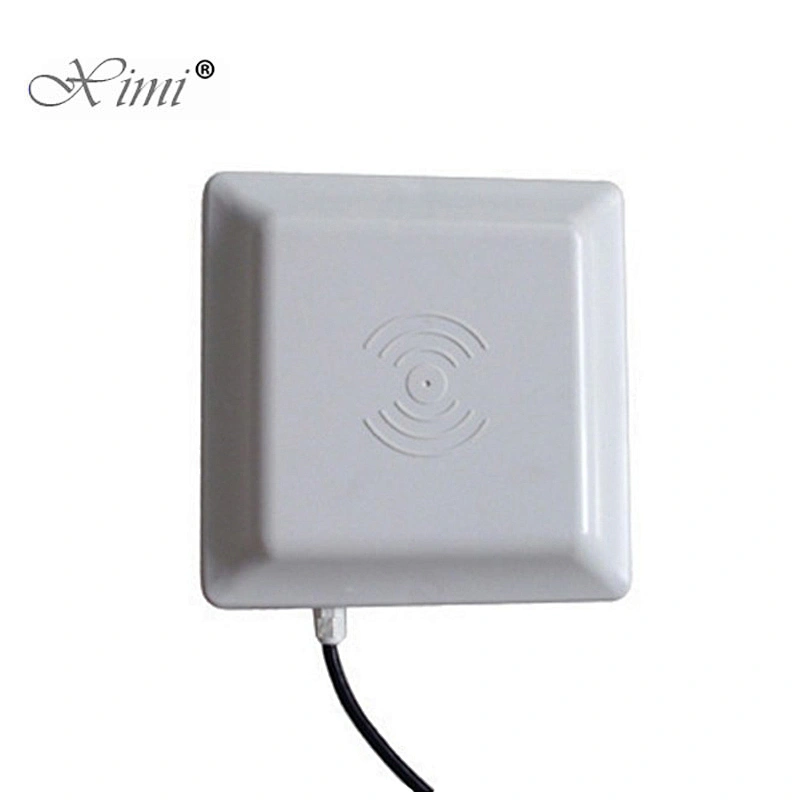

G20 is a high performance UHF RFID integrated reader. It is designed upon fully self-intellectual property. Based on proprietary efficient digital signal processing algorithm, it supports fast tag read/write operation with high identification rate. It can be widely applied in many RFID application systems such as logistics, access control, anti-counterfeit and industrial production process control system.
Features
1. Parking management: Long range intelligent parking management and automatic charge without stop the car 2. Production line management: Goods identification for production flow
3. Auto Access control: Long range access controlmanagement for custom, sea port
4. Logistics and warehouse management
5. People auto registry for important meeting or exhibition 6. Automatic weighing and data capture.
Specification
Model
G20/G45
Size(mm)
235x235x57mm/450*450*57mm
Working Voltage
DC +12V
Power:Max
12W
Frequency range
840-960MHZ(customized)
Working Distance
0-6M/0-15M
Communication interface
RS232/RS485;Wiegand26/34; TCP/IP/3G(optional)
FM Mode
(FHSS)or fixed frequency option
Working mode
Timing automatic,External trigger control or software issued command RF
Output
30dBm (adjustable)
Protocol
ISO18000-6C(EPC Class1 Gen2)or ISO18000-6B
AntennaSoftware
SDK,VBVC Demo
Optional
8dBi/12dBigain circular polarization antenna( or customize)
