- Place of Origin:CN;GUA
- Brand Name:XIMI

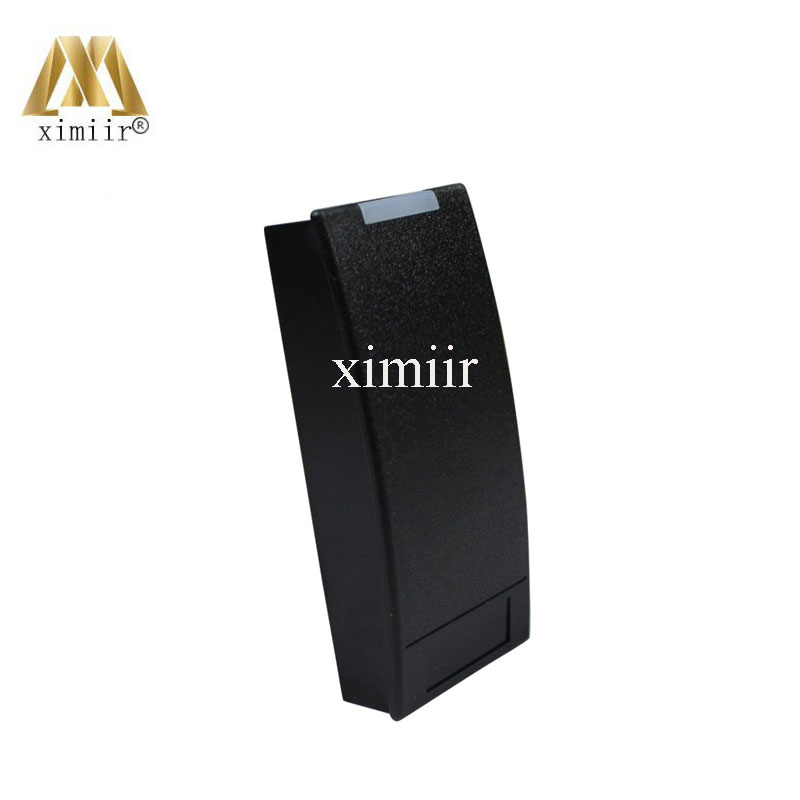

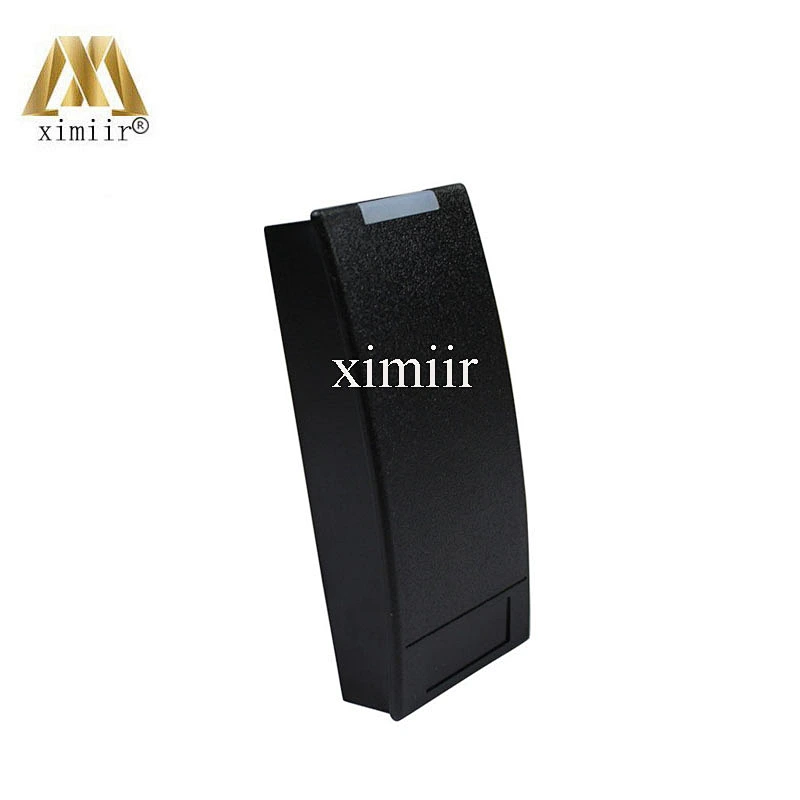

- Model Number:N40
- Size:100 x 41x 20mm
- Color:Black
- Voltage:DC5~16V
- Current:≤100mA
- Output Format:Wiegand 26/34,RS485/232
- Card Type:EM-ID/Mifare-IC
- Communication Distance:WG≤100M,RS485≤1200M

Strong resistance to metal mask and readers strong interference ability;
Advanced anti freezing circuit design, anti surge protection, mistake proofing protection, stable performance;
Using pure digital rf base station chip imports, error free design;
Adopt the intelligent sound and light control mode;
In line with international standards of connection mode;
Buzzer sound is ringing loud, would not be disturbed transposition;
Long transmission distance, up to 100 meters;
Low temperature resistant, high temperature resistant ability

Work mode Weigand26
Read card speed < 0.2 seconds
Clock interval < 0.5 seconds
Induction distance 5-15 cm
Read the card type ID card
Frequency of 125 KHZ/card reader
Working temperature 25"C to 75"C
Working humidity 10% to 90%
Built-in antenna has a
Built-in LED red (blue) green double color LED
Built-in speaker buzzer
Support card ID card
Working voltage DC9-16 v
Working current < 60 ma
Weigand26 communication way
Communication distance d heptyl 100 meters, 1200 meters RS485 format, RS232 format 10 meters, 10 meters ABA format
Transmission way Real-time transmission
Device color Yellow/black/white/champagne/dark gray
Shell material of PVC and plastic spraying - > internal can be black resin adhesive (compliance with UL certification of environmental protection completely sealed, epoxy resin can effectively waterproof.)
