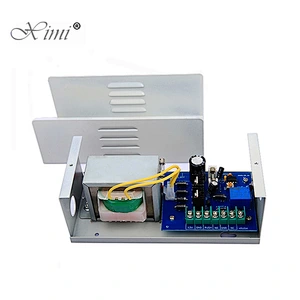

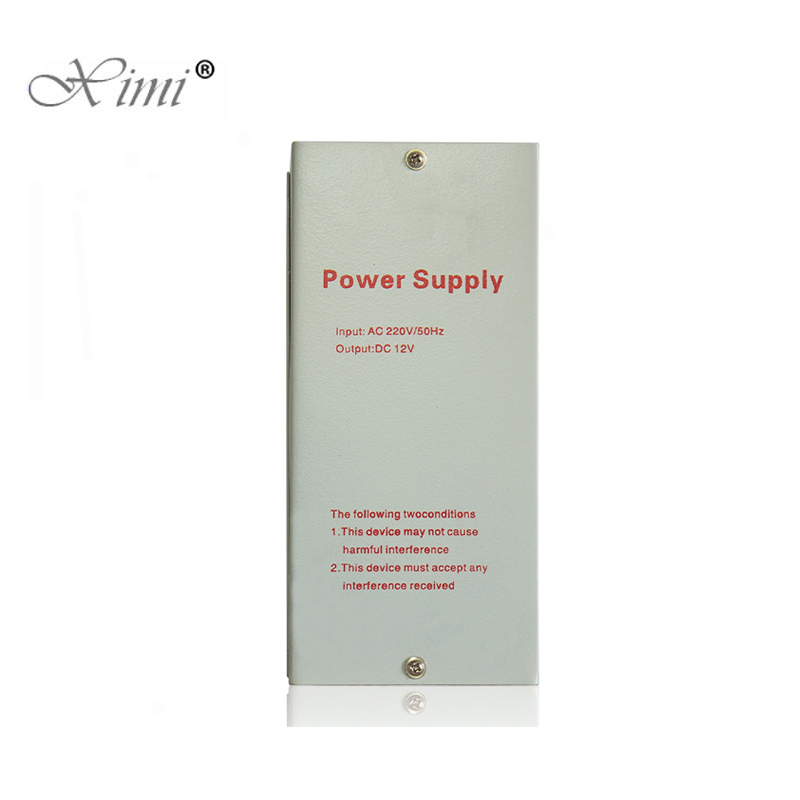

  5. 12V3A access control power supply different country use 110-240V switch power supply AC230V power supply

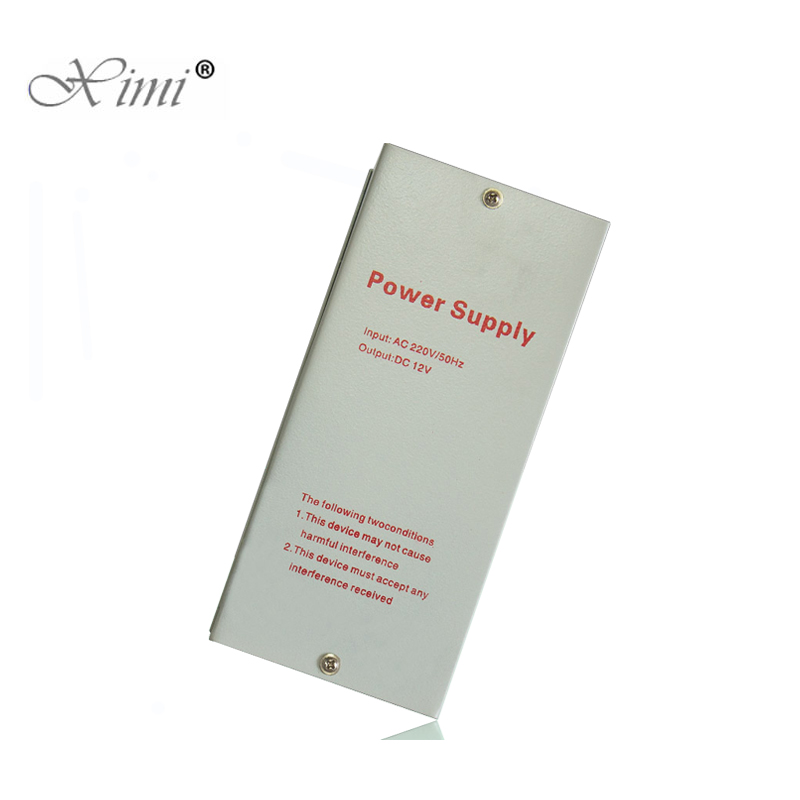

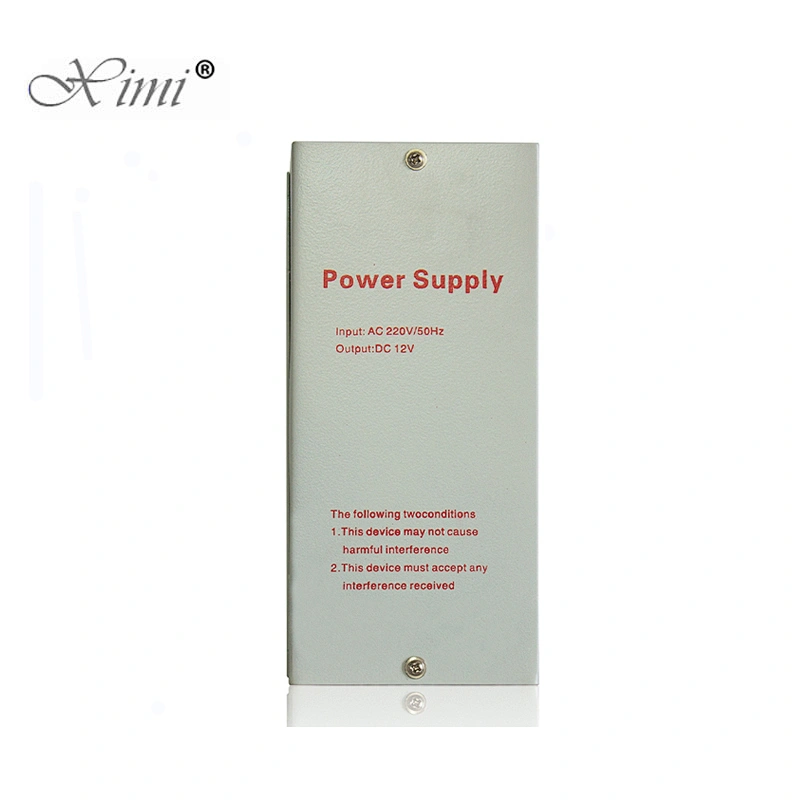

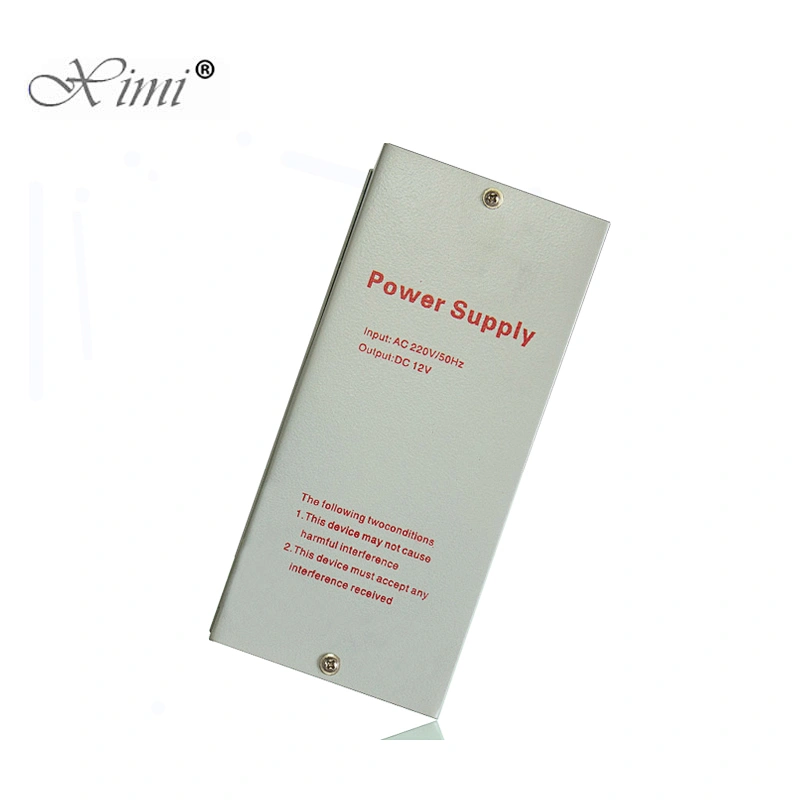

12V3A access control power supply different country use 110-240V switch power supply AC230V power supply
12V3A access control power supply different country use 110-240V switch power supply AC230V power supply
12V3A access control power supply different country use 110-240V switch power supply AC230V power supply
12V3A access control power supply different country use 110-240V switch power supply AC230V power supply
12V3A access control power supply different country use 110-240V switch power supply AC230V power supply

12V3A access control power supply different country use 110-240V switch power supply AC230V power supply

Model NO.：P02
USD8.00-USD8.50
  • DeliveryFOB
  • Minimum order quantity20 pieces
  • Supply Ability100000 pieces / Month
  • Country of OriginShenzhen
  • Stock Time3-30 Days
    • Like Favorites
    Categories: Power supply
    • Place of Origin:CN;GUA
    • Output Power:1 - 50W
    • Output Type:DUAL
    • Brand Name:XIMI
    • Output Current:3A
    • Output Voltage:12V
    • Model Number:P02
    • Output Frequency:50-60hz
    • Input Voltage:110-240v
    • AC input voltage:AC110V-240V

    1 ) AC input voltage AC110V-240V;
    2 ) DC output voltage of 12V;
    3 ) Output current 3A ( largest ) ;
    4 ) Output voltage accuracy ± 1%;
    5 ) ripple voltage Up ≤ 50mV;
    6 ) Output Power : 50W.

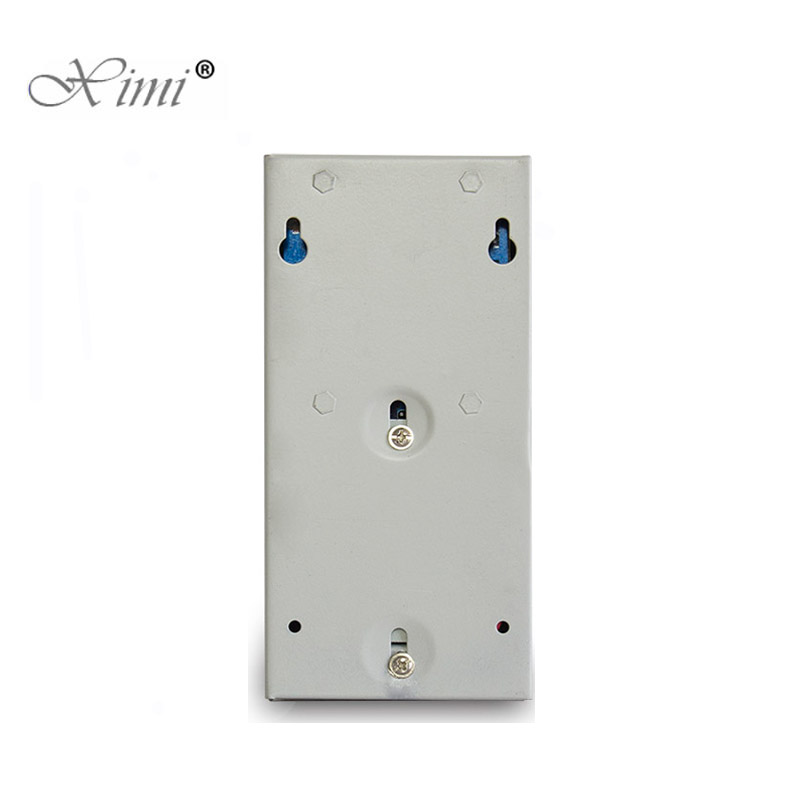

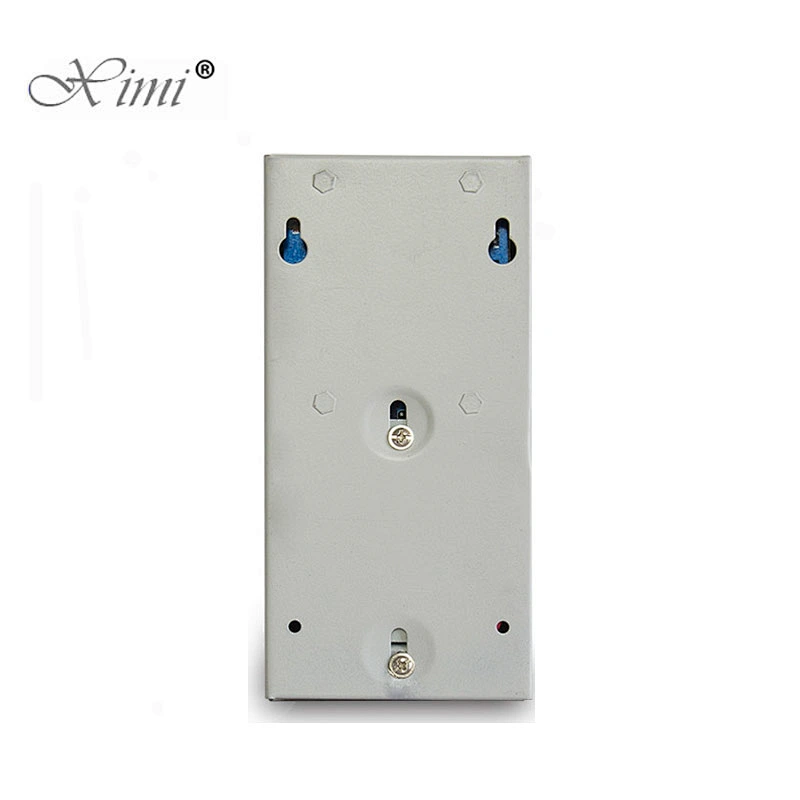

    7 ) The outer steel Dimensions :120 * 95 * 38 mm;
    8 ) Weight : 0.4kg; Protection Level : 2

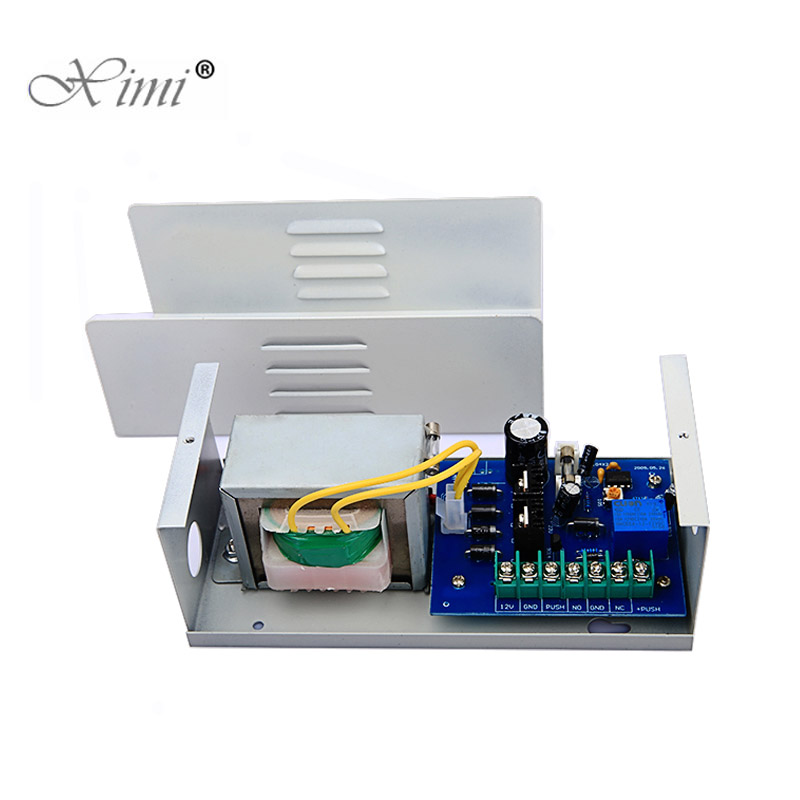

    9 ) Fourth, the output terminal wiring diagram: Figure

    1-3: NO terminal and COM terminal , normally open no output , the key trigger output DC12V, connected electronically controlled lock
    ( 0-15 seconds delay , a positive , three negative ) ;
    2-3: NC terminal and COM terminal , normally closed output DC12V, after the power button is triggered , then the electric or magnetic latch
    Power locks ( 0-15 seconds delay , 2 positive, 3 negative ) ;
    4-5: DC12V output voltage regulation, 4 is positive , 5 negative ;
    5-6: open button input terminal ( for negative power supply ) , which can be accessed switch output ( relay output, low ) control
    Electric lock access control system ;
    5-7: open button input terminal ( on the positive power supply ) , which can be accessed switch output ( relay output, high level ) control
    Electric lock access control system ;
    8-9: 12V input voltage door, dedicated to the direct control of the output voltage electric lock access control ;











    • Model Number：P02
    • Brand Name：Ximiir
    • Place of Origin：China
