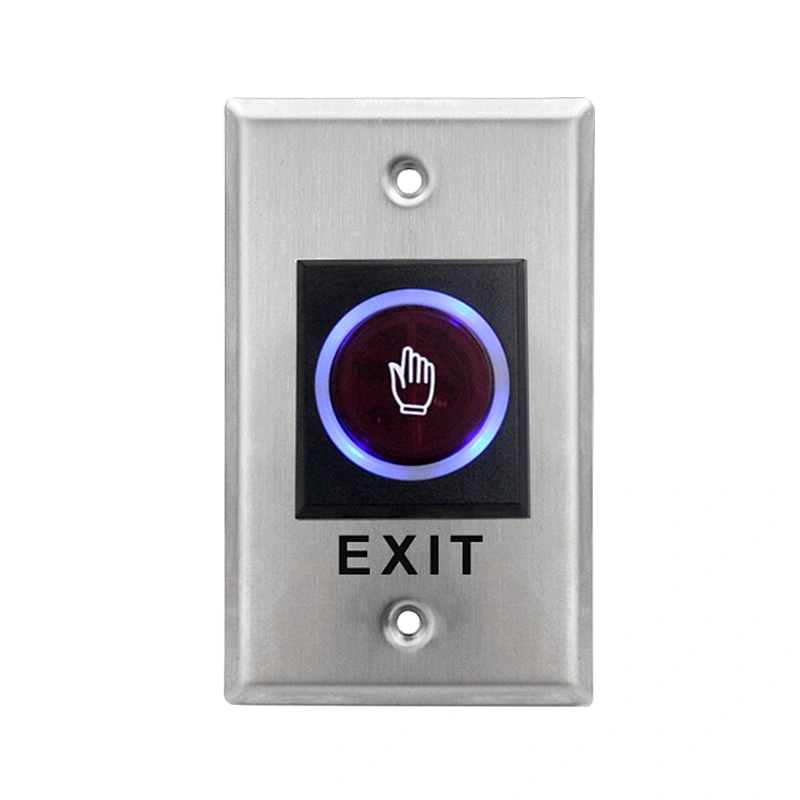

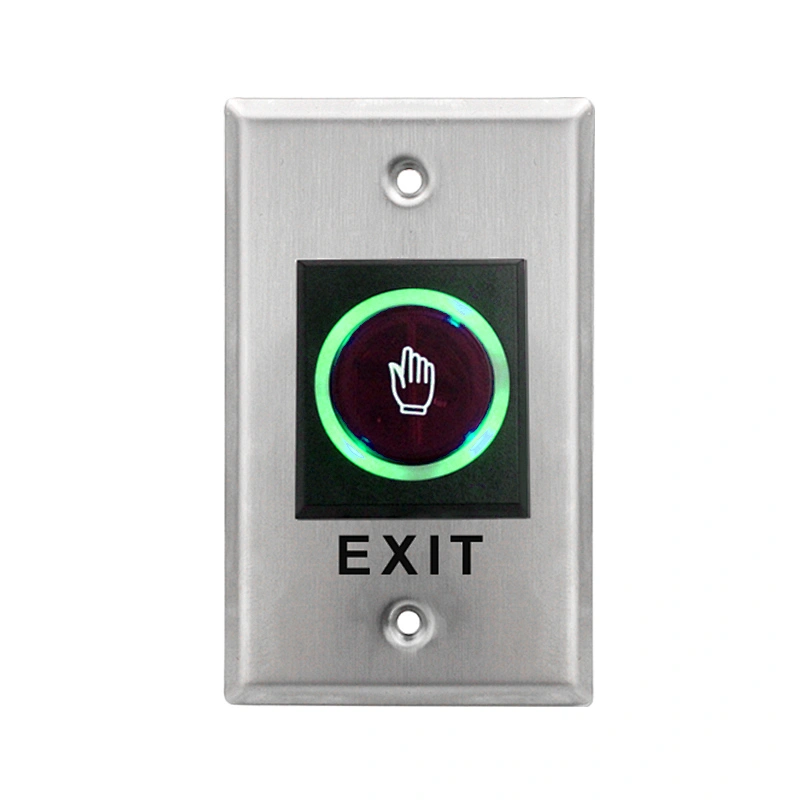

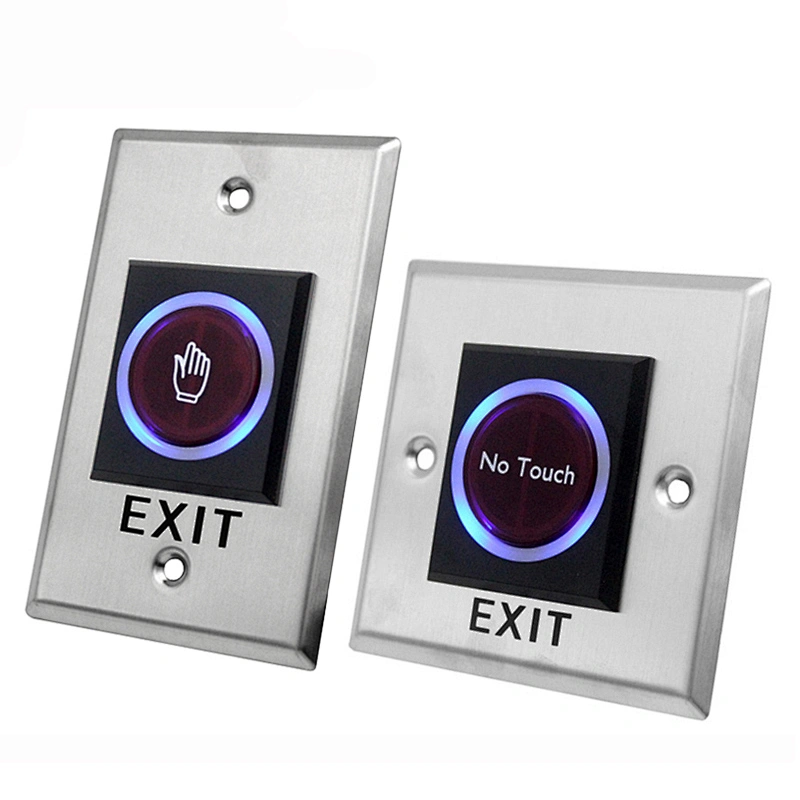

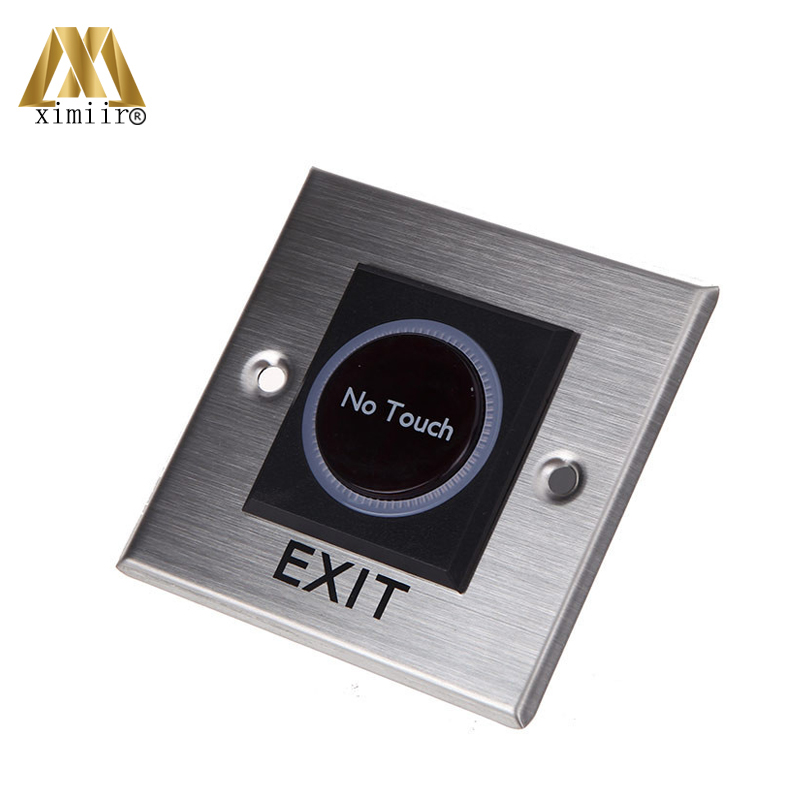

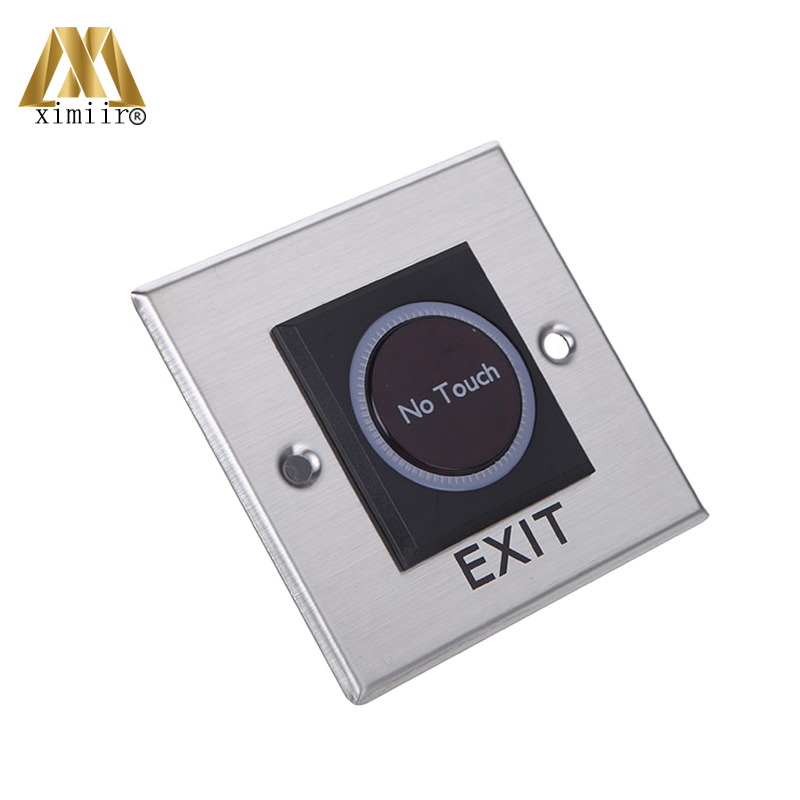

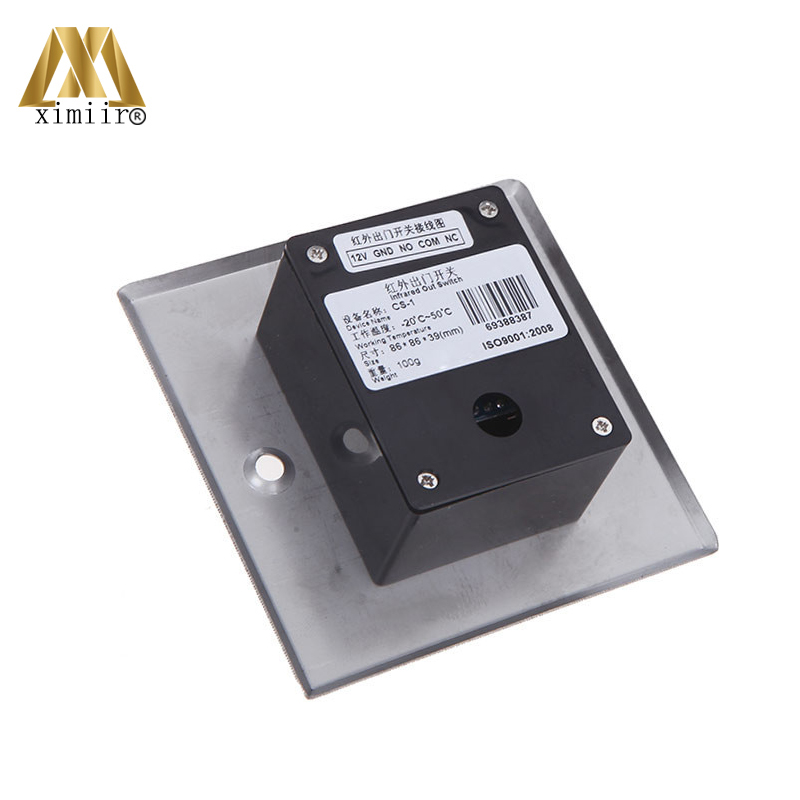

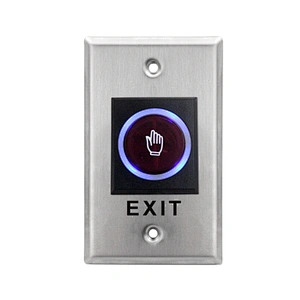

  5. Touchless Infrared Exit Button Door Switch For Open The Door Access Control System Infrared Door Button E09/E10

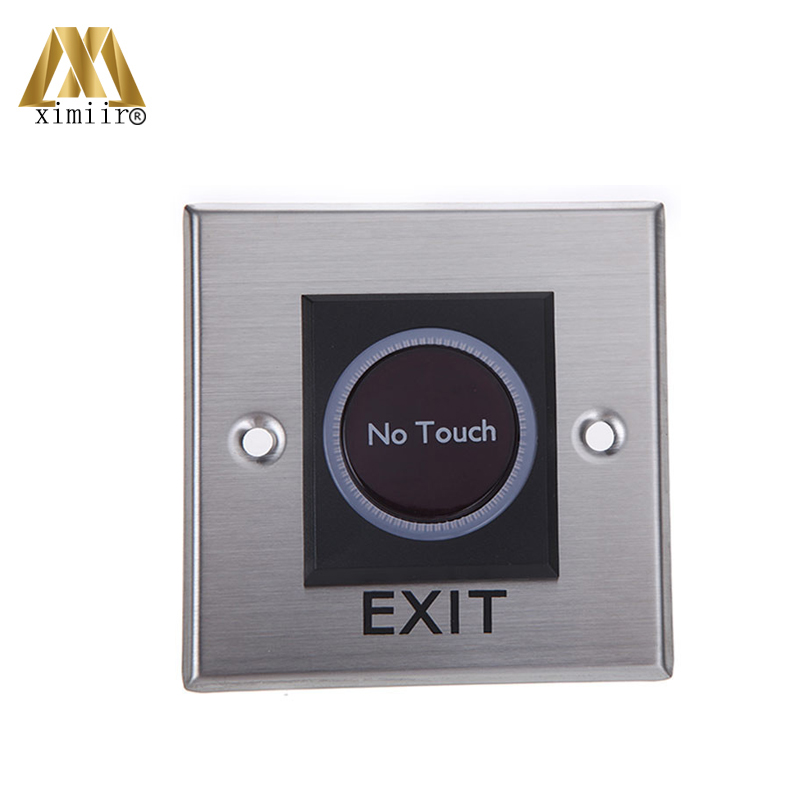

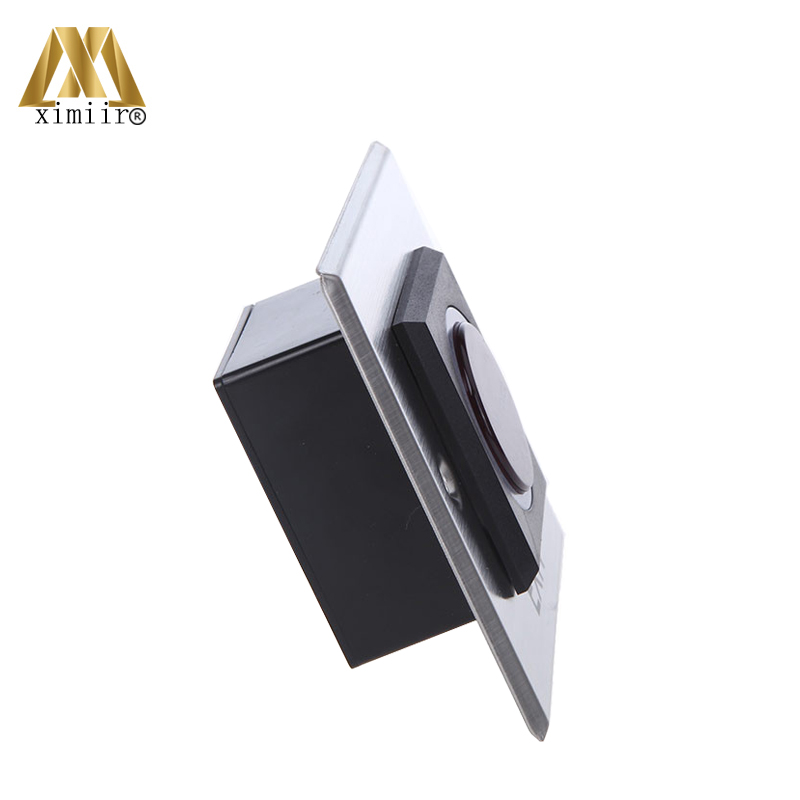

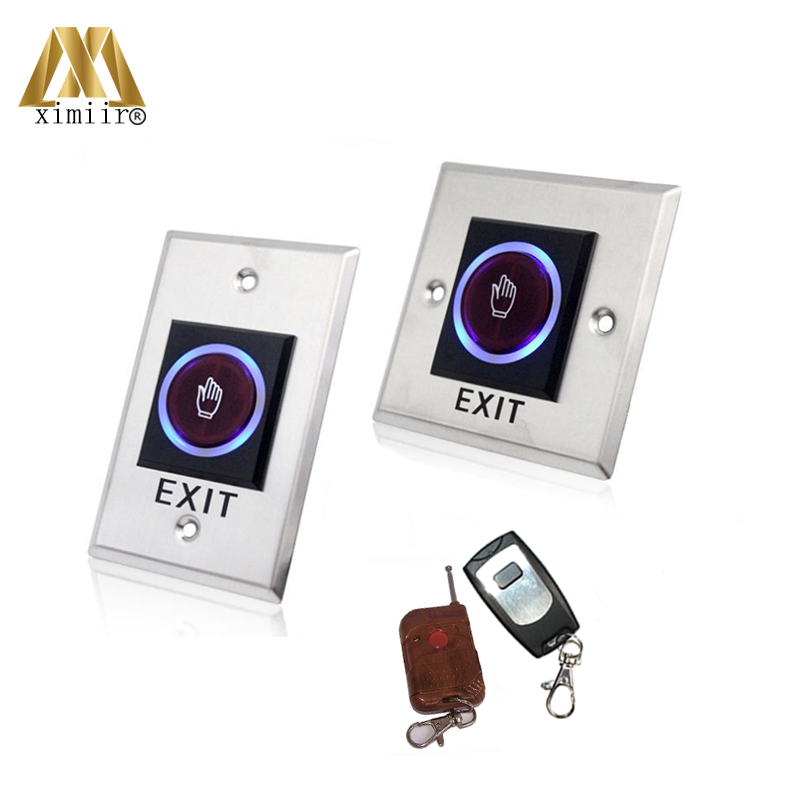

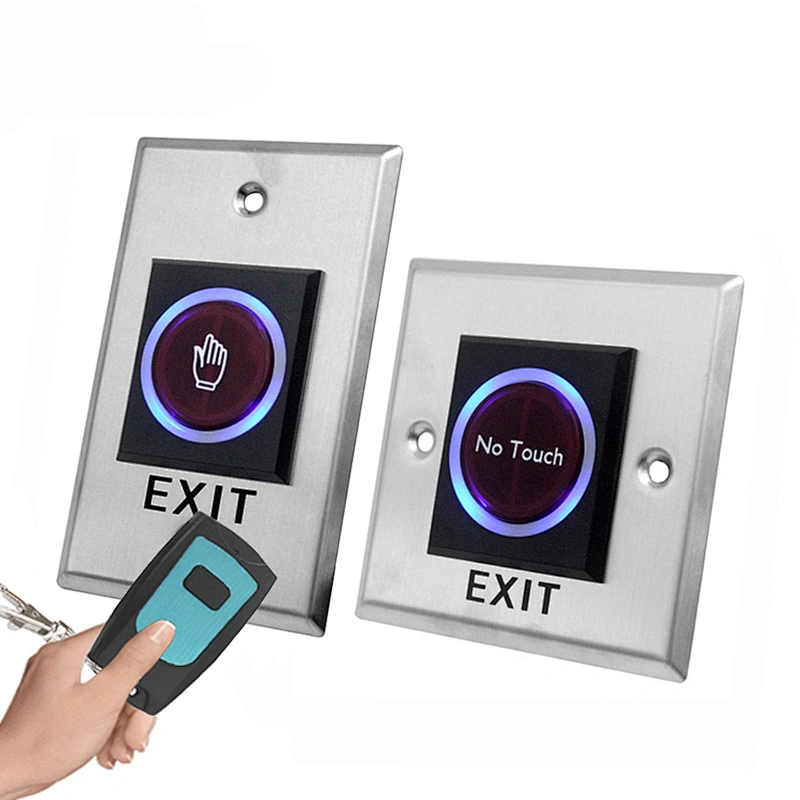

Touchless Infrared Exit Button Door Switch For Open The Door Access Control System Infrared Door Button E09/E10
Touchless Infrared Exit Button Door Switch For Open The Door Access Control System Infrared Door Button E09/E10
Touchless Infrared Exit Button Door Switch For Open The Door Access Control System Infrared Door Button E09/E10
Touchless Infrared Exit Button Door Switch For Open The Door Access Control System Infrared Door Button E09/E10
Touchless Infrared Exit Button Door Switch For Open The Door Access Control System Infrared Door Button E09/E10
Touchless Infrared Exit Button Door Switch For Open The Door Access Control System Infrared Door Button E09/E10
Touchless Infrared Exit Button Door Switch For Open The Door Access Control System Infrared Door Button E09/E10

Touchless Infrared Exit Button Door Switch For Open The Door Access Control System Infrared Door Button E09/E10

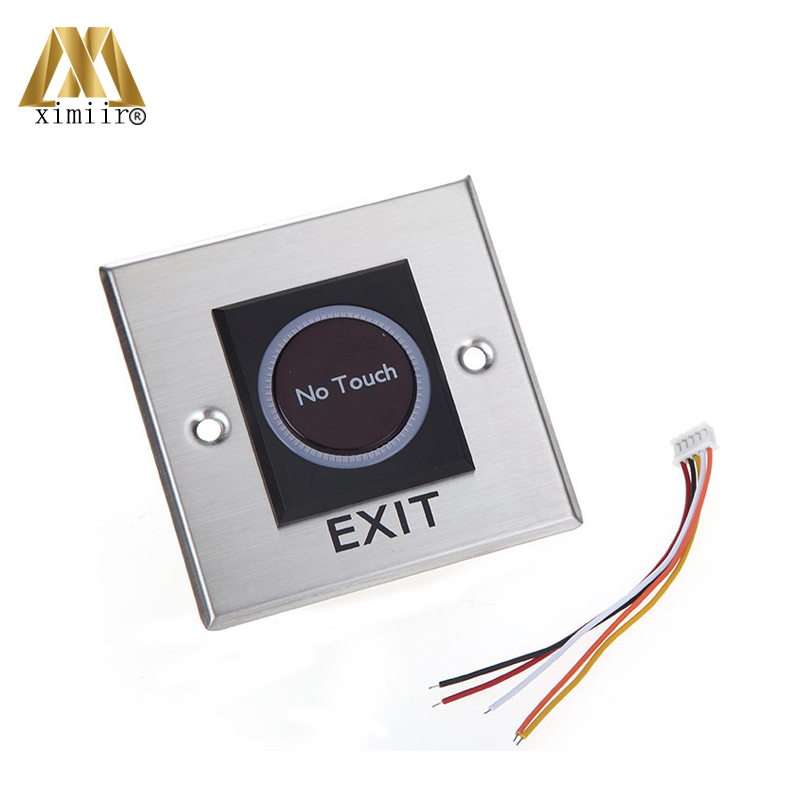

Model NO.：E09/E10
USD4.00-USD5.00
  • DeliveryFOB
  • Minimum order quantity1 piece
  • Supply Ability100000.0 piece / Month
  • Country of OriginShenzhen
  • Stock Time3-30 Days
    • Like Favorites
    Categories: Exit button
    • Max. Voltage:36V
    • Max. Current:3A
    • Weight:0.2kgs

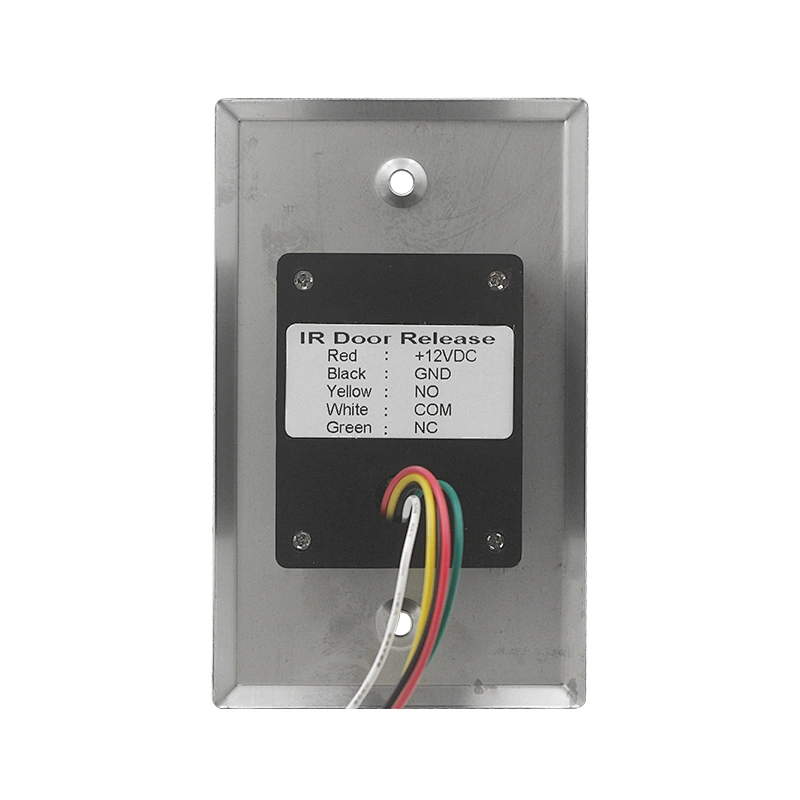

    • Output Contac:NONCCOM
    • Contact Rating:12-28V,3A
    • Mechanical Life:500000 tested
    • White LED indicator:Power OFF
    • Blue LED indicator:Power ON(standby)
    • Red LED indicator:Power ON(sensation)
    • Place of Origin:CN;GUA
    • Brand Name:XIMI

    Description

    Optical / Infrared Technology
    IP-55 Ingress Protection / SUS 304 Stainless steel Plate
    User friendly (Healthy protection)
    Free from contagious diseases spread

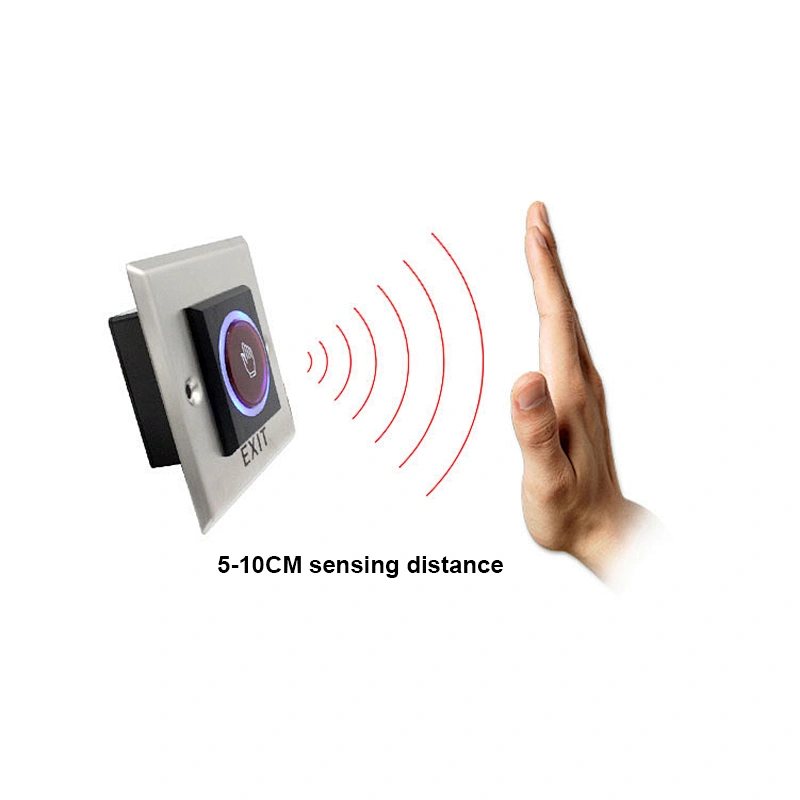

    Detection range: 0.1 ~ 10 cm
    Application: Gate/Door/Exit/Automation control
    High capacity of relay dry contact (3A/AC120V,DC30V)

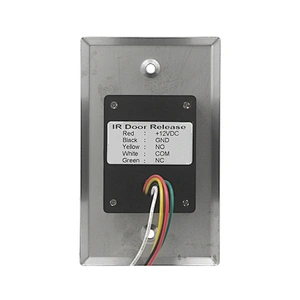

    Normally open/Normally close/Common relay output
    Twin led indicators for sensor standby or approached :
    (1) Sensor Standby: BLUE LED ON
    (2) Visitors whom approached to the sensor in 10 cm : RED LED ON

    Specifications

    Contact Rating: 3A/AC120V,DC30V
    Input Volt.: DC 12V
    Simple and clear for operation.
    Operation temperature range -20C -55C
    Life: 100,000 Times
    Durable stainless steel plate
    Dimension: 86x86x29(mm)
    Weight: 85g


    Images










    • Model Number：E09/E10
    • Brand Name：Ximiir
    • Place of Origin：China
