Hotel Card Lock Technical paramete | |
The number of registration cards | Unlimited |
Reading Time | <1s |
ReadingRange | ≤3cm |
Sensor Frequency | 125HKz(T5557/EM4305/RFID)~13.56MHz(Mifare 1) |
Working Voltage | DC 6V(4pcs 1.5V alkaline batteries) |
Static current | <15 uA |
Dynamic Current | <120mA |
Low Voltage Alarming | <4.8V(Can be still opened around 200times) |
Working Temperature | 0°C~80°C |
Storage Temperature | -20~85°C |
Working Humidity | 20%~90% |
Storage Humidity | 10~95%RH |
Read distance | 25mm |

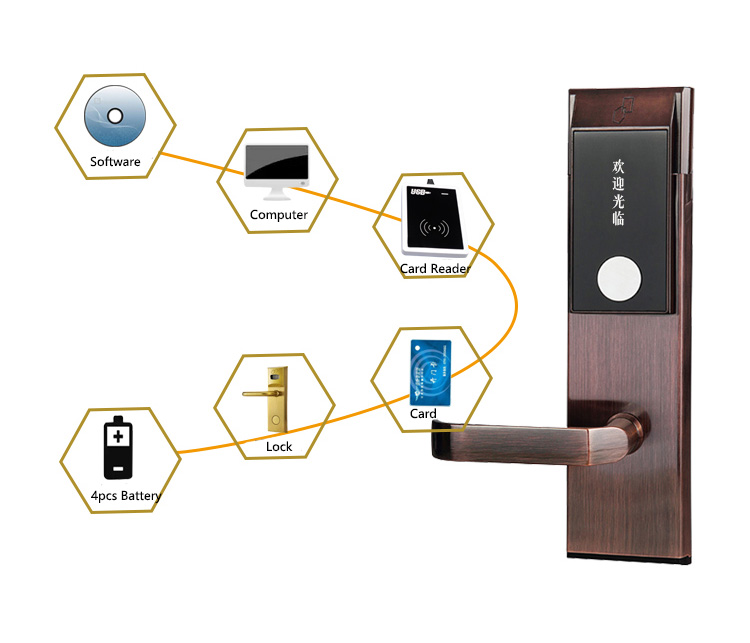

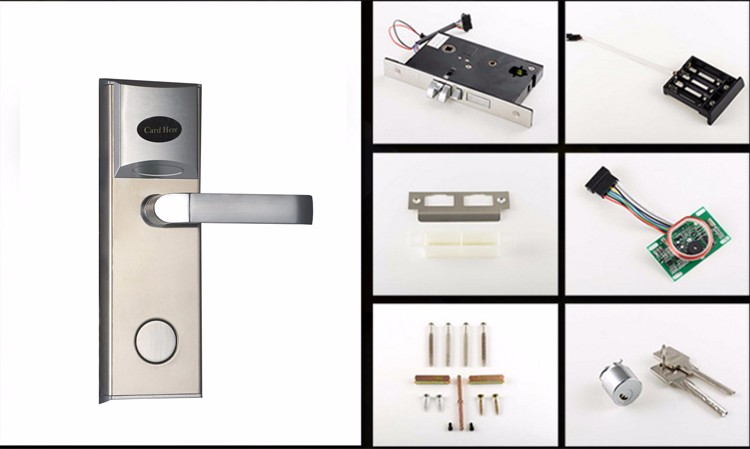

Hotel Lock System Compositon:
Normally,this system is composed of the bellowing parts:
1)Electronic Lock: To open the door. (Qty=Guest room) |

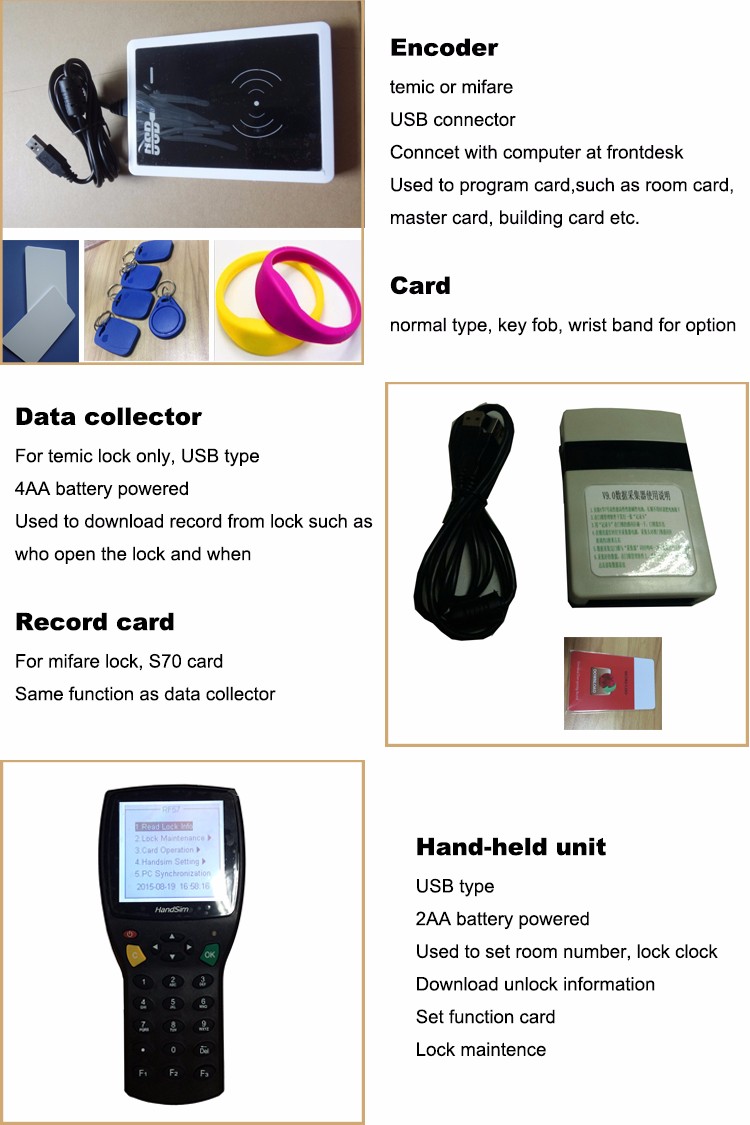

2)Card-reader: To issue/read all kinds of card; |
3)Power-saving Switch: To get power with card in guset room. (Qty=Guest room) |
4)Cards:To open the lock. Normally, the quantity is 3 times of guest room; |
5)Data collector:Collect unlock records. It is helpful for hotel to check the unlock record.Optional by customers; |
6)Hotel management software:Hotel door lock management system, free of charge.For setting the program the whole system.
|
