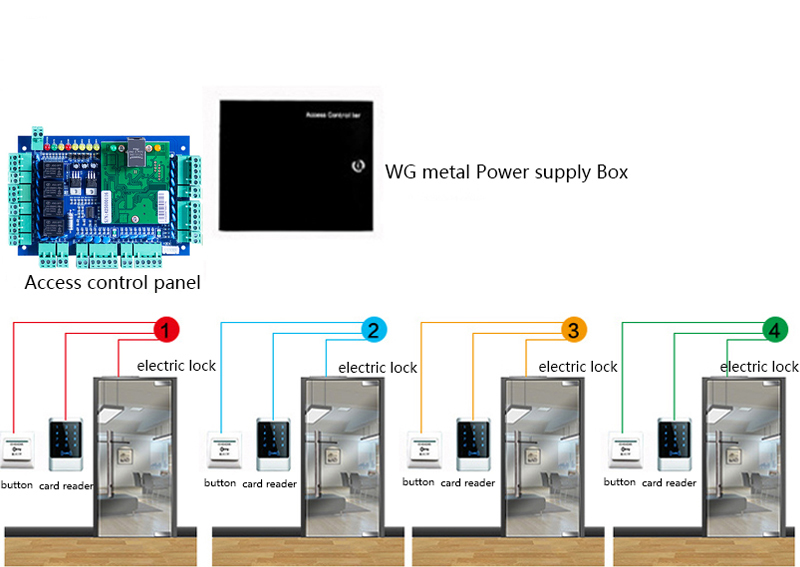

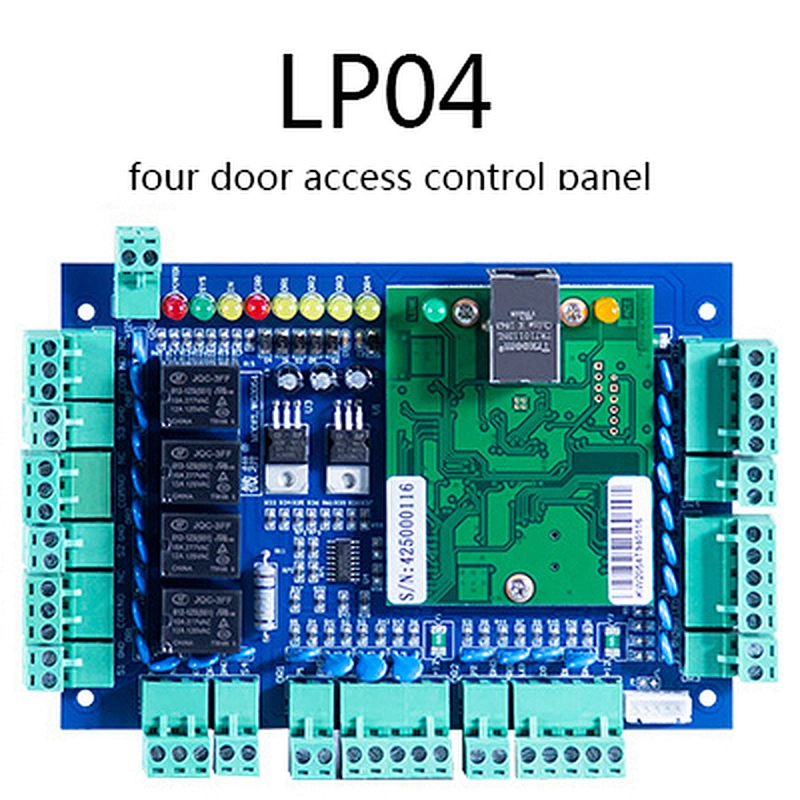

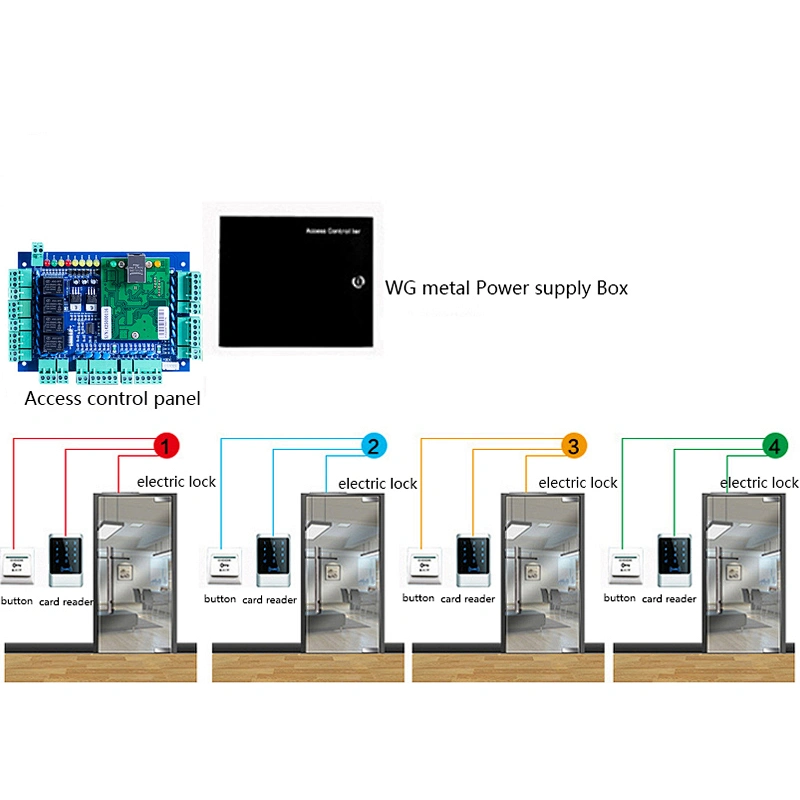

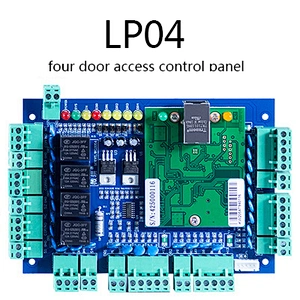

Control 2 doors, get in and out door by swiping card, or get in by swiping card and get out door by button.

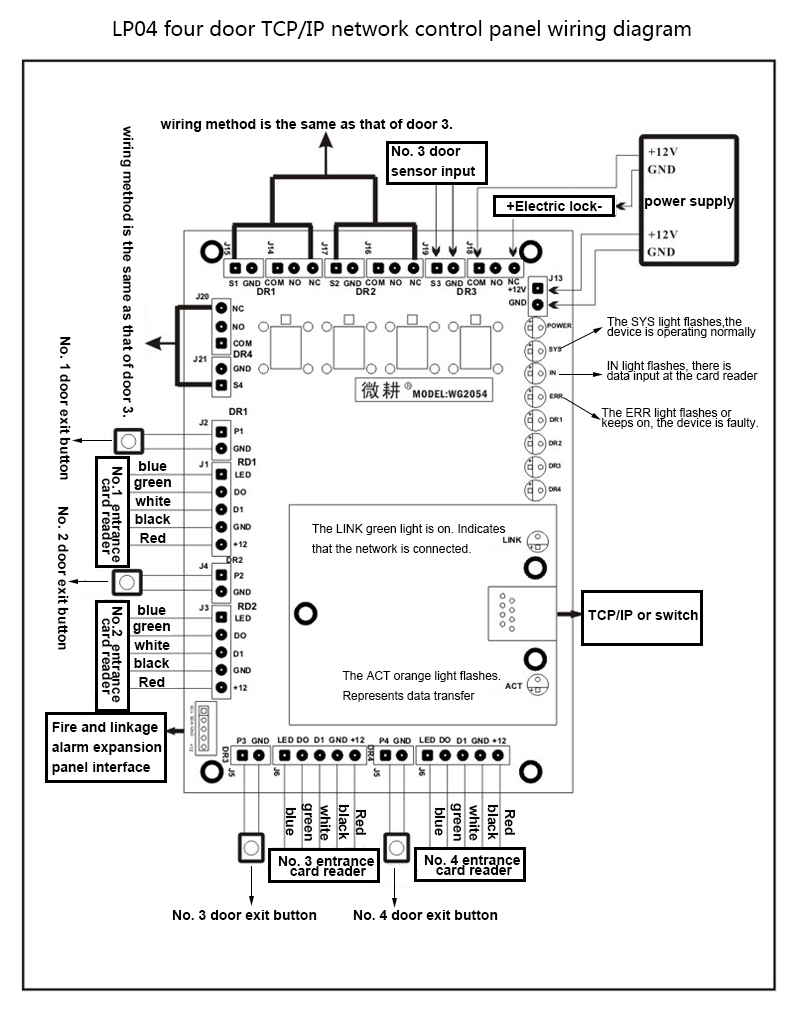

Input Format of Reader
Wiegand 26 (All card reader with compatible protocol, such as Motorola , HID ,EM,Mifare one etc)
Quantity of Readers
4
Door opening time extending setting
1-600 seconds(adjustable)

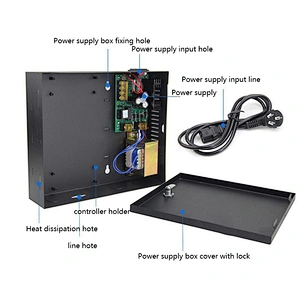

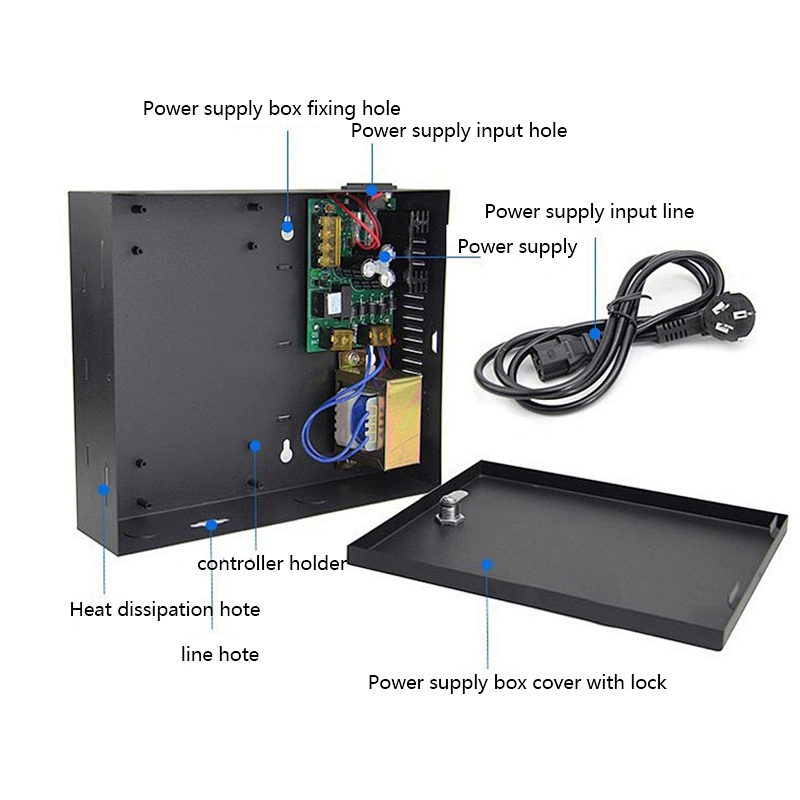

Power Supply
12VDC 4-7A

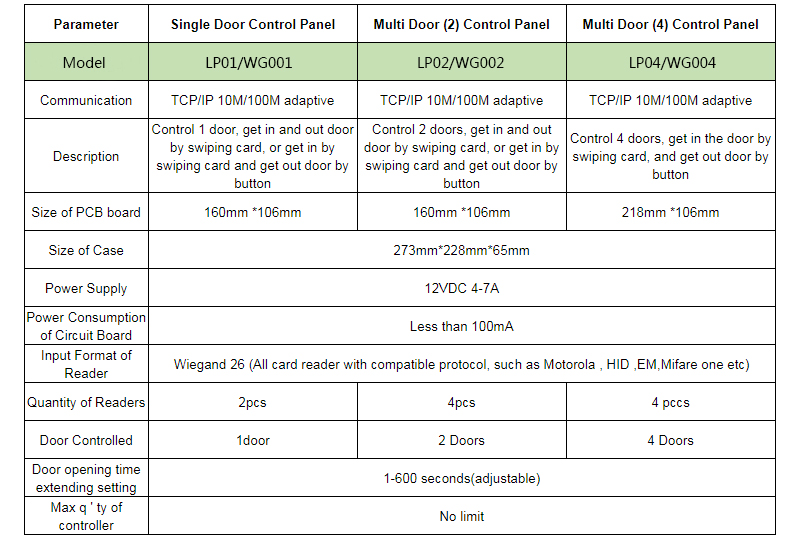

Product Specifications:

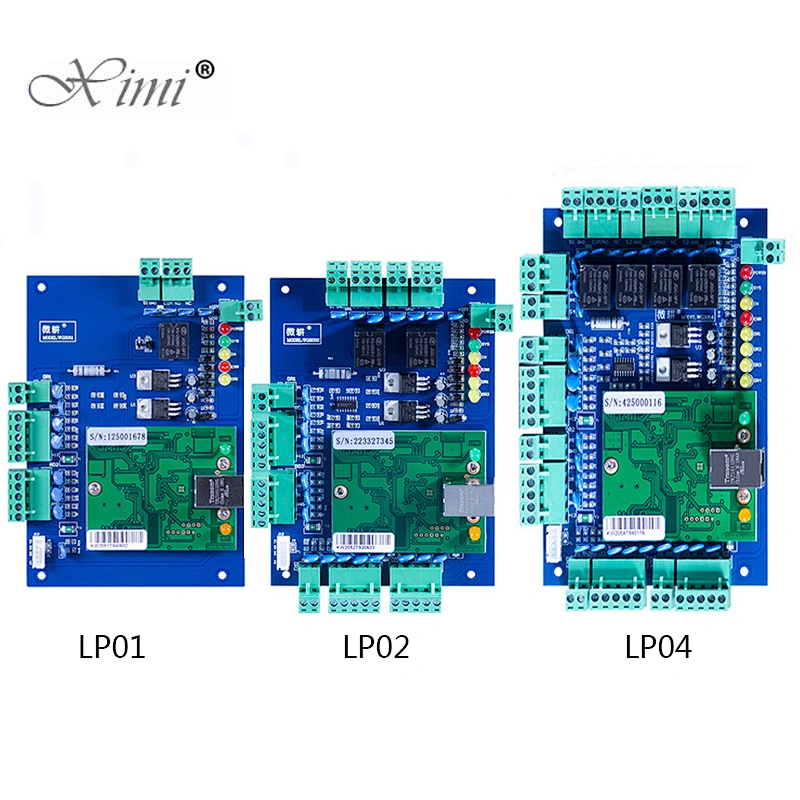

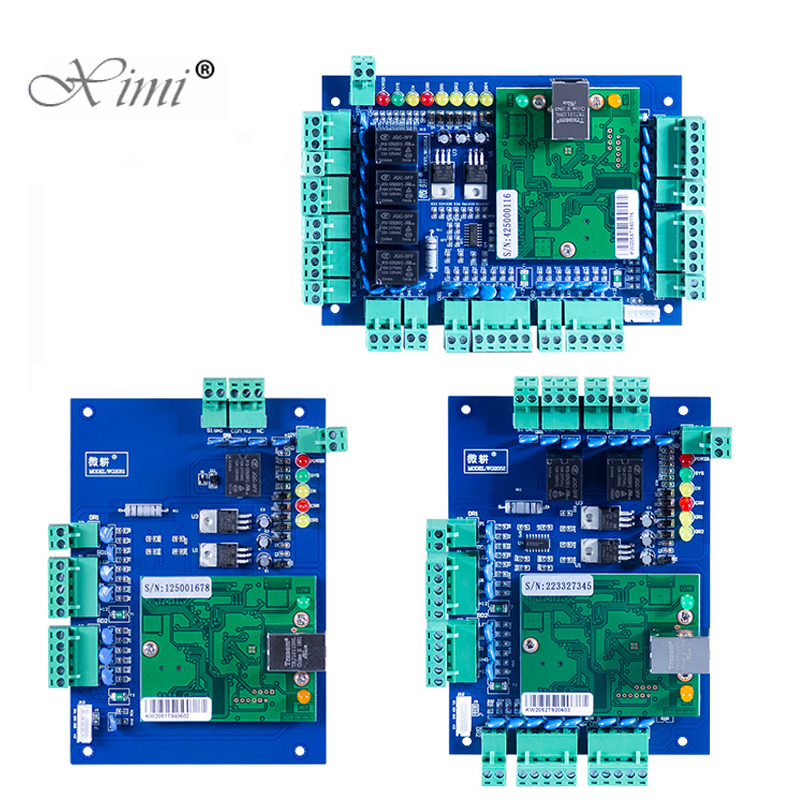

Communication: TCP/IP Software Supportable Database: Access & SQL Number of door controls: 1 door/2 doors/4 doors (Get in and out door by swiping card, or get in by swiping card and get out door by button) Number of readers: 2/ 4 readers Door opening time extension: Setting: 1 ~ 600 seconds (adjustable) Number of controllers: Unlimited (Remark: N denotes qty of computer serial port or qty of 485hub port, support 256pcs ports) Number of users: 20,000 users Number of event buffers (offline): 100,000 event buffers Power input: DC 12V, 4 ~ 7A Power consumption of the PCB: Less than 100mA Software supportable database: Access & SQL Input format of the reader: Wiegand 26 bit (All card readers with compatible protocol like HID, EM, M1 etc.) Max distance from reader to controller: 100m (default distance 80m) Alarm for long time door open, illegal entry, intimidate Fire and alarm linkage: If there is no connection to the expansion card, only has software interface alarm and control the computer speaker. When connected with expansion car Remote control module: Yes Anti-submarine back and anti-tail: Yes Multi-Card Open Door: Yes open long time at specific time: Yes Electronic Card: Yes Emergency Lock: Yes First card unlock: Yes Unlock based on internal and external validation: Yes

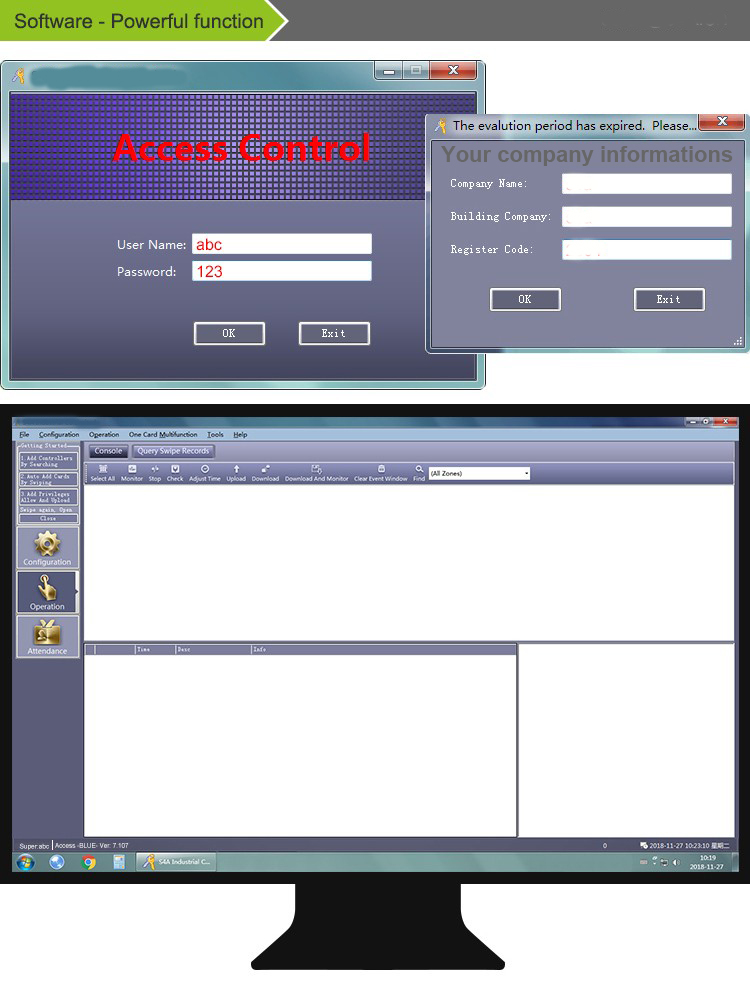

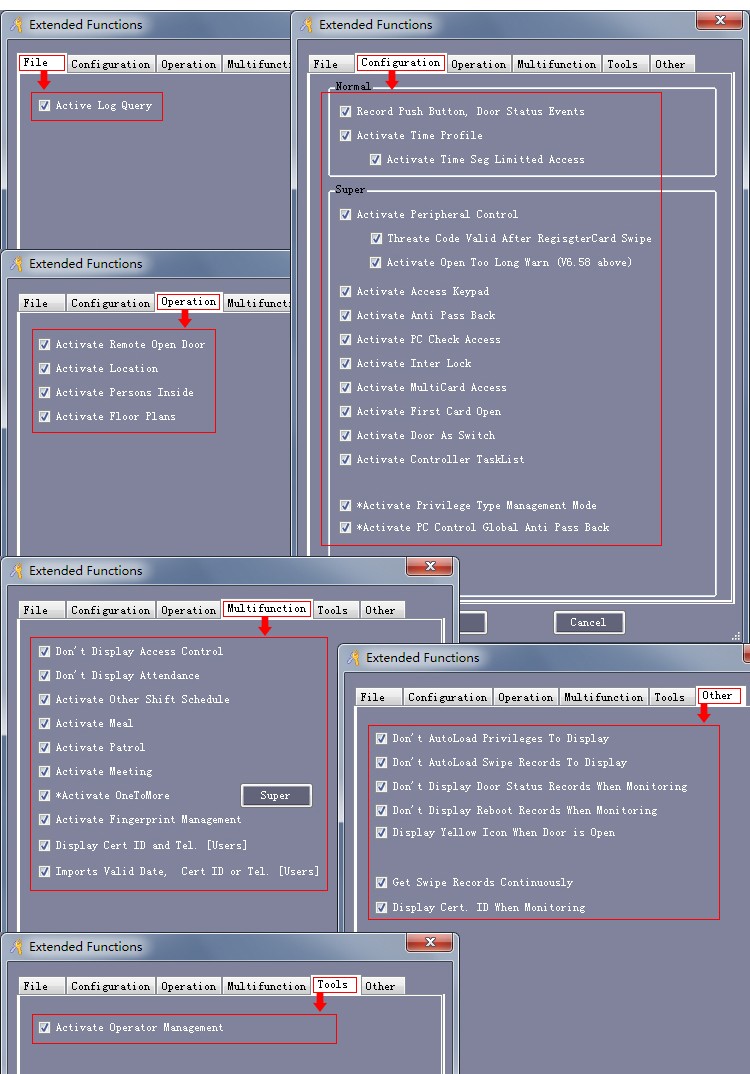

Free Software:
Operating system supported by software: Windows XP SP3 Windows 7 Windows Server 2003 SP2 Windows Server 2008 Windows Server 2008 R2
